UF9029 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

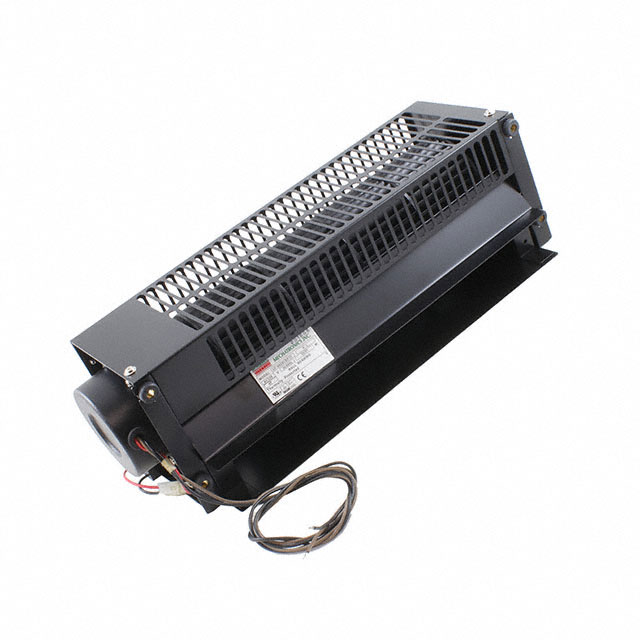

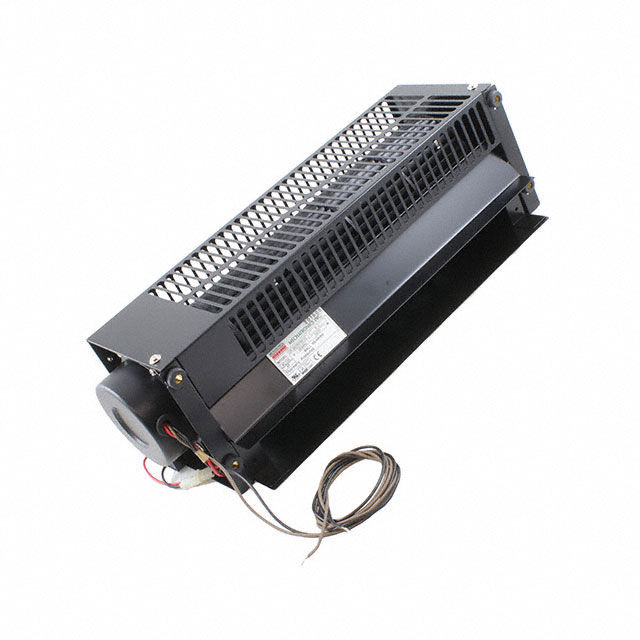

FAN BLWR CF 230VAC 420X150X130MM
| Part | Air Flow | Air Flow | Material - Blade [custom] | Material - Frame | Weight | Weight | Power (Watts) | Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension | Bearing Type | Noise | Voltage - Rated | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Width [y] | Fan Type | Static Pressure | Static Pressure | Approval Agency | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | 4.96 m³/min | 177.1 CFM | Aluminum | Steel | 6.6 lbs | 3 kg | 31 W | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 130 mm | 420 mm | Rectangular | Ball | 46 dB(A) | 230 VAC | 2 Wire Leads | -40 C | 70 °C | 70 °C | -40 °C | 1560 RPM | 125 mm | Blower Cross Flow | 32.4 Pa | 0.13 in H2O | CE cUL TUV UL | |
 Mechatronics Fan Group | 4.96 m³/min | 177.1 CFM | Aluminum | Steel | 6.6 lbs | 3 kg | 31 W | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 130 mm | 420 mm | Rectangular | Ball | 46 dB(A) | 120 VAC | 2 Wire Leads | -40 C | 70 °C | 70 °C | -40 °C | 1560 RPM | 125 mm | Blower Cross Flow | 32.4 Pa | 0.13 in H2O | CE cUL TUV UL | 270 mA |
