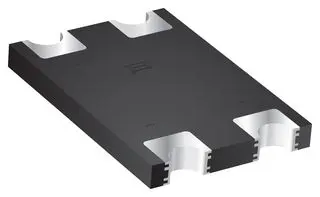

CD-MBL Series

Catalog

BRIDGE RECT 1PHASE 600V 1A

Part	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Current - Reverse Leakage @ Vr	Diode Type	Technology	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - Peak Reverse (Max)
Bourns Inc. CD-MBL106SL	950 mV	1 A	600 V	5 µA	Single Phase	Standard	Surface Mount	Chip Concave Terminals	175 °C	-55 °C
Bourns Inc. CD-MBL110S		1 A	1 kV	5 µA	Single Phase	Standard	Surface Mount	Chip Concave Terminals	175 °C	-55 C	1 V
Bourns Inc. CD-MBL102S		1 A		5 ÁA	Single Phase	Standard	Surface Mount	Chip Concave Terminals	175 °C	-55 °C	1 V	200 V
Bourns Inc. CD-MBL108SL	950 mV	1 A		5 µA	Single Phase	Standard	Surface Mount	Chip Concave Terminals	175 °C	-55 °C		800 V
Bourns Inc. CD-MBL208S		2 A		5 µA	Single Phase	Standard	Surface Mount	Chip Concave Terminals	175 °C	-55 °C	1 V	800 V
Bourns Inc. CD-MBL110SL	950 mV	1 A	1 kV	5 µA	Single Phase	Standard	Surface Mount	Chip Concave Terminals	175 °C	-55 °C
Bourns Inc. CD-MBL210SL	960 mV	2 A	1 kV	5 µA	Single Phase	Standard	Surface Mount	Chip Concave Terminals	175 °C	-55 °C
