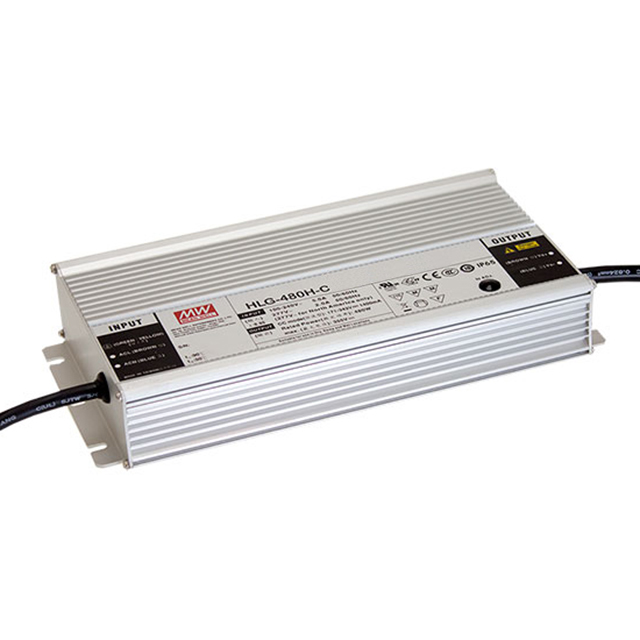

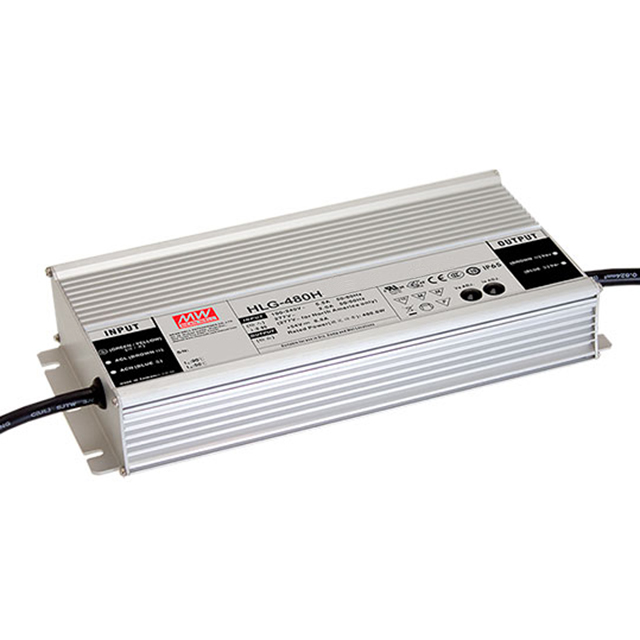

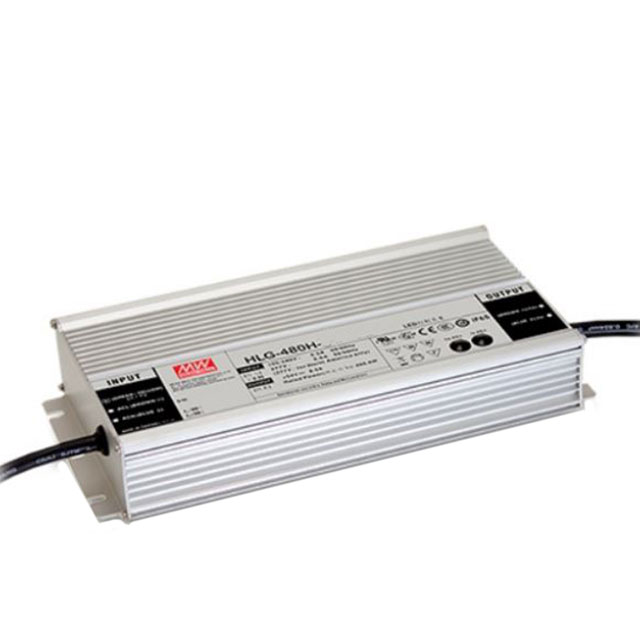

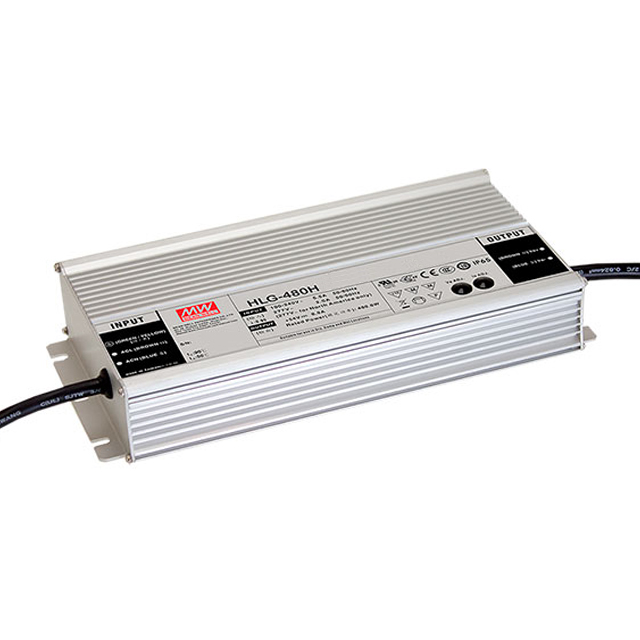

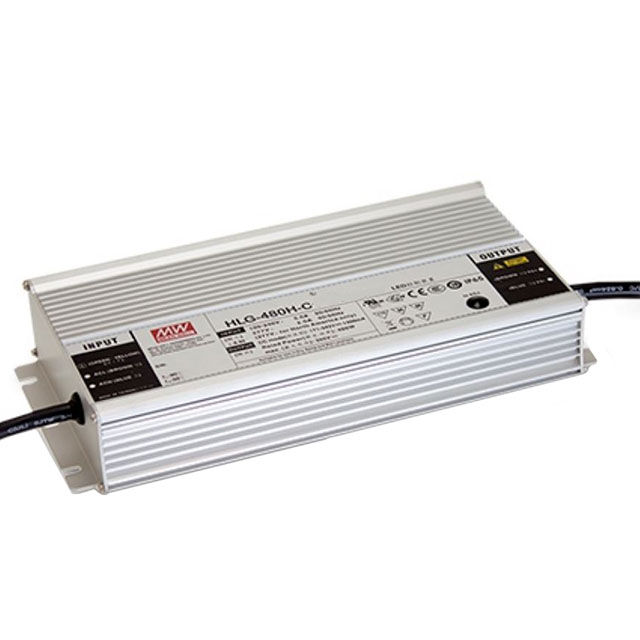

HLG-480H Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DVR CC/CV AC/DC 18-36V 13.3A
| Part | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Termination Style | Approval Agency | Current - Output (Max) [Max] | Features | Voltage - Output [Min] | Voltage - Output [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Topology | Power (Watts) | Voltage - Input (Max) [Max] | Efficiency | Number of Outputs | Voltage - Input (Min) [Min] | Voltage - Isolation | Ratings | Dimming | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | Wire Leads | CB CCC CE cURus ENEC | 13.3 A | OCP OTP OVP SCP | 18 V | 36 V | 90 °C | -40 C | Constant Current Voltage | AC DC Converter | 479 W | 305 VAC | 95.5 % | 1 | 90 VAC | 3750 VDC | IP67 | ||
 MEAN WELL USA Inc. | Chassis Mount | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | Wire Leads | CB CCC CE cURus ENEC RCM | 2.8 A | OTP OVP SCP | 85 V | 171 V | 90 °C | -40 C | Constant Current | AC DC Converter | 479 W | 305 VAC | 95 % | 1 | 90 VAC | 3750 VDC | IP67 | ||
 MEAN WELL USA Inc. | Chassis Mount | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | Wire Leads | CB CCC CE cURus ENEC | 2.8 A | OTP OVP SCP | 85 V | 171 V | 90 °C | -40 C | Constant Current | AC DC Converter | 479 W | 305 VAC | 95 % | 1 | 90 VAC | 3750 VDC | IP65 | ||
 MEAN WELL USA Inc. | Chassis Mount | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | Wire Leads | CB CCC CE cURus ENEC | 11.4 A | OCP OTP OVP SCP | 21 V | 42 V | 90 °C | -40 C | Constant Current Voltage | AC DC Converter | 479 W | 305 VAC | 95.5 % | 1 | 90 VAC | 3750 VDC | IP67 | Analog PWM | |
MEAN WELL USA Inc. | Chassis Mount | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | Wire Leads | CB CCC CE cURus ENEC | 1.75 A | OTP OVP SCP | 137 V | 274 V | 80 °C | -40 C | Constant Current | AC DC Converter | 480 W | 305 VAC | 95 % | 1 | 90 VAC | 3750 VDC | IP67 | Analog PWM | |
MEAN WELL USA Inc. | Chassis Mount | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | Wire Leads | CB CCC CE cURus ENEC RCM | 1.4 A | OTP OVP SCP | 171 V | 343 V | 90 °C | -40 C | Constant Current | AC DC Converter | 480 W | 305 VAC | 95 % | 1 | 90 VAC | 3750 VDC | IP67 | ||
 MEAN WELL USA Inc. | Chassis Mount | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | Wire Leads | CB CCC CE cURus EAC ENEC KC PSE RCM | 10 A | OCP OTP OVP SCP | 90 °C | -40 C | Constant Current Voltage | AC DC Converter | 480 W | 305 VAC | 95 % | 1 | 90 VAC | 3750 VDC | IP65 | 48 V | |||
MEAN WELL USA Inc. | Chassis Mount | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | Wire Leads | CB CCC CE cURus EAC ENEC KC PSE RCM | 20 A | OCP OTP OVP SCP | 90 °C | -40 C | Constant Current Voltage | AC DC Converter | 480 W | 305 VAC | 94.5 % | 1 | 90 VAC | 3750 VDC | IP67 | 24 V | |||
MEAN WELL USA Inc. | Chassis Mount | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | Wire Leads | CB CCC CE cURus EAC ENEC KC PSE RCM | 16 A | OCP OTP OVP SCP | 90 °C | -40 C | Constant Current Voltage | AC DC Converter | 480 W | 305 VAC | 95 % | 1 | 90 VAC | 3750 VDC | IP65 | 30 V | |||
 MEAN WELL USA Inc. | Chassis Mount | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | Wire Leads | CB CCC CE cURus ENEC | 13.3 A | OCP OTP OVP SCP | 30.6 V | 37.8 V | 90 °C | -40 C | Constant Current Voltage | AC DC Converter | 479 W | 305 VAC | 95.5 % | 1 | 90 VAC | 3750 VDC | IP65 |
