501646 Series

Manufacturer: Molex

Catalog

2.00MM PITCH, IGRID RECEPTACLE CRIMP HOUSING, DUAL ROW, POSITIVE LOCK, 38 CIRCUITS, NATURAL

Part	Note	Color	Number of Rows [custom]	Connector Type	Fastening Type	Number of Positions	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Mounting Type	Contact Type	Insulation Material	Pitch [x]	Pitch [x]	Number of Rows
Molex 5016463800	Contacts Not Included	Natural	2	Receptacle	Latch Lock	38	Crimp	-40 C	105 ░C	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Nylon 6/6 Polyamide (PA66)	0.079 in	2 mm
Molex 5016463206		Green	2	Receptacle	Latch Lock		Crimp	-40 C	105 ░C	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Nylon Polyamide (PA)	0.079 in	2 mm
Molex 5016461601		Black	2	Receptacle	Latch Lock	16	Crimp	-40 C	105 ░C	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Nylon 6/6 Polyamide (PA66)	0.079 in	2 mm
Molex 5016462406		Green	2	Receptacle	Latch Lock	24	Crimp	-40 C	105 ░C	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Nylon Polyamide (PA)	0.079 in	2 mm
Molex 5016461401		Black	2	Receptacle	Latch Lock	14	Crimp	-40 C	105 ░C	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Nylon Polyamide (PA)	0.079 in	2 mm

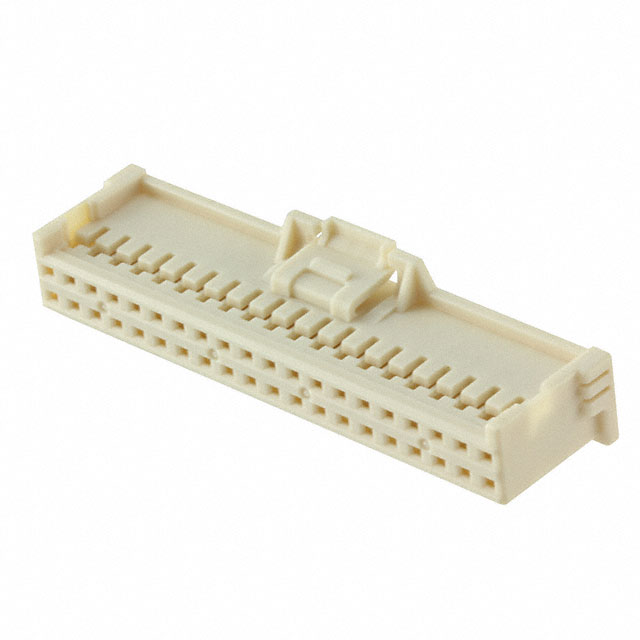

Molex 5016464000	Contacts Not Included	Natural	2	Receptacle	Latch Lock	40	Crimp	-40 C	105 ░C	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Nylon 6/6 Polyamide (PA66)	0.079 in	2 mm
Molex 5016463004		Blue	2	Receptacle	Latch Lock	30	Crimp	-40 C	105 ░C	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Nylon Polyamide (PA)	0.079 in	2 mm
Molex 5016462801		Black	2	Receptacle	Latch Lock	28	Crimp	-40 C	105 ░C	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Nylon Polyamide (PA)	0.079 in	2 mm

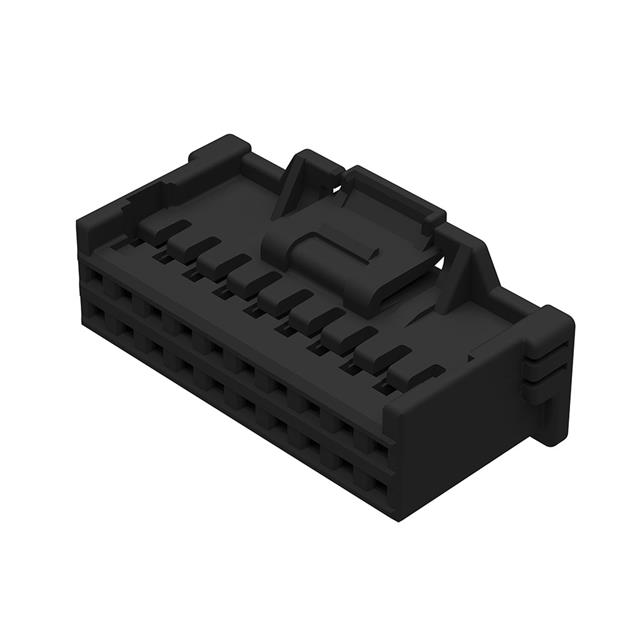

Molex 5016462401		Black		Receptacle	Latch Lock	24	Crimp	-40 C	105 ░C			Free Hanging (In-Line)	Female Socket	Nylon Polyamide (PA)	0.079 in	2 mm	1

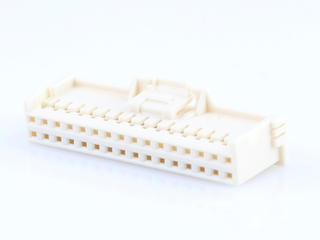

Molex 5016463200	Contacts Not Included	Natural	2	Receptacle	Latch Lock		Crimp	-40 C	105 ░C	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Nylon 6/6 Polyamide (PA66)	0.079 in	2 mm
