Han HPR Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY POWER CONNECTORS PROTECTION COVER HAN HPR TOGGLE LCK
| Part | Accessory Type | Ratings | For Use With/Related Products | Specifications | Housing Material | Housing Color | Housing Finish | Size | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Style | Thread Size | Lock Location | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Gender | Frame Type | Material | Size / Dimension [z] | Size / Dimension [y] | Size | Contact Material | Type | Pin or Socket | Wire Gauge [Max] | Wire Gauge [Min] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Cover with Retaining Cord | IP65 - Dust Tight Water Resistant | Han® 24B Bases | Screw Locks | |||||||||||||||||||||||||||||
 HARTING | Aluminum Die Cast | Black | Powder Coated | 24 B | 192 mm | 80 mm | 90 mm | 7.559 " | 3.543 " | 3.15 in | Side Entry Triple | M25 | Screw Locks on Hood | Hood - 90° | 125 °C | -40 C | |||||||||||||||||
 HARTING | Locking Screw | Han® HPR Housings | |||||||||||||||||||||||||||||||
 HARTING | 24 B | 125 °C | -40 C | 1 Frame 1 pc | Non-Gendered | Mounting Frame | Metal | ||||||||||||||||||||||||||

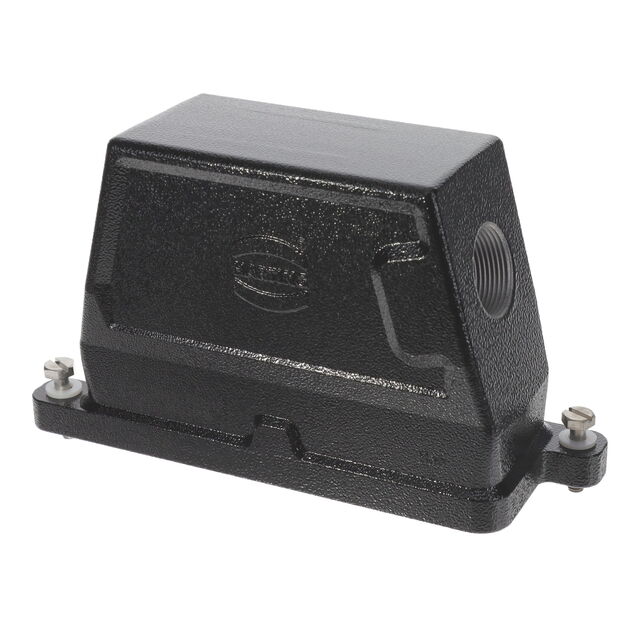

 HARTING | Aluminum Die Cast | Black | Powder Coated | 145 mm | 5.709 " | 3.957 in | 2.283 in | Side Entry | M25 | Screw Locks on Hood | Hood | 125 °C | -40 C | 100.5 mm | 58 mm | 10B | |||||||||||||||||
 HARTING | Nickel Chromium Aluminum | Stamped | Pin | 24 AWG | 19.5 AWG | Crimp | |||||||||||||||||||||||||||
 HARTING | Aluminum Die Cast | Black | Powder Coated | 145 mm | 5.709 " | 3.957 in | 2.283 in | Side Entry | PG21 | Screw Locks on Hood | Hood | 125 °C | -40 C | 100.5 mm | 58 mm | 10B | |||||||||||||||||
 HARTING | Zinc Die Cast | Black | Chromate | 3 A | 45.4 mm | 1.787 in | 1.354 in | 1.083 in | Side Entry | Screw Locks on Hood | Base - Panel Mount 90° | 125 °C | -40 C | 34.4 mm | 27.5 mm | ||||||||||||||||||
 HARTING | Aluminum Die Cast | Black | Powder Coated | 145 mm | 5.709 " | 3.957 in | 2.283 in | Bottom Entry | Screw Locks on Hood | Hood | 125 °C | -40 C | 100.5 mm | 58 mm | 10B | ||||||||||||||||||
 HARTING | Aluminum Die Cast | Black | Powder Coated | 24 B | 192 mm | 7.559 " | 4.331 in | 2.283 in | Top Entry Dual | M25 | Screw Locks on Hood | Hood | 125 °C | -40 C | 110 mm | 58 mm |
