DETN02 Series

Catalog

DC/DC CONVERTER

Part	Voltage - Output 2	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Efficiency	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Applications	Type	Mounting Type	Current - Output (Max)	Current - Output (Max)	Package / Case	Voltage - Output 1
MEAN WELL USA Inc. DETN02L-15	-15 V	5.5 V	-40 C	100 °C	2	81 %	2 W	4.5 V	3000 V	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	CE EAC UKCA	ITE (Commercial)	Isolated Module	Surface Mount	67 mA	67 mA	12-SMD Module 10 Leads	12 V
MEAN WELL USA Inc. DETN02N-15	-15 V	26.4 V	-40 C	100 °C	2	80 %	2 W	21.6 V	3000 V	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	CE EAC UKCA	ITE (Commercial)	Isolated Module	Surface Mount	67 mA	67 mA	12-SMD Module 10 Leads	12 V
MEAN WELL USA Inc. DETN02M-15	-15 V	13.2 V	-40 C	100 °C	2	80 %	2 W	10.8 V	3000 V	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	CE EAC UKCA	ITE (Commercial)	Isolated Module	Surface Mount	67 mA	67 mA	12-SMD Module 10 Leads	12 V

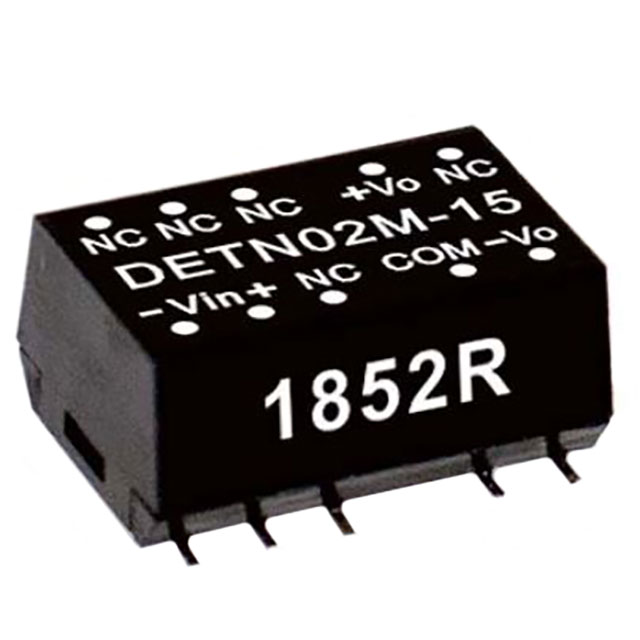

MEAN WELL USA Inc. DETN02L-05	-5 V	5.5 V	-40 C	100 °C	2	80 %	2 W	4.5 V	3000 V	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	CE EAC UKCA	ITE (Commercial)	Isolated Module	Surface Mount			12-SMD Module 10 Leads	5 V
MEAN WELL USA Inc. DETN02N-05	-5 V	26.4 V	-40 C	100 °C	2	80 %	2 W	21.6 V	3000 V	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	CE EAC UKCA	ITE (Commercial)	Isolated Module	Surface Mount			12-SMD Module 10 Leads	12 V
MEAN WELL USA Inc. DETN02L-12	-12 V	5.5 V	-40 C	100 °C	2	80 %	2 W	4.5 V	3000 V	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	CE EAC UKCA	ITE (Commercial)	Isolated Module	Surface Mount	84 mA	84 mA	12-SMD Module 10 Leads	12 V
