DSM7UA701 Series

Catalog

DISPLAY 7-SEG 0.7" SGL RED 10SMD

Part	Display Type	Millicandela Rating	Power Dissipation (Max) [Max]	Number of Characters	Current - Test	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Common Pin	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Wavelength - Peak	Power Dissipation (Max)

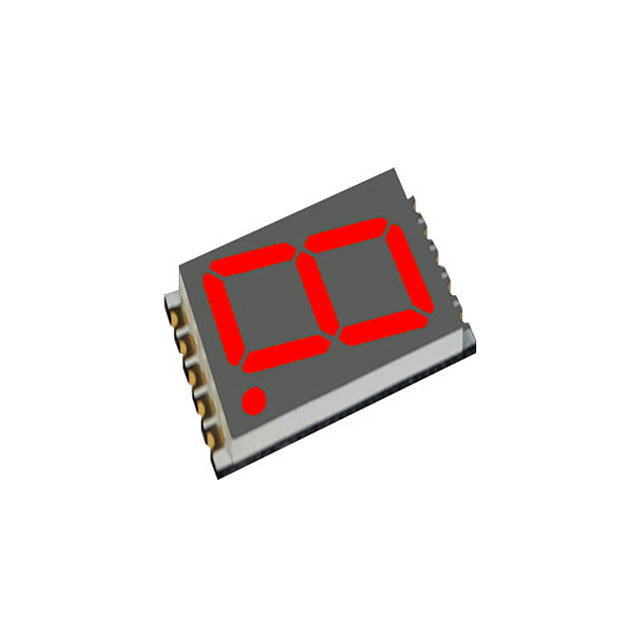

Visual Communications Company - VCC DSM7UA70101T	7-Segment	53 mcd	70 mW	1	20 mA	17.78 mm	0.7 in	2 V	Common Anode	Red	0.091 in	14.8 mm	2.3 mm	24 mm	0.945 in	0.583 in	10-SMD No Lead	632 nm
Visual Communications Company - VCC DSM7UA70105T	7-Segment	525 mcd		1	20 mA	17.78 mm	0.7 in	2.8 V	Common Anode	Green	0.091 in	14.8 mm	2.3 mm	24 mm	0.945 in	0.583 in	10-SMD No Lead		120 mW
Visual Communications Company - VCC DSM7UA70101	7-Segment	53 mcd	70 mW	1	20 mA	17.78 mm	0.7 in	2 V	Common Anode	Red	0.091 in	14.8 mm	2.3 mm	24 mm	0.945 in	0.583 in	10-SMD No Lead	632 nm
Visual Communications Company - VCC DSM7UA70105	7-Segment	525 mcd		1	20 mA	17.78 mm	0.7 in	2.8 V	Common Anode	Green	0.091 in	14.8 mm	2.3 mm	24 mm	0.945 in	0.583 in	10-SMD No Lead		120 mW
