SQA401 Series

Catalog

MOSFET P-CH 20V 3.75A PPAK SC70

Part	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max) [Max]	Technology	Mounting Type	Package / Case	Qualification	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drain to Source Voltage (Vdss)	Supplier Device Package	FET Type	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs

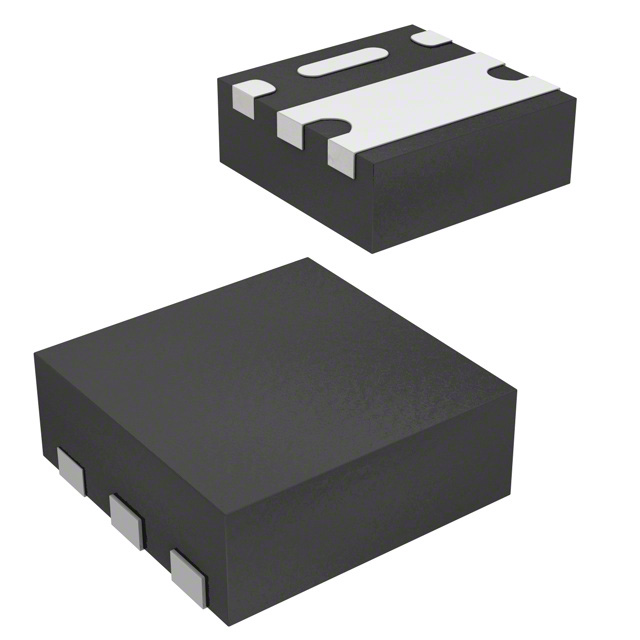

Vishay General Semiconductor - Diodes Division SQA401EJ-T1_GE3	2.5 V 4.5 V	13.6 W	MOSFET (Metal Oxide)	Surface Mount	PowerPAK® SC-70-6	AEC-Q101	Automotive	-55 °C	175 ░C	3.75 A	12 V	1.5 V	330 pF	20 V	PowerPAK® SC-70-6 Single	P-Channel	125 mOhm	5.5 nC
Vishay General Semiconductor - Diodes Division SQA401EEJ-T1_GE3	2.5 V 4.5 V	13.6 W	MOSFET (Metal Oxide)	Surface Mount	PowerPAK® SC-70-6	AEC-Q101	Automotive	-55 °C	175 ░C	2.68 A	8 V	1.5 V		20 V	PowerPAK® SC-70-6	P-Channel			5.3 nC	375 pF	113 mOhm
