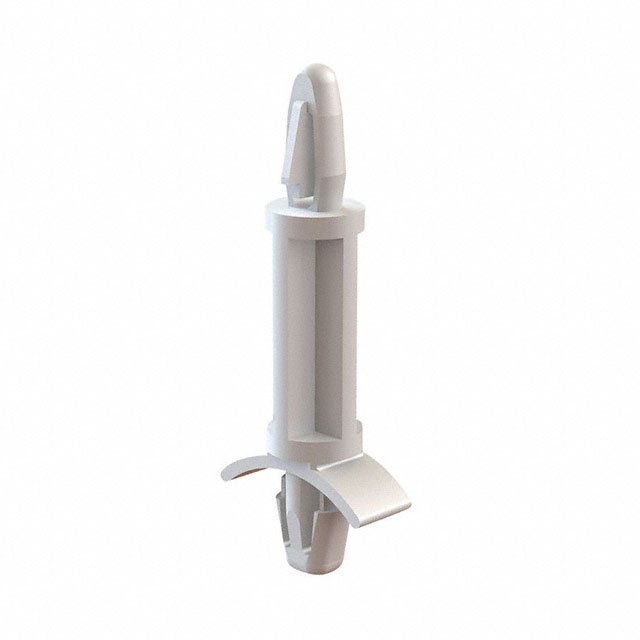

LCBS-22 Series
Manufacturer: Essentra Components
Beta
⌘K
BRD SPT SNAP LOCK NYLON 1 3/8"
| Part | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Max] | Length - Overall | Length - Overall | Mounting Type | Features | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Material | Holding Type | Between Board Height | Between Board Height | Between Board Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 0.79 mm | 0.031 in | 0.078 " | 1.98 mm | 2.106 in | 53.5 mm | Snap Lock | Winged | 1.57 mm | 0.062 in | 0.0625 in | 0.1875 in | 0.187 in | 4.75 mm | 3.99 mm | 0.157 " | Nylon | Snap Lock | 34.93 mm | 1 3/8 | 1.375 in |
 Essentra Components | 1.4 mm | 0.055 in | 0.08 in | 2.03 mm | 2.102 " | 53.4 mm | Snap Lock | High Temperature Winged | 1.57 mm | 0.062 in | 0.0625 in | 0.1875 in | 0.187 in | 4.75 mm | 3.99 mm | 0.157 " | Nylon | Snap Lock | 34.93 mm | 1 3/8 | 1.375 in |
