PYB15 Series

Manufacturer: CUI Inc.

Catalog

DC/DC CONVERTER +/-5V 15W

Part	Approval Agency	Power (Watts)	Number of Outputs	Efficiency	Current - Output (Max)	Mounting Type	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Input Type	Current - Output (Max) [Max]	Standard Number	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Features	Package / Case	Applications	Voltage - Isolation	Control Features

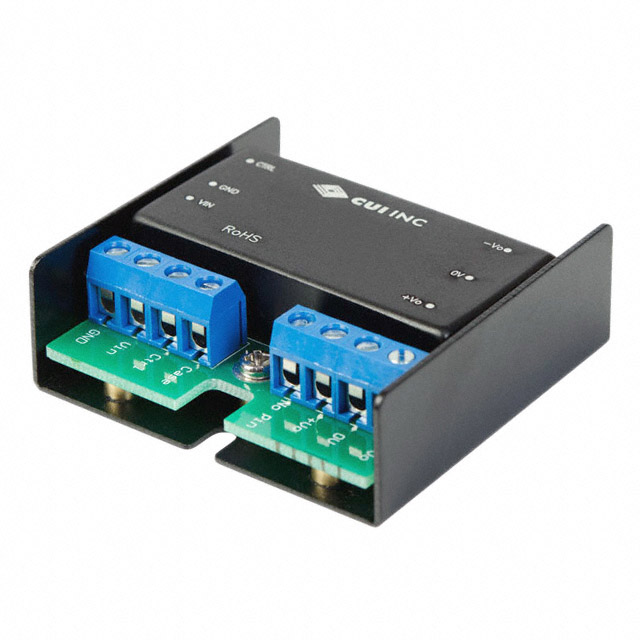

CUI Inc. PYB15-Q48-D5-U	EN IEC	15 W	2	86 %	1.5 A	Chassis Mount	Enclosed	19.1 mm	0.75 "	54.9 mm	2.06 in	2.16 in	52.3 mm	85 °C	-40 C	-5 V	5 V	18 V	75 V

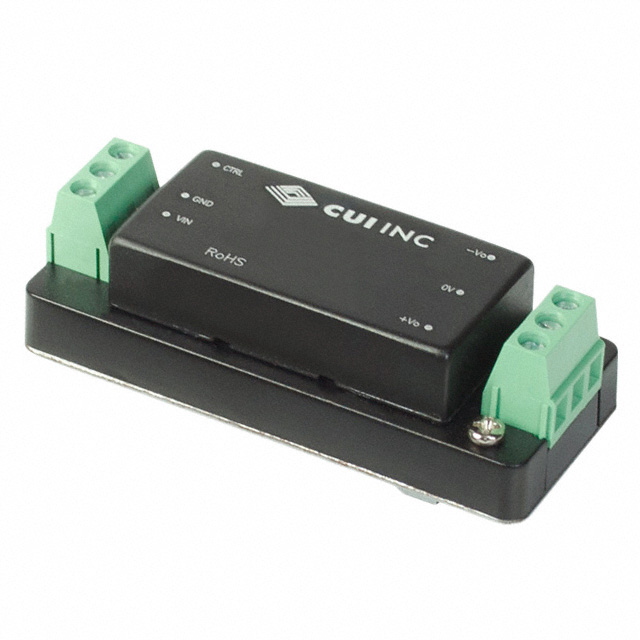

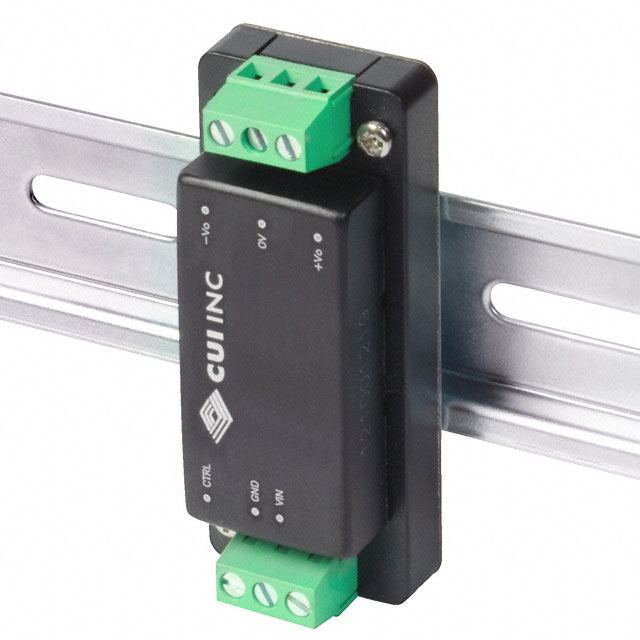

CUI Inc. PYB15-Q48-S12-DIN	EN	15 W	1	86 %				22.2 mm	0.87 in	76 mm	1.24 in	2.99 in	31.5 mm	85 °C	-40 C		12 V			DC	1.25 A	55024 55032	18 V	75 V

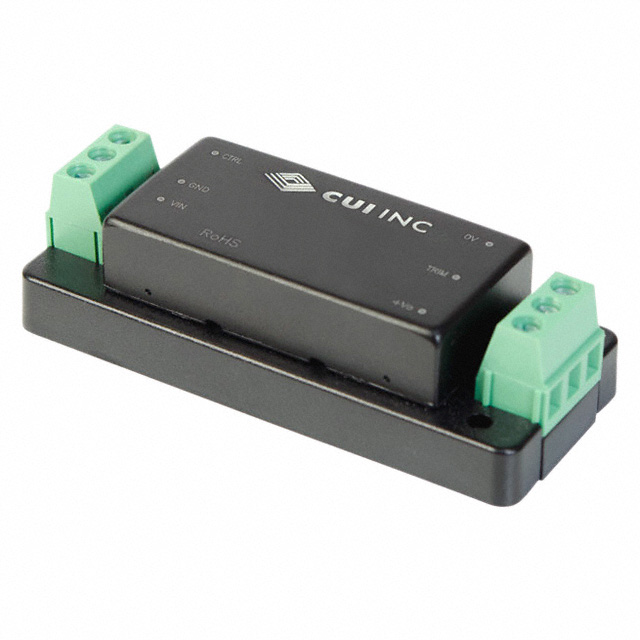

CUI Inc. PYB15-Q48-D12-T	EN	15 W	2	88 %		Chassis Mount	Enclosed	21.2 mm	0.84 in	76 mm	1.24 in	2.99 in	31.5 mm	85 °C	-40 C	-12 V	12 V	18 V	75 V		625 mA	55024 55032			625 mA
CUI Inc. PYB15-Q24-D12-U	EN IEC	15 W	2	88 %		Chassis Mount	Enclosed	19.1 mm	0.75 "	54.9 mm	2.06 in	2.16 in	52.3 mm	85 °C	-40 C	-12 V	12 V	9 V	36 V		625 mA				625 mA
CUI Inc. PYB15-Q24-S15-DIN	EN	15 W	1	87 %				22.2 mm	0.87 in	76 mm	1.24 in	2.99 in	31.5 mm	85 °C	-40 C		15 V			DC	1 A	55024 55032	9 V	36 V
CUI Inc. PYB15-Q24-S12-U	EN IEC	15 W	1	89 %		Chassis Mount	Enclosed	19.1 mm	0.75 "	54.9 mm	2.06 in	2.16 in	52.3 mm	85 °C	-40 C		12 V	9 V	36 V		1.25 A

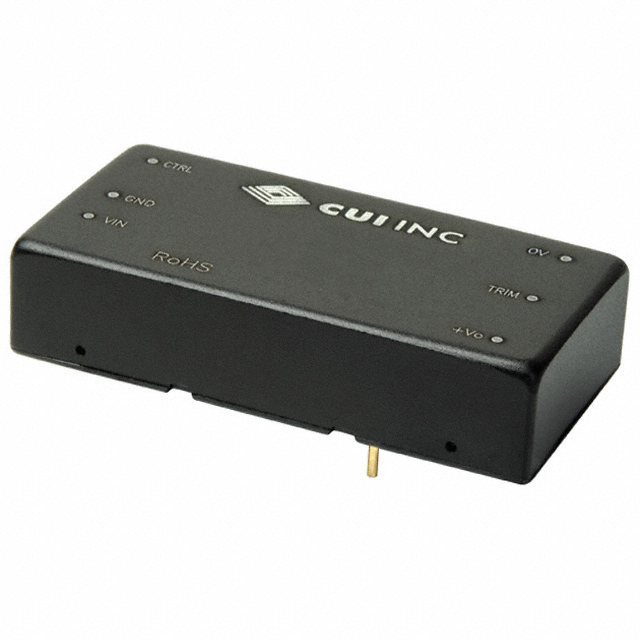

CUI Inc. PYB15-Q24-S12	EN	15 W	1	89 %		Through Hole	Isolated Module	11.8 mm	0.47 "	50.8 mm	1 "	2 in	25.4 mm	85 °C	-40 C		12 V	9 V	36 V		1.25 A	55024				OCP OVP SCP UVLO	6-DIP Module	ITE (Commercial)	1.5 kV	Active High Enable
CUI Inc. PYB15-Q48-S3-U	EN IEC	15 W	1	87 %		Chassis Mount	Enclosed	19.1 mm	0.75 "	54.9 mm	2.06 in	2.16 in	52.3 mm	85 °C	-40 C		3.3 V	18 V	75 V		4 A
CUI Inc. PYB15-Q24-D12	EN	15 W	2	88 %		Through Hole	Isolated Module	11.8 mm	0.47 "	50.8 mm	1 "	2 in	25.4 mm	85 °C	-40 C	-12 V	12 V	9 V	36 V		625 mA	55024			625 mA	OCP OVP SCP UVLO	6-DIP Module	ITE (Commercial)	1.5 kV	Active High Enable
CUI Inc. PYB15-Q24-D5-U	EN IEC	15 W	2	86 %	1.5 A	Chassis Mount	Enclosed	19.1 mm	0.75 "	54.9 mm	2.06 in	2.16 in	52.3 mm	85 °C	-40 C	-5 V	5 V	9 V	36 V
