2001-140 Series

Catalog

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 22 AWG, 14 AWG, 2.5 MM², CLAMP, 18 A

Part	Stripping Length [Max]	Stripping Length [Min]	Material - Insulation	Number of Levels	Voltage - UL	Terminal - Width [y]	Type	Voltage - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Positions	Current - IEC	Termination Style	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]

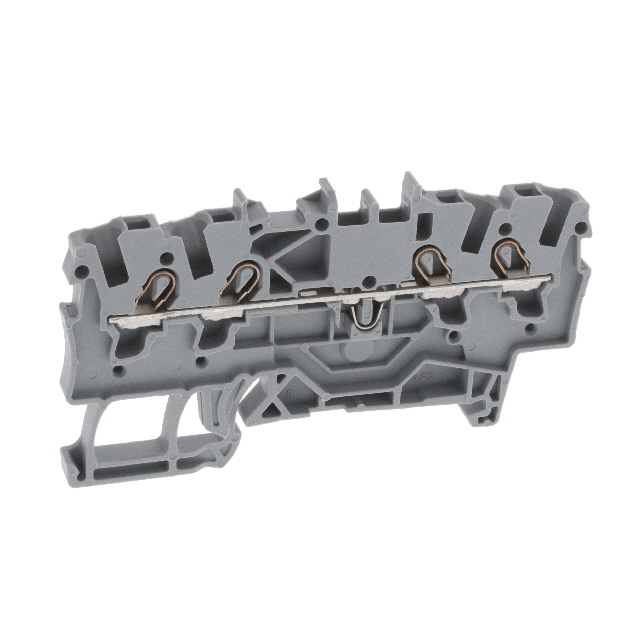

WAGO Corporation 2001-1401	11 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1	600 V	4.2 mm	Feed Through	800 V	14 AWG	18 AWG	4	24 A	Push In Spring	Gray	2.5 mm²	0.75 mm²

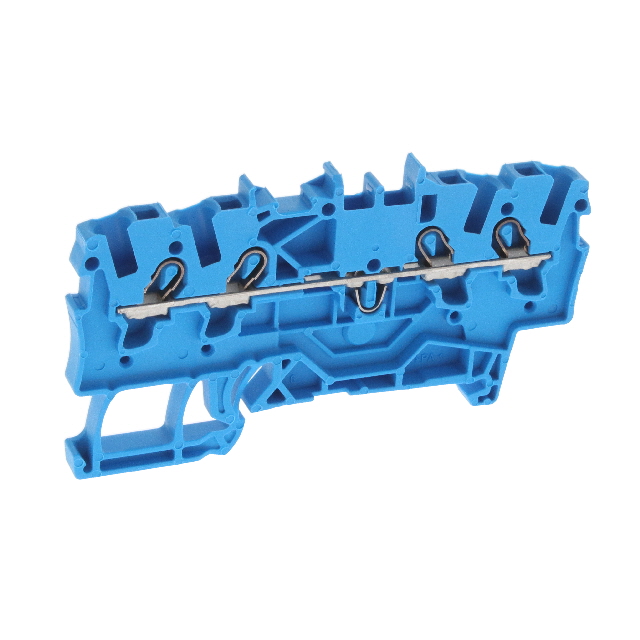

WAGO Corporation 2001-1404	11 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1	600 V	4.2 mm	Feed Through	800 V	14 AWG	18 AWG	4	24 A	Push In Spring	Blue	2.5 mm²	0.75 mm²

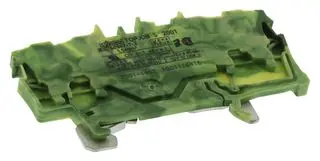

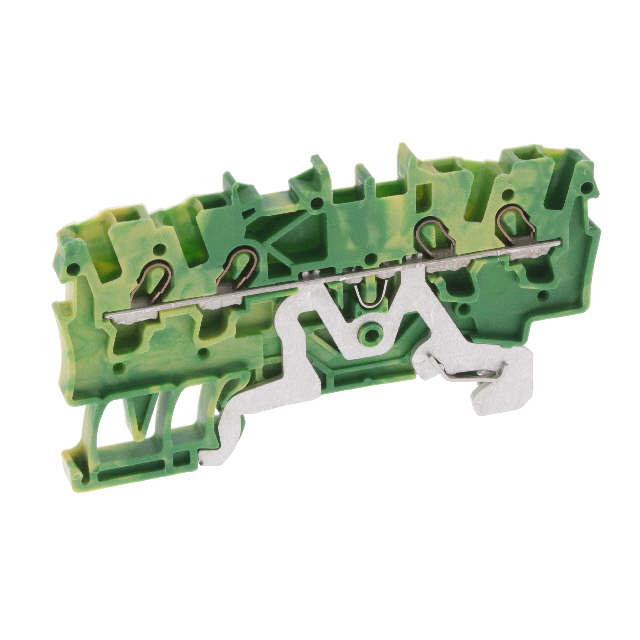

WAGO Corporation 2001-1407	11 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1		4.2 mm	Ground Earth		14 AWG	18 AWG	4		Push In Spring	Green Yellow	2.5 mm²	0.75 mm²
