T350C Series

Manufacturer: KEMET

Catalog

CAP TANT 4.7UF 20% 25V RADIAL

Part	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Type	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Capacitance	Voltage - Rated	Lead Spacing	Lead Spacing
KEMET T350C475M025AS	20 %	-55 C	125 °C	General Purpose	8.4 mm	0.331 in	4 Ohm	Conformal Coated	Through Hole	0.197 in	5 mm	Radial	4.7 µF	25 VDC	2.54 mm	0.1 in

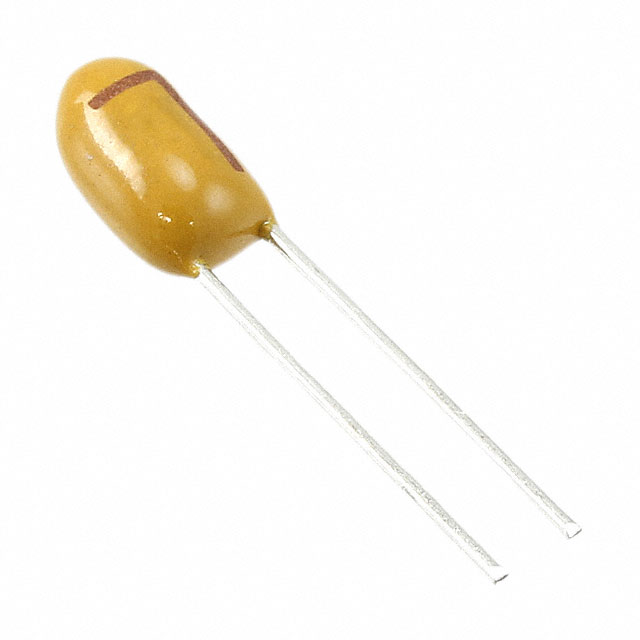

KEMET T350C106M010AT	20 %	-55 C	125 °C	General Purpose	8.4 mm	0.331 in		Conformal Coated	Through Hole	0.197 in	5 mm	Radial	10 µF	10 V	2.54 mm	0.1 in
KEMET T350C225M035AT7301	20 %	-55 C	125 °C	General Purpose	8.4 mm	0.331 in		Conformal Coated	Through Hole	0.197 in	5 mm	Radial	2.2 µF	35 V	2.54 mm	0.1 in
KEMET T350C475K025AT7303	10 %	-55 C	125 °C	General Purpose	8.4 mm	0.331 in		Conformal Coated	Through Hole	0.197 in	5 mm	Radial	4.7 µF	25 VDC	2.54 mm	0.1 in
KEMET T350C225K035AT	10 %	-55 C	125 °C	General Purpose	8.4 mm	0.331 in	5 Ohm	Conformal Coated	Through Hole	0.197 in	5 mm	Radial	2.2 µF	35 V	2.54 mm	0.1 in
KEMET T350C225M035AT	20 %	-55 C	125 °C	General Purpose	8.4 mm	0.331 in		Conformal Coated	Through Hole	0.197 in	5 mm	Radial	2.2 µF	35 V	2.54 mm	0.1 in
KEMET T350C225K035AS	10 %	-55 C	125 °C	General Purpose	8.4 mm	0.331 in	5 Ohm	Conformal Coated	Through Hole	0.197 in	5 mm	Radial	2.2 µF	35 V	2.54 mm	0.1 in
KEMET T350C685K016AS	10 %	-55 C	125 °C	General Purpose	8.4 mm	0.331 in	4 Ohm	Conformal Coated	Through Hole	0.197 in	5 mm	Radial	6.8 µF	16 V	2.54 mm	0.1 in
KEMET T350C156K006AT	10 %	-55 C	125 °C	General Purpose	8.4 mm	0.331 in	5 Ohm	Conformal Coated	Through Hole	0.197 in	5 mm	Radial	15 µF	6.3 VDC	2.54 mm	0.1 in

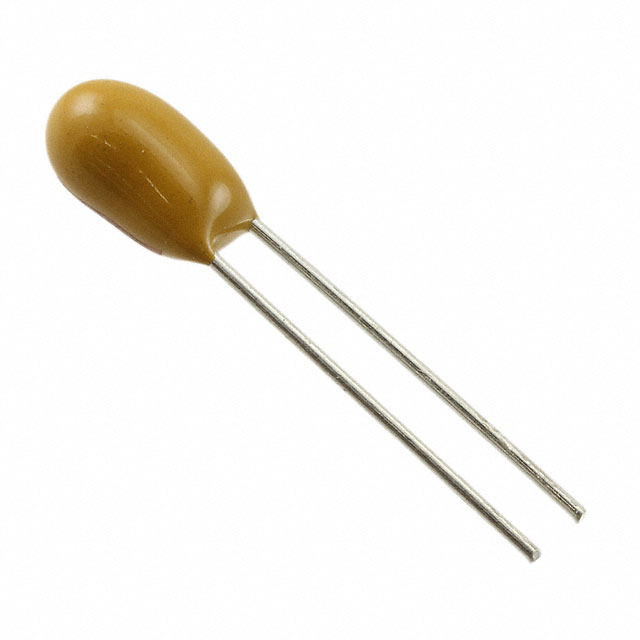

KEMET T350C475M025AT	20 %	-55 C	125 °C	General Purpose	8.4 mm	0.331 in	4 Ohm	Conformal Coated	Through Hole	0.197 in	5 mm	Radial	4.7 µF	25 VDC	2.54 mm	0.1 in
