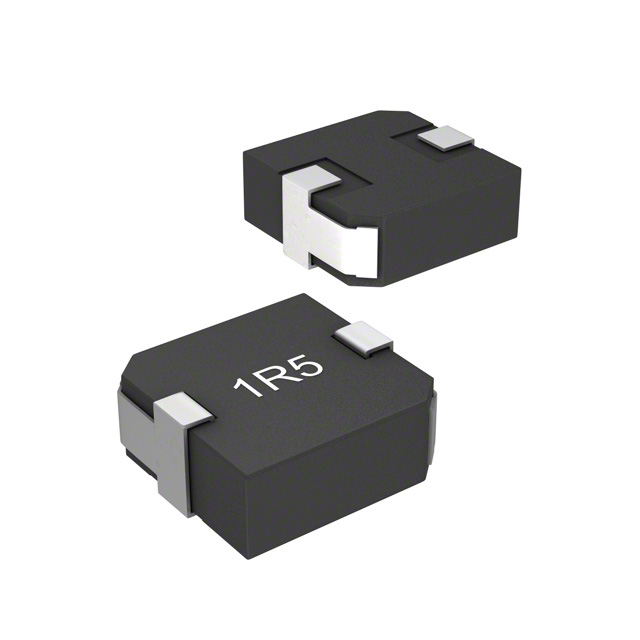

SRP1250 Series

Catalog

POWER INDUCTOR (SMD), 560 NH, 36 A, SHIELDED, 55 A, SRP1250 SERIES

Part	Package / Case	Material - Core	Mounting Type	Current Rating (Amps)	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Shielding	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Current - Saturation (Isat)	Inductance	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. SRP1250-R56M	Nonstandard	Iron	Surface Mount	36 A	100 kHz	-55 C	150 °C	20 %	Shielded	0.547 in	13.9 mm	0.531 in	13.5 mm	0.232 "	5.9 mm	Drum Core Wirewound	55 A	560 nH	1.5 mOhm
Bourns Inc. SRP1250-1R8M	Nonstandard	Iron	Surface Mount	21 A	100 kHz	-55 C	150 °C	20 %	Shielded	0.547 in	13.9 mm	0.531 in	13.5 mm	0.232 "	5.9 mm	Drum Core Wirewound	40 A	1.8 µH		4.7 mOhm
Bourns Inc. SRP1250-7R8M	Nonstandard	Iron	Surface Mount	10 A	100 kHz	-55 C	150 °C	20 %	Shielded	0.547 in	13.9 mm	0.531 in	13.5 mm	0.232 "	5.9 mm	Drum Core Wirewound	18 A	7.8 µH	20.5 mOhm
Bourns Inc. SRP1250-100M	Nonstandard	Iron	Surface Mount	9 A	100 kHz	-55 C	150 °C	20 %	Shielded	0.547 in	13.9 mm	0.531 in	13.5 mm	0.232 "	5.9 mm	Drum Core Wirewound	16 A	10 µH		25.5 mOhm
Bourns Inc. SRP1250-1R0M	Nonstandard	Iron	Surface Mount	29 A	100 kHz	-55 C	150 °C	20 %	Shielded	0.547 in	13.9 mm	0.531 in	13.5 mm	0.232 "	5.9 mm	Drum Core Wirewound	50 A	1 µH	2.5 mOhm
Bourns Inc. SRP1250-1R2M	Nonstandard	Iron	Surface Mount	27 A	100 kHz	-55 C	150 °C	20 %	Shielded	0.547 in	13.9 mm	0.531 in	13.5 mm	0.232 "	5.9 mm	Drum Core Wirewound	49 A	1.2 µH		3.3 mOhm
Bourns Inc. SRP1250-6R8M	Nonstandard	Iron	Surface Mount	11 A	100 kHz	-55 C	150 °C	20 %	Shielded	0.547 in	13.9 mm	0.531 in	13.5 mm	0.232 "	5.9 mm	Drum Core Wirewound	21 A	6.8 µH	18.5 mOhm
