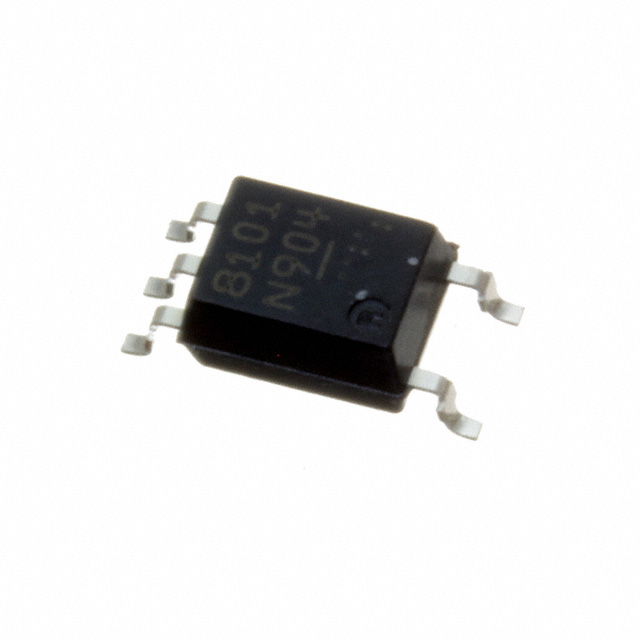

PS8101 Series

1 Mbps, High CMR Analog Output Type 5-PIN SOP (SO-5) Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

1 Mbps, High CMR Analog Output Type 5-PIN SOP (SO-5) Photocoupler

Part	Supplier Device Package	Voltage - Output (Max) [Max]	Mounting Type	Turn On / Turn Off Time (Typ)	Output Type	Current Transfer Ratio (Max) [Max]	Number of Channels	Voltage - Isolation	Current - Output / Channel [custom]	Current Transfer Ratio (Min) [Min]	Input Type	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max) [Max]
Renesas Electronics Corporation PS8101-K-AX	5-SOP	35 V	Surface Mount	500 ns 600 ns	1.81 mOhm	35 %	1	3750 Vrms	8 mA	20 %	DC	1.7 V	100 °C	-55 °C	25 mA
Renesas Electronics Corporation PS8101-V-F3-AX	5-SOP	35 V	Surface Mount	500 ns 600 ns	1.81 mOhm	35 %	1	3750 Vrms	8 mA	15 %	DC	1.7 V	100 °C	-55 °C	25 mA
Renesas Electronics Corporation PS8101-AX	5-SOP	35 V	Surface Mount	500 ns 600 ns	1.81 mOhm	35 %	1	3750 Vrms	8 mA	15 %	DC	1.7 V	100 °C	-55 °C	25 mA

Catalog

1 Mbps, High CMR Analog Output Type 5-PIN SOP (SO-5) Photocoupler

Description

The PS8101 is an optically coupled isolator containing an AlGaAs LED on the light emitting diode (input side) and a PIN photodiode and a high-speed amplifier transistor on the output side on one chip. This is a plastic SOP (Small Out-line Package) type for high density applications.
