9FGV1008 Series

Manufacturer: Renesas Electronics Corporation

Catalog

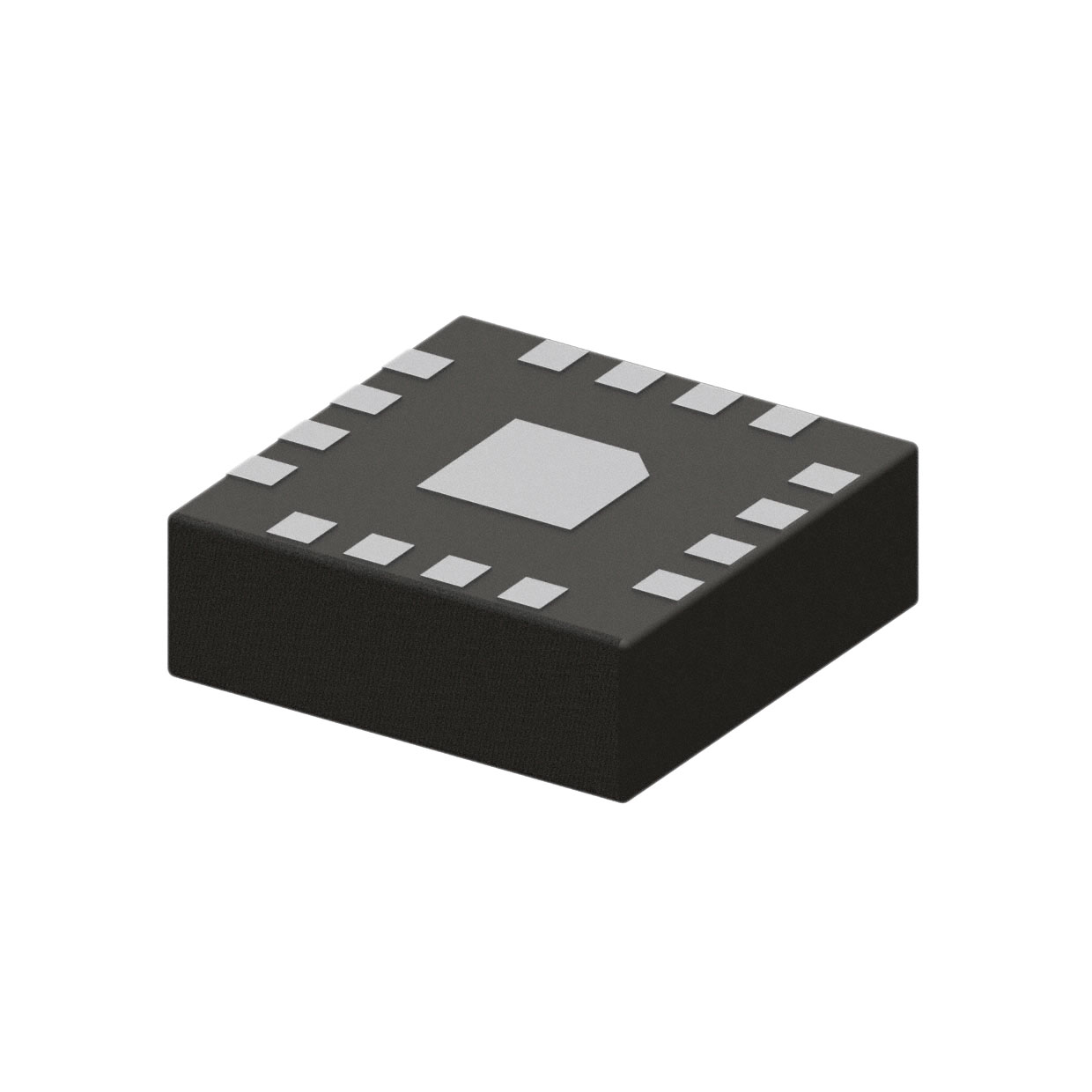

IC CLOCK GENERATOR 16LGA

Part	Number of Circuits	Differential - Input:Output	Divider/Multiplier	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Ratio - Input:Output [custom]	Frequency - Max [Max]	Supplier Device Package	Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Input	Type
Renesas Electronics Corporation 9FGV1008CQ500LTGI	1	No/Yes	Yes/No	85 °C	-40 °C	16-TFLGA Exposed Pad	1:3	156.25 MHz 200 MHz 325 MHz	16-LGA (3x3)	CML HCSL LP-HCSL LVCMOS LVDS LVPECL	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Surface Mount	Crystal HCSL LVCMOS LVDS	Clock Generator
Renesas Electronics Corporation 9FGV1008CQ500LTGI8	1	No/Yes	Yes/No	85 °C	-40 °C	16-TFLGA Exposed Pad	1:3	156.25 MHz 200 MHz 325 MHz	16-LGA (3x3)	CML HCSL LP-HCSL LVCMOS LVDS LVPECL	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Surface Mount	Crystal HCSL LVCMOS LVDS	Clock Generator
Renesas Electronics Corporation 9FGV1008C000LTGI8	1	No/Yes	Yes/No	85 °C	-40 °C	16-TFLGA Exposed Pad	1:3	156.25 MHz 200 MHz 325 MHz	16-LGA (3x3)	CML HCSL LP-HCSL LVCMOS LVDS LVPECL	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Surface Mount	Crystal HCSL LVCMOS LVDS	Clock Generator
Renesas Electronics Corporation 9FGV1008C204LTGI	1	No/Yes	Yes/No	85 °C	-40 °C	16-TFLGA Exposed Pad	1:3	156.25 MHz 200 MHz 325 MHz	16-LGA (3x3)	CML HCSL LP-HCSL LVCMOS LVDS LVPECL	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Surface Mount	Crystal HCSL LVCMOS LVDS	Clock Generator
Renesas Electronics Corporation 9FGV1008C000LTGI	1	No/Yes	Yes/No	85 °C	-40 °C	16-TFLGA Exposed Pad	1:3	156.25 MHz 200 MHz 325 MHz	16-LGA (3x3)	CML HCSL LP-HCSL LVCMOS LVDS LVPECL	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Surface Mount	Crystal HCSL LVCMOS LVDS	Clock Generator
