796859 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK PLUG 4POS STR 5.08MM

Part	Contact Material	Screw Size	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Torque - Screw	Torque - Screw	Material Flammability Rating	Insulation Height	Insulation Height	Wire Strip Length [Max]	Wire Strip Length [Min]	Color	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Pitch	Pitch	Termination Style	Number of Positions	Positions Per Level	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Type	Features	Contact Mating Finish	Voltage - UL	Plug Wire Entry	Positions Per Level [custom]

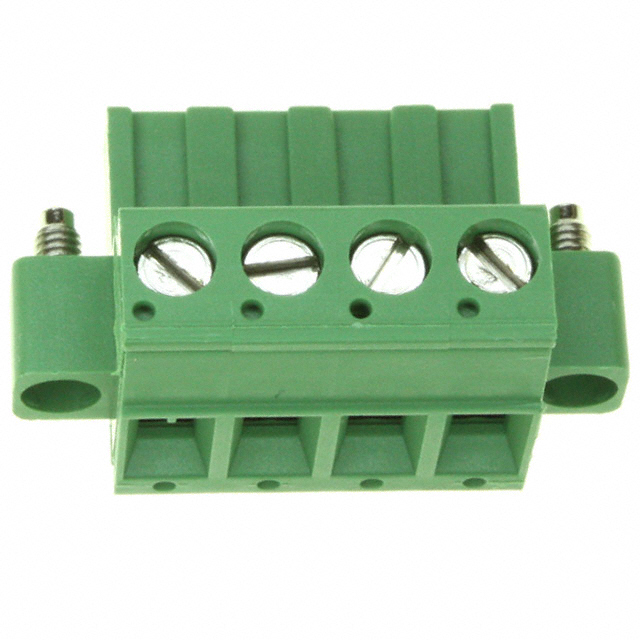

TE Connectivity AMP Connectors 796859-4	Phosphor Bronze	M3	3 mm˛	0.05 mm˛	7 Lb-In	0.79 Nm	UL94 V-0	0.61 in	15.49 mm	7.5 mm	6 mm	Green	1	-40 C	110 °C	3 mm²	0.05 mm²	5.08 mm	0.2 in	Screw - Rising Cage Clamp	4	4	30 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Mating Flange	Tin	300 V	180 °

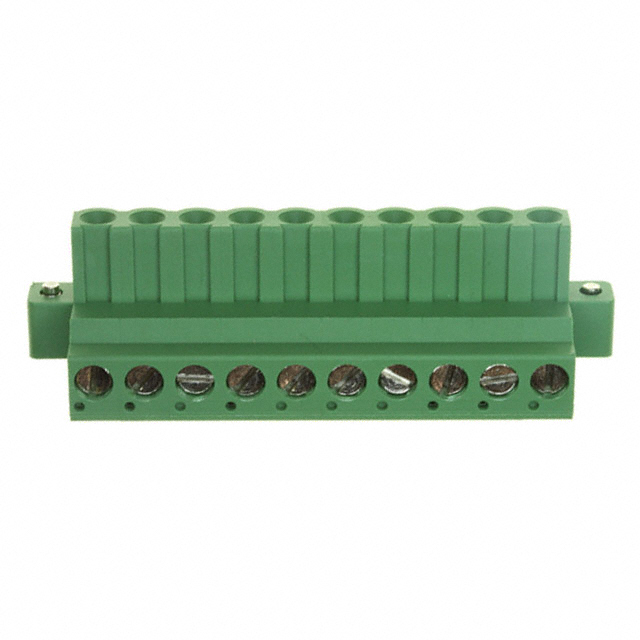

TE Connectivity AMP Connectors 1-796859-0	Phosphor Bronze	M3			7 Lb-In	0.79 Nm	UL94 V-0	0.61 in	15.49 mm	7.5 mm	6 mm	Green	1	-40 C	110 °C	3 mm²	0.05 mm²	5.08 mm	0.2 in	Screw - Rising Cage Clamp	10	10	30 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Mating Flange	Tin	300 V	180 °

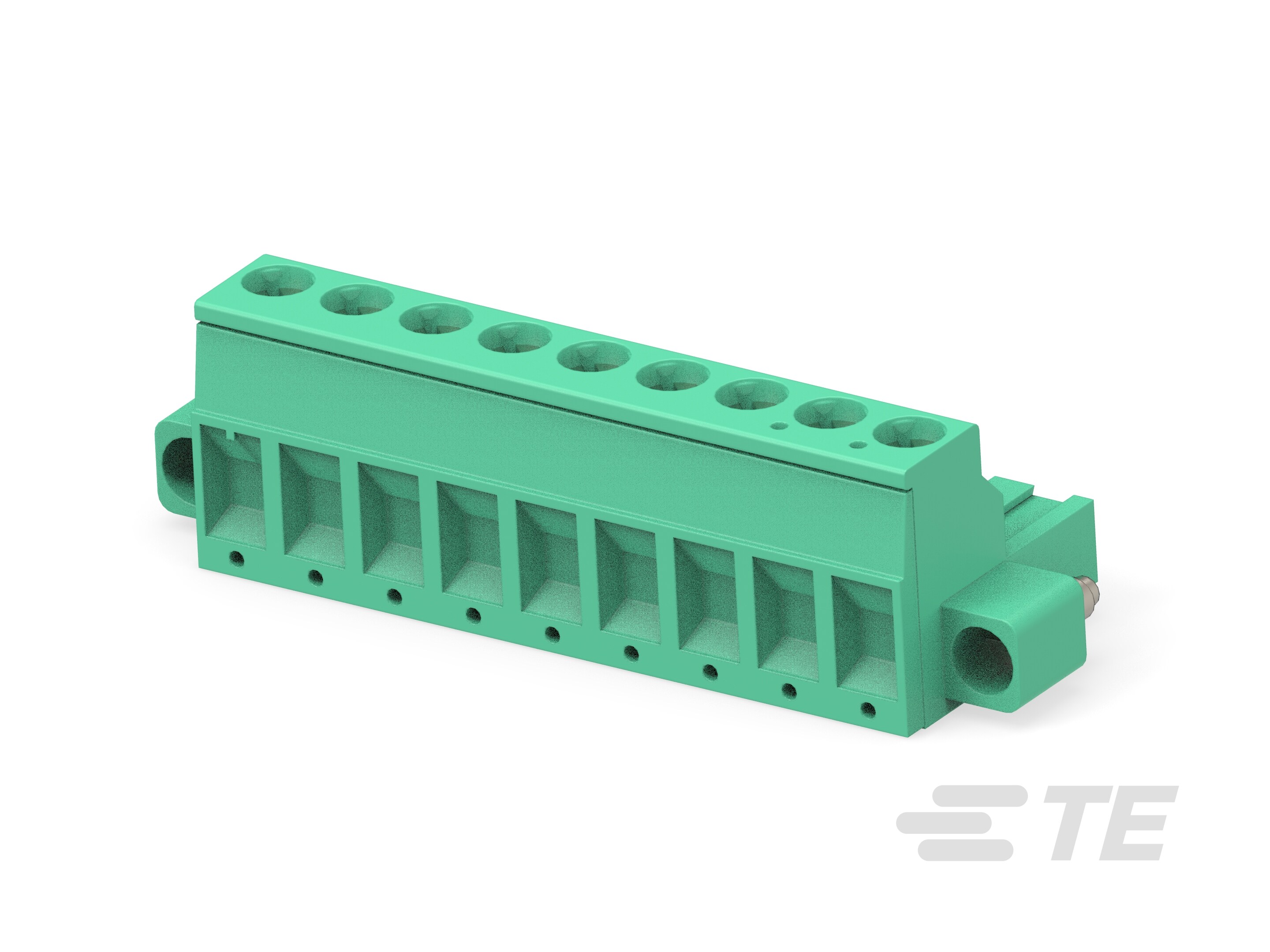

TE Connectivity AMP Connectors 796859-9	Phosphor Bronze	M3	3 mm˛	0.05 mm˛	7 Lb-In	0.79 Nm	UL94 V-0	0.61 in	15.49 mm	7.5 mm	6 mm	Green	1	-40 C	110 °C	3 mm²	0.05 mm²	5.08 mm	0.2 in	Screw - Rising Cage Clamp	9	9	30 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Mating Flange	Tin	300 V	180 °
TE Connectivity AMP Connectors 796859-8	Phosphor Bronze	M3			7 Lb-In	0.79 Nm	UL94 V-0	0.61 in	15.49 mm	7.5 mm	6 mm	Green	1	-40 C	110 °C	3 mm²	0.05 mm²	5.08 mm	0.2 in	Screw - Rising Cage Clamp	8	8	30 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Mating Flange	Tin	300 V	180 °
TE Connectivity AMP Connectors 1-796859-1	Phosphor Bronze	M3			7 Lb-In	0.79 Nm	UL94 V-0	0.61 in	15.49 mm	7.5 mm	6 mm	Green	1	-40 C	110 °C	3 mm²	0.05 mm²	5.08 mm	0.2 in	Screw - Rising Cage Clamp	11	11	30 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Mating Flange	Tin	300 V	180 °

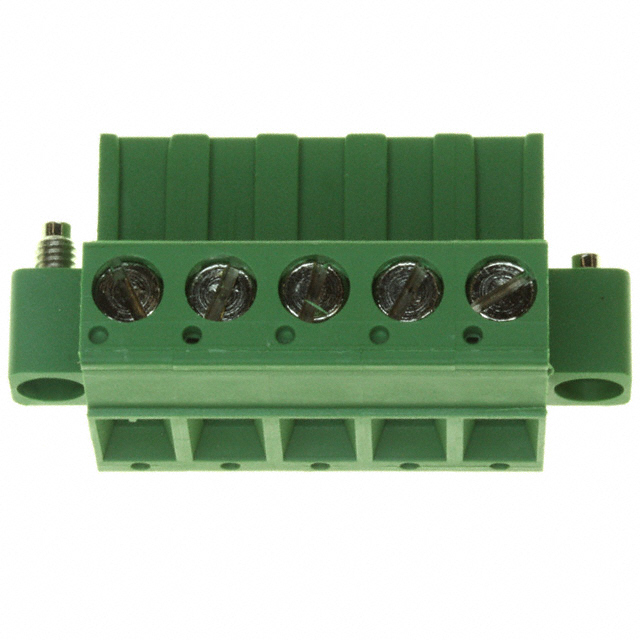

TE Connectivity AMP Connectors 796859-5	Phosphor Bronze	M3			7 Lb-In	0.79 Nm	UL94 V-0	0.61 in	15.49 mm	7.5 mm	6 mm	Green	1	-40 C	110 °C	3 mm²	0.05 mm²	5.08 mm	0.2 in	Screw - Rising Cage Clamp	5	5	30 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Mating Flange	Tin	300 V	180 °
TE Connectivity AMP Connectors 796859-7	Phosphor Bronze	M3			7 Lb-In	0.79 Nm	UL94 V-0	0.61 in	15.49 mm	7.5 mm	6 mm	Green	1	-40 C	110 °C	3 mm²	0.05 mm²	5.08 mm	0.2 in	Screw - Rising Cage Clamp	7		30 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Mating Flange	Tin	300 V	180 °	7

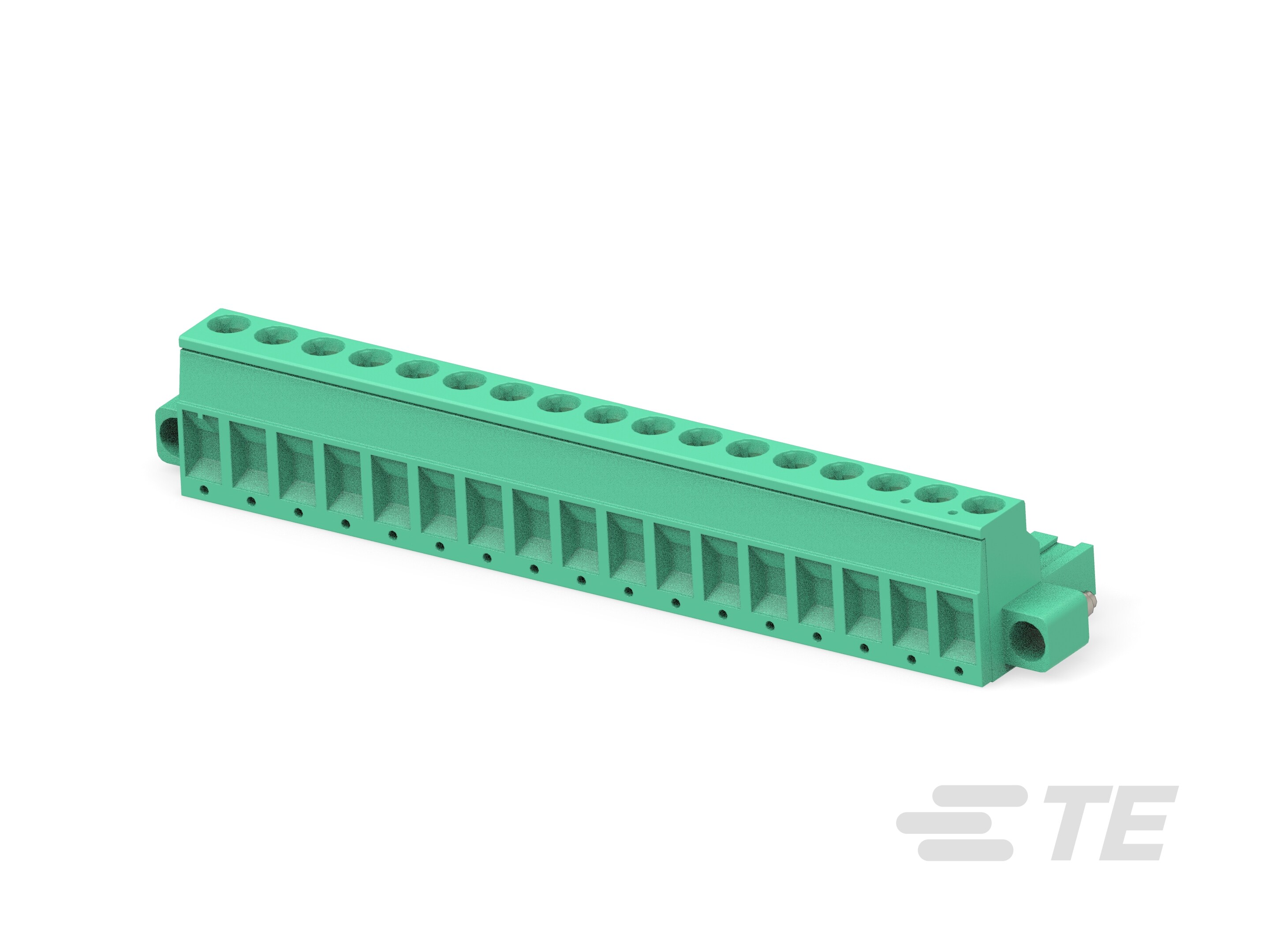

TE Connectivity AMP Connectors 1-796859-7	Phosphor Bronze	M3			7 Lb-In	0.79 Nm	UL94 V-0	0.61 in	15.49 mm	7.5 mm	6 mm	Green	1	-40 C	110 °C	3 mm²	0.05 mm²	5.08 mm	0.2 in	Screw - Rising Cage Clamp		17	30 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Mating Flange	Tin	300 V	180 °

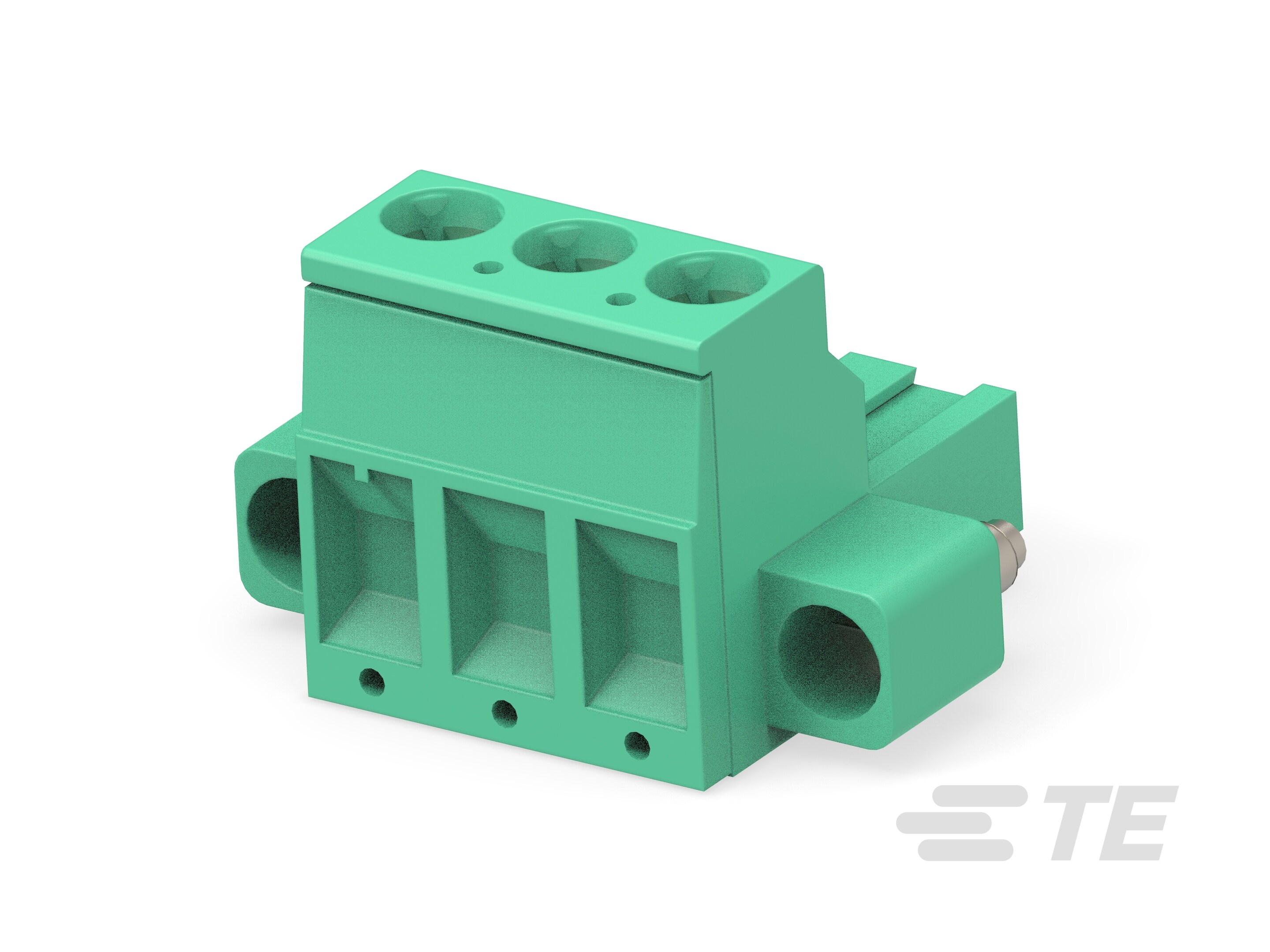

TE Connectivity AMP Connectors 796859-3	Phosphor Bronze	M3			7 Lb-In	0.79 Nm	UL94 V-0	0.61 in	15.49 mm	7.5 mm	6 mm	Green	1	-40 C	110 °C	3 mm²	0.05 mm²	5.08 mm	0.2 in	Screw - Rising Cage Clamp		3	30 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Mating Flange	Tin	300 V	180 °
