51RAA Series
Manufacturer: Bourns Inc.
Beta
⌘K

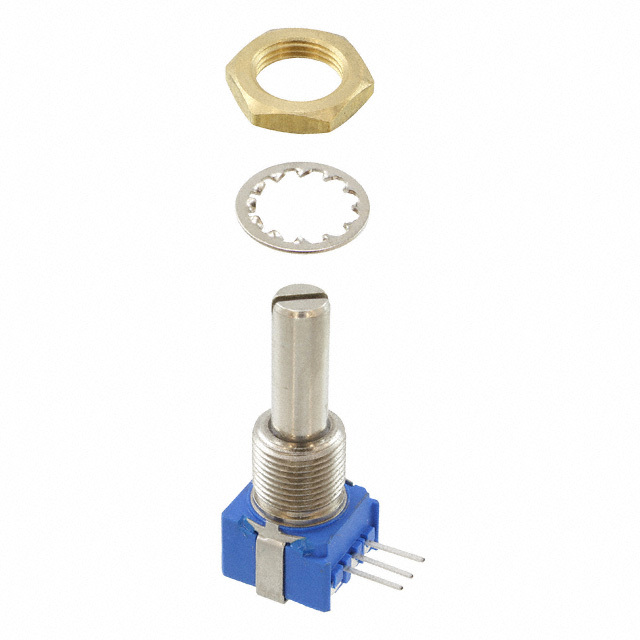

PANEL CONTROL - 1/2" (12.5MM) SQ 1-TURN /TRAY PACKAGING ROHS COMPLIANT: YES
| Part | Actuator Length [x] | Actuator Length [x] | Number of Gangs | Mounting Type | Bushing Thread | Bushing Thread | Size - Body [y] | Size - Body [x] | Size - Body [y] | Size - Body [x] | Resistive Material | Tolerance | Power (Watts) | Power (Watts) | Temperature Coefficient | Termination Style | Features | Adjustment Type | Number of Turns | Taper | Resistance (Ohms) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Actuator Type | Rotation | Built in Switch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 0.984 in | 25 mm | 1 | Panel Mount | M10 | 0.75 | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Conductive Plastic | 20 % | 0.25 W | 0.25 W | 1000 ppm/°C | PC Pins | Sealed | Side Adjustment | 1 | Logarithmic | 10k | 6 mm | 0.236 in | Slotted | 290 ° | None |
Bourns Inc. | 0.984 in | 25 mm | 1 | Panel Mount | M10 | 0.75 | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Conductive Plastic | 20 % | 0.25 W | 0.25 W | 1000 ppm/°C | PC Pins | Sealed | Side Adjustment | 1 | Logarithmic | 1k | 6 mm | 0.236 in | Slotted | 290 ° | None |
Bourns Inc. | 0.984 in | 25 mm | 1 | Panel Mount | M10 | 0.75 | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Conductive Plastic | 20 % | 0.25 W | 0.25 W | 1000 ppm/°C | PC Pins | Sealed | Side Adjustment | 1 | Logarithmic | 100k | 6 mm | 0.236 in | Slotted | 290 ° | None |
Bourns Inc. | 0.984 in | 25 mm | 1 | Panel Mount | M10 | 0.75 | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | Cermet | 10 % | 1 W | 150 ppm/°C | PC Pins | Sealed | Side Adjustment | 1 | Linear | 1k | 6 mm | 0.236 in | Slotted | 290 ° | None |
