PJ-24V100 Series
Manufacturer: Delta Electronics
Beta
⌘K

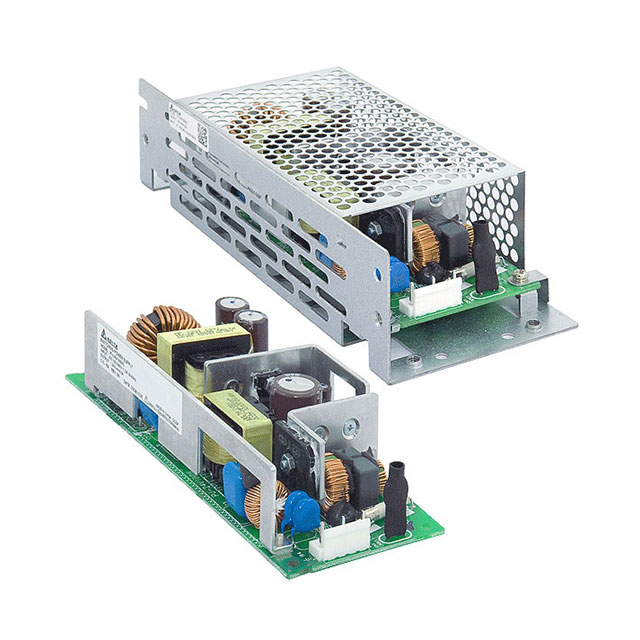

AC/DC OPEN FRAME POWER SUPPLY (PSU), 21.6-26.4V, ITE, 1 OUTPUT, 103.2 W, 85V AC TO 264V AC
| Part | Mounting Type | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Type | Approval Agency | Efficiency | Voltage - Output 1 | Applications | Voltage - Isolation | Features | Current - Output 1 | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Chassis Mount | 1 | 70 °C | -10 °C | 100 W | Open Frame | CB CE cURus TUV | 89 % | 24 V | ITE (Commercial) | 3000 V | Adjustable Output PFC Remote On/Off Universal Input | 4.3 A | 1.65 " | 7.28 in | 72 mm | 45 mm | 185 mm | 2.83 " |
 Delta Electronics | Chassis Mount | 1 | 70 °C | -10 °C | 100 W | Open Frame | CB CE cURus TUV | 89 % | 24 V | ITE (Commercial) | 3000 V | Adjustable Output PFC Universal Input | 4.3 A | 1.65 " | 7.28 in | 72 mm | 45 mm | 185 mm | 2.83 " |
