EB171SA Series
Manufacturer: Adam Tech
Beta
⌘K

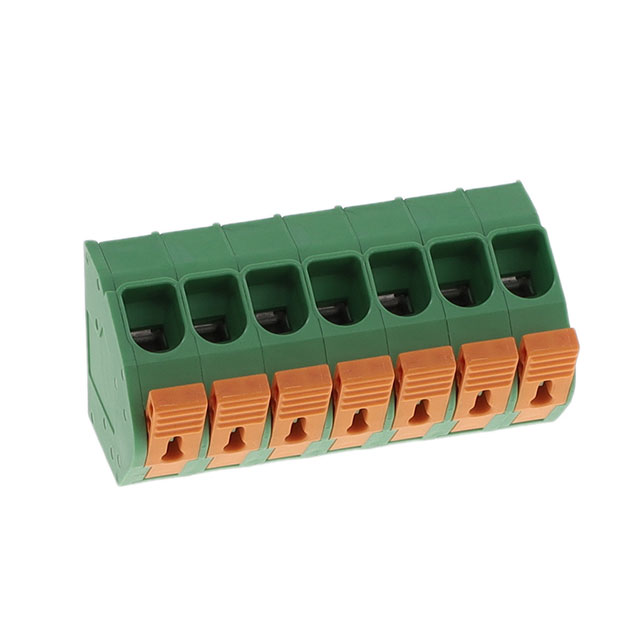

TERM BLOCK 7POS 30DEG 7.5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Pitch | Pitch | Voltage | Positions Per Level [custom] | Number of Levels | Color | Features | Wire Gauge [Max] | Wire Gauge [Min] | Wire Termination | Current | Mating Orientation | Mating Orientation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | -40 C | 105 ░C | Copper Alloy - Tin Plated | 0.295 in | 7.5 mm | 600 V | 7 | 1 | Green | Lever Actuated | 24 AWG | 10 AWG | Screwless - Spring Cage Tension Clamp | 27 A | 30 ° | 150 ° | Through Hole |
