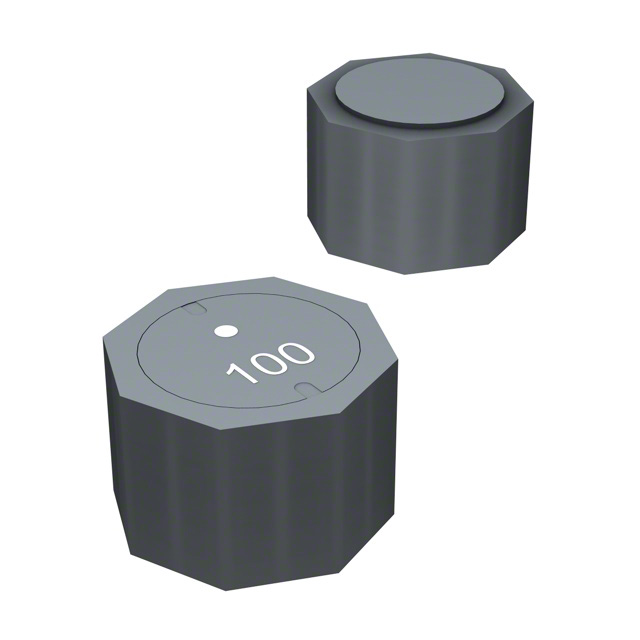

SRU1063 Series

Catalog

IND10X10X6.5MM,68UH30%1.2A,SHDSMD /TAPE & REEL - 13" REEL

Part	Shielding	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max)	Inductance	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Material - Core	Type	Inductance Frequency - Test	Q @ Freq	Tolerance	Current Rating (Amps)	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Bourns Inc. SRU1063-680Y	Shielded	5 MHz	0.268 "	6.8 mm	68 µH	1.35 A	125 °C	-40 C	Surface Mount	0.394 in	0.394 in	10 mm	10 mm	Nonstandard	Ferrite	Drum Core Wirewound	100 kHz	2.52 MHz 8	30 %	1.2 A	210 mOhm
Bourns Inc. SRU1063-150Y	Shielded	14 MHz	0.268 "	6.8 mm	15 µH	3.4 A	125 °C	-40 C	Surface Mount	0.394 in	0.394 in	10 mm	10 mm	Nonstandard	Ferrite	Drum Core Wirewound	100 kHz		30 %	3.2 A	42 mOhm	12	2.52 MHz
Bourns Inc. SRU1063-4R7Y	Shielded	30 MHz	0.268 "	6.8 mm	4.7 ÁH	5.7 A	125 °C	-40 C	Surface Mount	0.394 in	0.394 in	10 mm	10 mm	Nonstandard	Ferrite	Drum Core Wirewound	100 kHz	7.96 MHz 11	30 %	5.5 Amps				14 mOhm
Bourns Inc. SRU1063-100Y	Shielded	18 MHz	0.268 "	6.8 mm	10 µH	4 A	125 °C	-40 C	Surface Mount	0.394 in	0.394 in	10 mm	10 mm	Nonstandard	Ferrite	Drum Core Wirewound	100 kHz	2.52 MHz 14	30 %	3.8 A				38 mOhm
Bourns Inc. SRU1063-1R6Y	Shielded	65 MHz	0.268 "	6.8 mm	1.6 µH	10 A	125 °C	-40 C	Surface Mount	0.394 in	0.394 in	10 mm	10 mm	Nonstandard	Ferrite	Drum Core Wirewound	100 kHz	7.96 MHz 13	30 %	8 A	9 mOhm
Bourns Inc. SRU1063-2R2Y	Shielded	65 MHz	0.268 "	6.8 mm	2.2 µH	8.5 A	125 °C	-40 C	Surface Mount	0.394 in	0.394 in	10 mm	10 mm	Nonstandard	Ferrite	Drum Core Wirewound	100 kHz	7.96 MHz 10	30 %	7.5 A	11 mOhm
