396-066 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 66POS 0.125

...

Part	Material - Insulation	Termination Rows [custom]	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Type	Contact Material	Number of Positions	Read Out	Card Type	Mounting Type	Gender	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Features
EDAC Inc. 396-066-540-212	Polyester Thermoplastic	2	Wire Wrap	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	2	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Copper Alloy	66	Dual	Non Specified - Dual Edge	Through Hole	Female	Gold	-40 C	105 ░C	33
EDAC Inc. 396-066-560-808	Polyester Thermoplastic	2	Solder	0.25 Ám	10 Áin	4-40 Threaded Insert Top Mount Opening			2	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Copper Alloy	66	Dual	Non Specified - Dual Edge	Board Edge Straddle Mount	Female	Gold	-40 C	105 ░C	33	Card Extender
EDAC Inc. 396-066-520-803	Polyester Thermoplastic	2	Solder	0.25 Ám	10 Áin	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	2	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Copper Alloy	66	Dual	Non Specified - Dual Edge	Through Hole	Female	Gold	-40 C	105 ░C	33

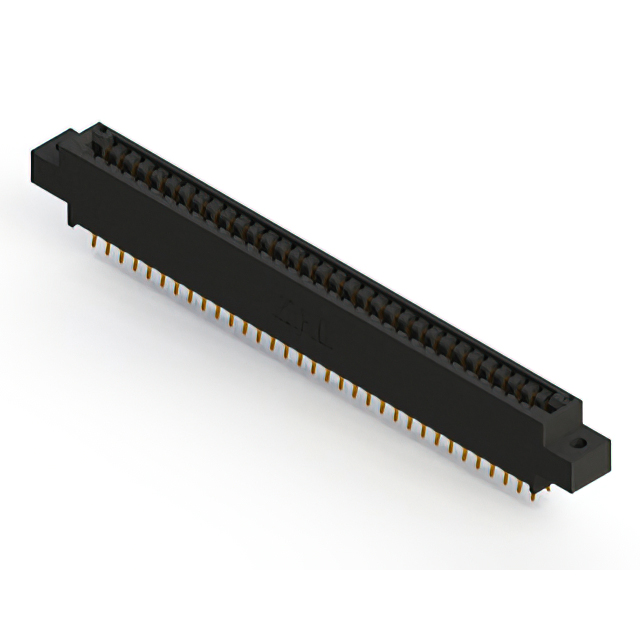

EDAC Inc. 396-066-556-802	Polyester Thermoplastic	2	Solder	0.25 Ám	10 Áin		0.128 "	3.25 mm	2	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Copper Alloy	66	Dual	Non Specified - Dual Edge	Board Edge Straddle Mount	Female	Gold	-40 C	105 ░C	33	Card Extender
EDAC Inc. 396-066-559-208	Polyester Thermoplastic	2	Solder Wire Wrap	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			2	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Copper Alloy	66	Dual	Non Specified - Dual Edge	Right Angle Through Hole	Female	Gold	-40 C	105 ░C	33

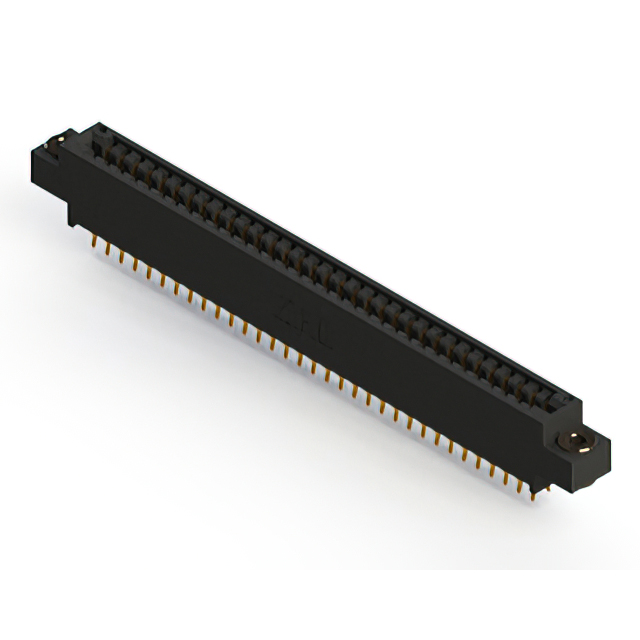

EDAC Inc. 396-066-556-803	Polyester Thermoplastic	2	Solder	0.25 Ám	10 Áin	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	2	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Copper Alloy	66	Dual	Non Specified - Dual Edge	Board Edge Straddle Mount	Female	Gold	-40 C	105 ░C	33	Card Extender
EDAC Inc. 396-066-521-207	Polyester Thermoplastic	2	Solder	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening			2	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Copper Alloy	66	Dual	Non Specified - Dual Edge	Through Hole	Female	Gold	-40 C	105 ░C	33
EDAC Inc. 396-066-560-203	Polyester Thermoplastic	2	Solder	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	0.116 "	2.95 mm	2	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Copper Alloy	66	Dual	Non Specified - Dual Edge	Board Edge Straddle Mount	Female	Gold	-40 C	105 ░C	33	Card Extender

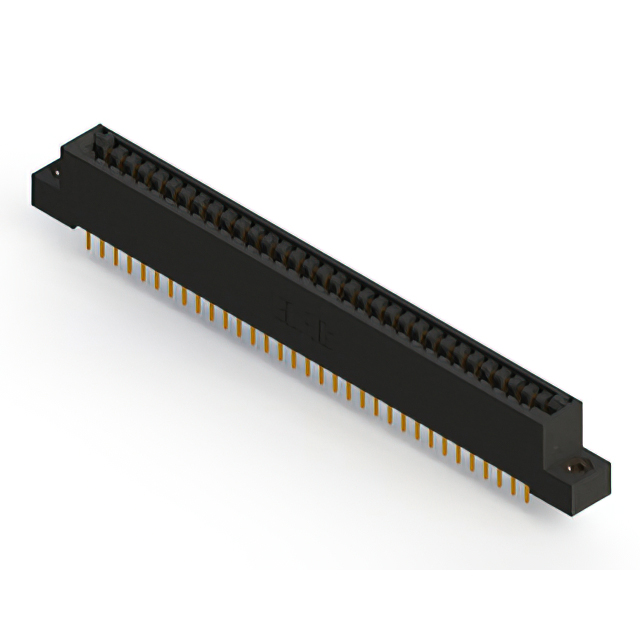

EDAC Inc. 396-066-521-208	Polyester Thermoplastic	2	Solder	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			2	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Copper Alloy	66	Dual	Non Specified - Dual Edge	Through Hole	Female	Gold	-40 C	105 ░C	33
EDAC Inc. 396-066-521-807	Polyester Thermoplastic	2	Solder	0.25 Ám	10 Áin	M3 Threaded Insert Top Mount Opening			2	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Copper Alloy	66	Dual	Non Specified - Dual Edge	Through Hole	Female	Gold	-40 C	105 ░C	33
