1210-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

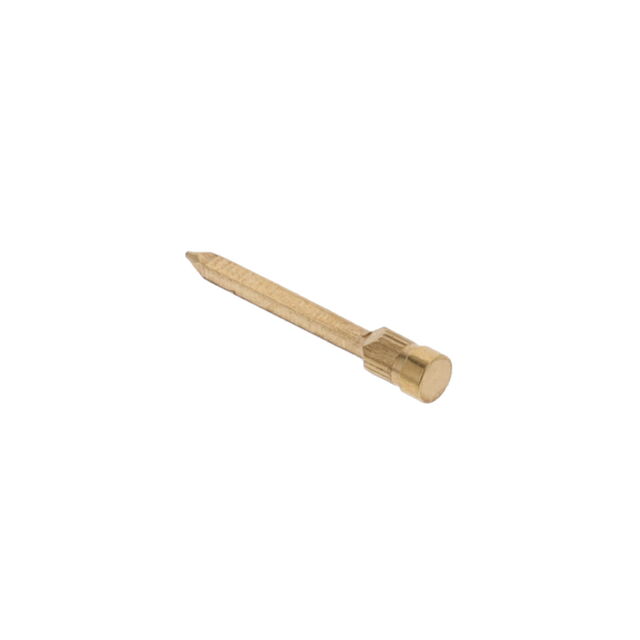

CONN PC PIN SQUARE 0.025 TINLEAD
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange | Pin Size - Above Flange | Terminal Type | Length - Overall [x] | Length - Overall [x] | Terminal Style | Termination | Contact Material | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | 200 Áin | 5.08 Ám | 0.025 in | 0.64 mm | PC Pin | 9.65 mm | 0.38 in | Single End | Knurled Press-Fit Wire Wrap | Brass Alloy | Tin-Lead | 1.57 mm | 0.062 in | 0.053 " | 1.35 mm | 8.86 mm | 0.349 in | Non-Insulated |
 Mill-Max Manufacturing Corp. | Through Hole | 20 µin | 0.51 µm | 0.025 in | 0.64 mm | PC Pin | 9.65 mm | 0.38 in | Single End | Knurled Press-Fit Wire Wrap | Brass Alloy | Gold | 1.57 mm | 0.062 in | 0.053 " | 1.35 mm | 8.86 mm | 0.349 in | Non-Insulated |
 Mill-Max Manufacturing Corp. | Through Hole | 10 Áin | 0.25 Ám | 0.025 in | 0.64 mm | PC Pin | 9.65 mm | 0.38 in | Single End | Knurled Press-Fit Wire Wrap | Brass Alloy | Gold | 1.57 mm | 0.062 in | 0.053 " | 1.35 mm | 8.86 mm | 0.349 in | Non-Insulated |
