TUHB-88R Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

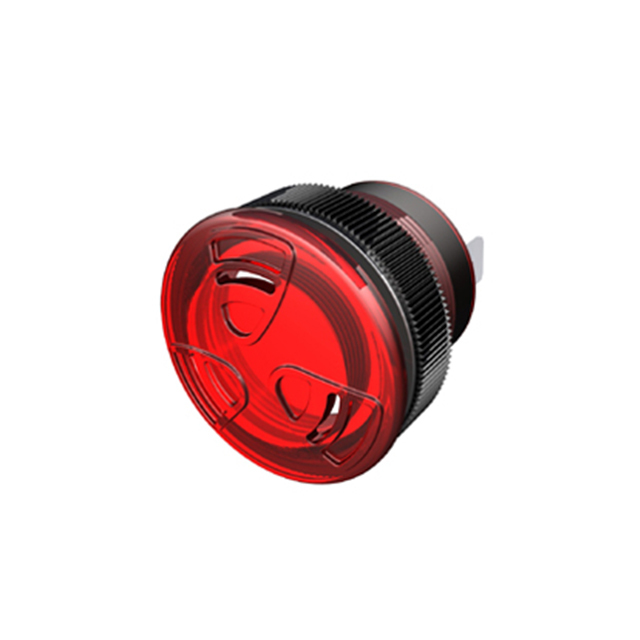

BUZZER 33.02MM PNL MNT
| Part | Termination | Termination | Termination | Ingress Protection | Mounting Type | Operating Mode | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Supply [Max] | Current - Supply [Min] | Driver Circuitry | Sound Pressure Level (SPL) | Input Type | Approval Agency | Frequency | Port Location | Voltage Range [Max] | Voltage Range [Min] | Size / Dimension [diameter] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Quick Connect Tab | 0.25 " | 6.35 mm | IP68 - Dust Tight Waterproof | Panel Mount | Medium Pulse | 29.97 mm | 1.18 in | 125 mA | 65 mA | Indicator Internally Driven | 103 dB | DC | UL UR | 3 kHz | Top | 30 V | 9 V | 1.3 in | 33.02 mm |
Floyd Bell Inc | Quick Connect Tab | 0.25 " | 6.35 mm | IP68 - Dust Tight Waterproof | Panel Mount | Fast Pulse | 29.97 mm | 1.18 in | 125 mA | 65 mA | Indicator Internally Driven | 103 dB | DC | UL UR | 3 kHz | Top | 30 V | 9 V | 1.3 in | 33.02 mm |
Floyd Bell Inc | Quick Connect Tab | 0.25 " | 6.35 mm | IP68 - Dust Tight Waterproof | Panel Mount | Fast Pulse | 29.97 mm | 1.18 in | 125 mA | 65 mA | Indicator Internally Driven | 103 dB | DC | UL UR | 3 kHz | Top | 30 V | 9 V | 1.3 in | 33.02 mm |
 Floyd Bell Inc | Quick Connect Tab | 0.25 " | 6.35 mm | IP68 - Dust Tight Waterproof | Panel Mount | Pulse Slow | 29.97 mm | 1.18 in | 125 mA | 65 mA | Indicator Internally Driven | 103 dB | DC | UL UR | 3 kHz | Top | 30 V | 9 V | 1.3 in | 33.02 mm |
