MS22ANG Series

Catalog

SWITCH SLIDE DPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Actuator Material	Switch Travel	Actuator Length [x]	Voltage Rating - AC	Actuator Type	Circuit	Current Rating (Amps)	Features	Contact Material	Switch Function	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Mounting Type	Contact Finish	Contact Timing

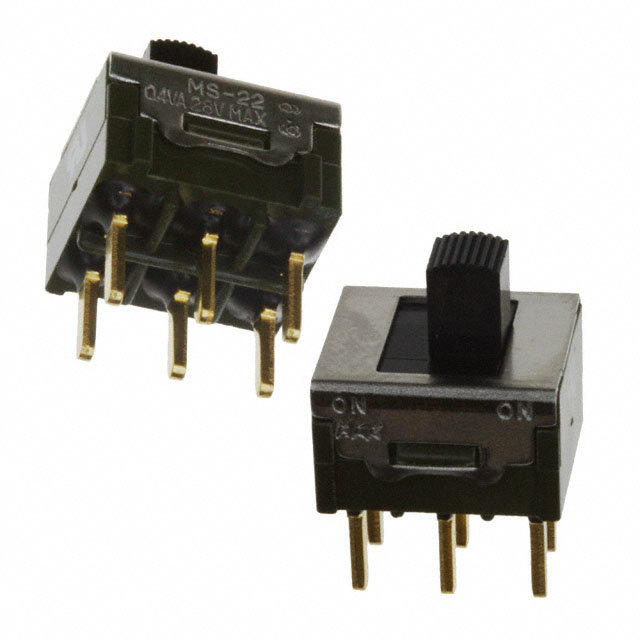

NKK Switches MS22ANG03/U	100000 Cycles	50000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	2.2 mm	5.1 mm	28 V	Standard	DPDT	0.4 VA	Epoxy Sealed Terminals	Copper	On-On	PC Pin	85 °C	-30 ░C	28 V	Through Hole	Gold	Non-Shorting (BBM)

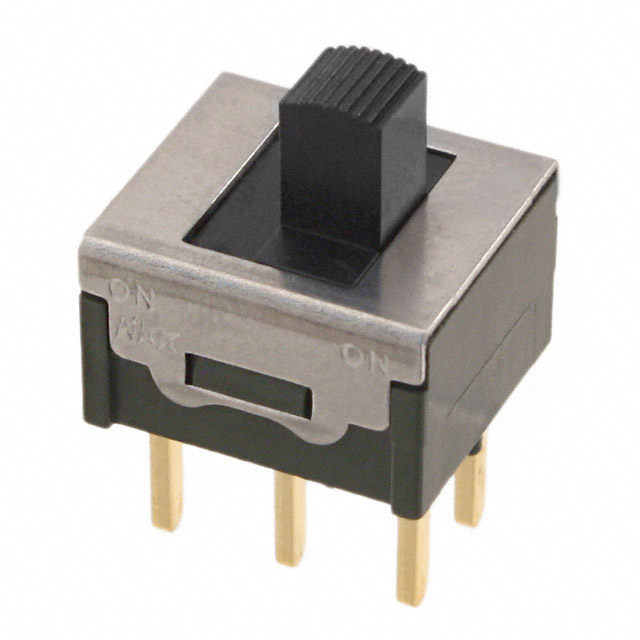

NKK Switches MS22ANG03	100000 Cycles	50000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	2.2 mm	5.1 mm	28 V	Standard	DPDT	0.4 VA	Epoxy Sealed Terminals	Copper	On-On	PC Pin	85 °C	-30 ░C	28 V	Through Hole	Gold	Non-Shorting (BBM)
