TE150A1851 Series

Catalog

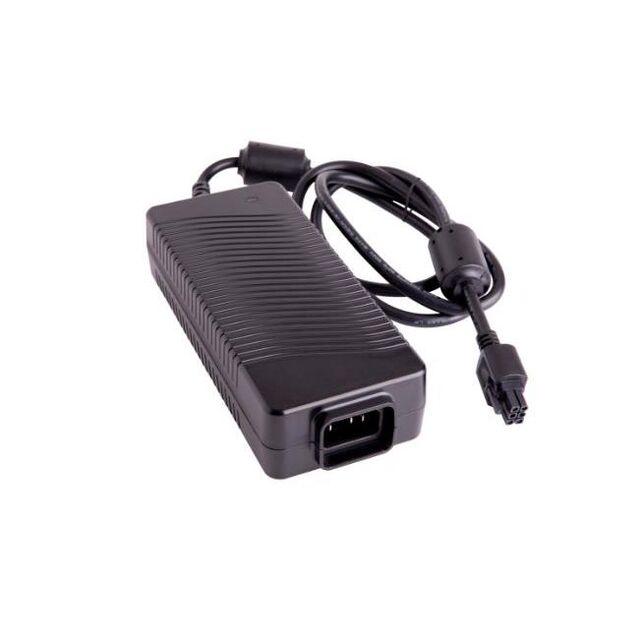

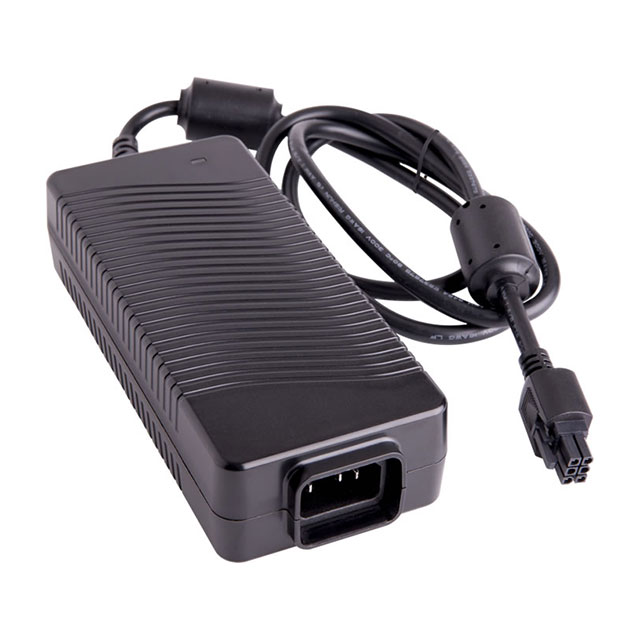

AC/DC DESKTOP ADAPTER 18V 150W

Part	Weight [custom]	Weight [custom]	Output Connector	Output Connector	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	No Load Power Consumption	Approval Agency	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Form	Power (Watts)	Applications	Voltage - Output	Region Utilized	Current - Output (Max) [Max]	Standard Number
SL POWER / Advanced Energy TE150A1851N01	700 g	1.543 lb	Rectangular	6 Position	CoC Tier 2 Level VI	-20 ░C	70 °C	150 mW	CE cULus D-Mark	Cord (Sold Separately)	100 VAC	240 VAC	IEC 320-C8	6.85 "	2.83 "	174 mm	71.9 mm	1.5 in	38.1 mm	Desktop (Class II)	150 W	ITE (Commercial)	18 V	International	8.33 A
SL POWER / Advanced Energy TE150A1851F01			Rectangular	6 Position	CoC Tier 2 Level VI	-20 ░C	70 °C	150 mW	CE cULus DEMKO	Cord (Sold Separately)	90 VAC	264 VAC	IEC 320-C14	6.85 "	2.83 "	174 mm	71.9 mm	1.5 in	38.1 mm	Desktop (Class I)	150 W	ITE (Commercial)	18 V	International	8.33 A	60950-1
