FS1G Series

Catalog

INTERFACE

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Supplier Device Package	Current - Reverse Leakage @ Vr	Package / Case	Reverse Recovery Time (trr)	Capacitance @ Vr, F
Micro Commercial Components FS1GFL-TP	150 °C	-55 °C	Standard	400 V	1 A	Standard Recovery >500ns	200 mA	1.1 V	Surface Mount	DO-221AC (SMA-FL)	5 µA	DO-221AC SMA Flat Leads
Micro Commercial Components FS1GE-TP	150 °C	-50 °C	Standard	400 V	1 A		200 mA 500 ns	1.3 V	Surface Mount	SMAE	5 µA	DO-214AC SMA	150 ns

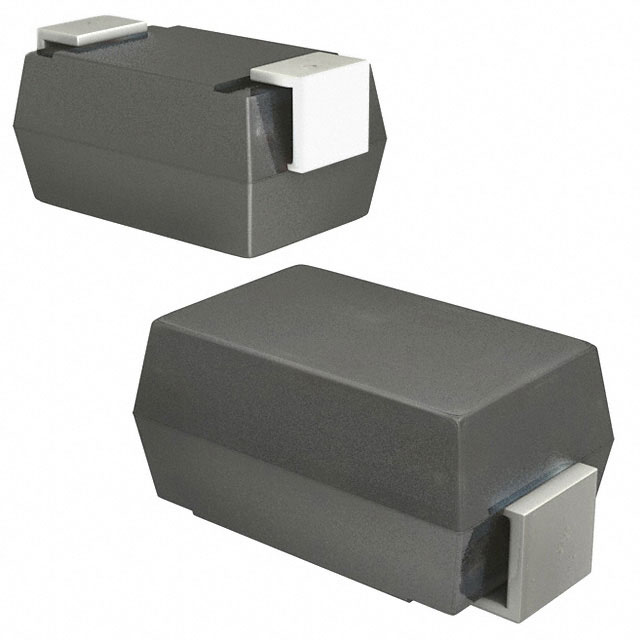

Micro Commercial Components FS1G-LTP	150 °C	-50 °C	Standard	400 V	1 A		200 mA 500 ns	1.3 V	Surface Mount	DO-214AC (SMA)	5 µA	DO-214AC SMA	150 ns	50 pF
