TPS61236 Series

Catalog

IC REG BOOST ADJ 6.5A 9VQFN

Part	Voltage - Output (Max) [Max]	Topology	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output	Package / Case	Frequency - Switching	Number of Outputs	Voltage - Output (Min/Fixed) [Min]	Output Configuration	Output Type	Supplier Device Package	Supplied Contents	Board Type	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Main Purpose	Contents	Utilized IC / Part	Voltage - Output
Texas Instruments TPS61236RWLT	5.5 V	Boost	4.9 V	2.3 V	Step-Up	85 C	-40 ¯C	Surface Mount	6.5 A	9-PowerVFQFN	1 MHz	1	2.9 V	Positive	Adjustable	9-VQFN-HR (2.5x2.5)

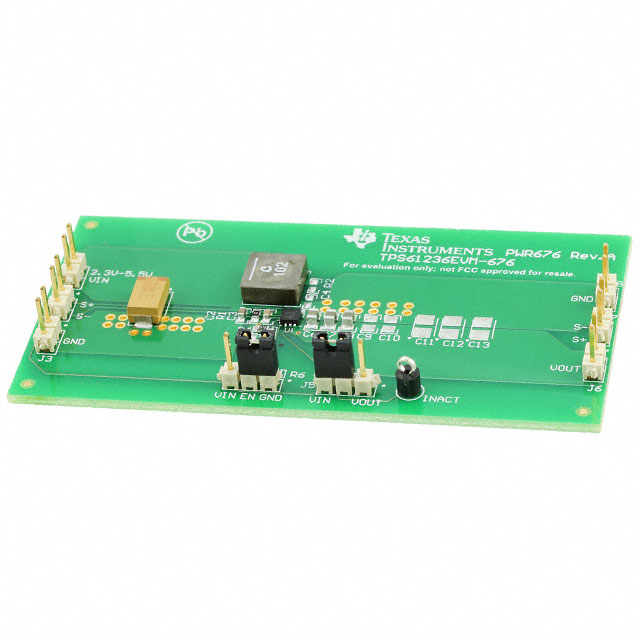

Texas Instruments TPS61236EVM-676									3 A		1 MHz						Board(s)	Fully Populated	1	1 Non-Isolated Output Non-Isolated	2.3 V	4.4 V	Boost	DC/DC Step Up	Board(s)	TPS61236	5 V
Texas Instruments TPS61236RWLR	5.5 V	Boost	4.9 V	2.3 V	Step-Up	85 C	-40 ¯C	Surface Mount	6.5 A	9-PowerVFQFN	1 MHz	1	2.9 V	Positive	Adjustable	9-VQFN-HR (2.5x2.5)
