R16129 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

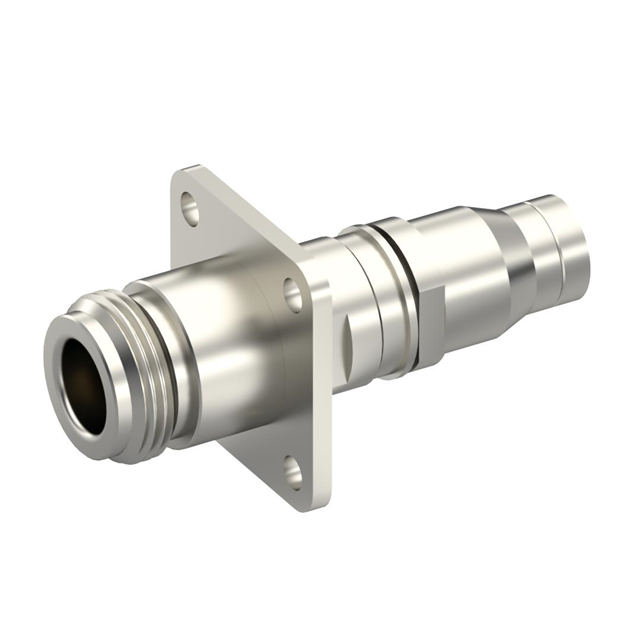

N / JACK STRAIGHT CRIMP TYPE FOR
| Part | Center Contact Plating | Voltage Rating | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Mating Cycles | Body Material | Mounting Type | Ingress Protection | Connector Type | Frequency - Max [Max] | Shield Termination | Contact Termination | Connector Style | Impedance | Mounting Feature | Fastening Type | Housing Color | Number of Ports | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 1000 VDC | Polytetrafluoroethylene (PTFE) | Nickel | -65 ░C | 165 °C | 0.15 dB | 500 | Brass | Panel Mount | IP67 - Dust Tight Waterproof | Female Socket Jack | 3 GHz | Crimp | Crimp | N Type | 50 Ohms | Flange | Threaded | Silver | 1 | Beryllium Copper |
