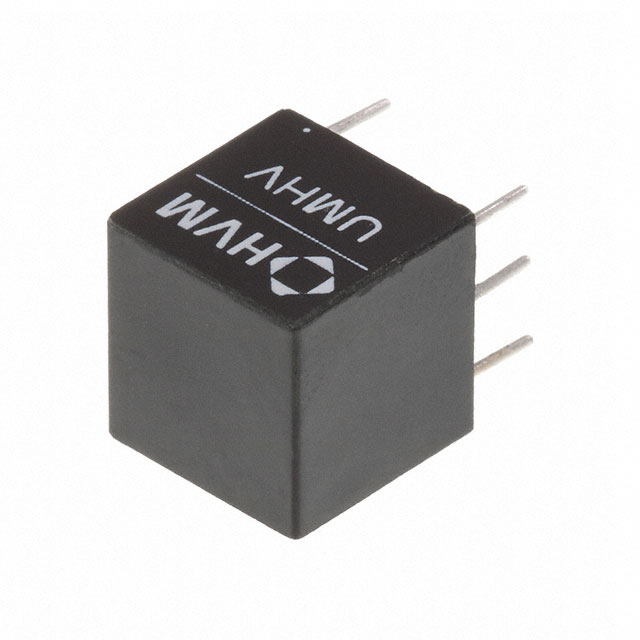

UMHV12 Series

Catalog

DC DC CONVERTER -2000V 500MW

Part	Applications	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Efficiency	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Type	Package / Case	Mounting Type
HVM Technology, Inc. UMHV1220N	ITE (Commercial)	500 V	-2000 V	-55 C	70 °C	1	55 %	250 µA	12.7 mm	0.5 in	12.7 mm	0.5 "	0.5 "	12.7 mm	10.8 V	0.5 W	13.2 V	High Voltage - Isolated Module	5-DIP Module	Through Hole
HVM Technology, Inc. UMHV1240	ITE (Commercial)	500 V	4000 V	-55 C	70 °C	1	55 %	125 µA	12.7 mm	0.5 in	12.7 mm	0.5 "	0.5 "	12.7 mm	10.8 V	0.5 W	13.2 V	High Voltage - Isolated Module	5-DIP Module	Through Hole
HVM Technology, Inc. UMHV1250	ITE (Commercial)	500 V	5000 V	-55 C	70 °C	1	55 %	100 µA	12.7 mm	0.5 in	12.7 mm	0.5 "	0.5 "	12.7 mm	10.8 V	0.5 W	13.2 V	High Voltage - Isolated Module	5-DIP Module	Through Hole
HVM Technology, Inc. UMHV1210	ITE (Commercial)	500 V	1000 V	-55 C	70 °C	1	55 %	0.5 mA	12.7 mm	0.5 in	12.7 mm	0.5 "	0.5 "	12.7 mm	10.8 V	0.5 W	13.2 V	High Voltage - Isolated Module	5-DIP Module	Through Hole
HVM Technology, Inc. UMHV1212N	ITE (Commercial)	500 V	-1200 V	-55 C	70 °C	1	55 %	417 µA	12.7 mm	0.5 in	12.7 mm	0.5 "	0.5 "	12.7 mm	10.8 V		13.2 V	High Voltage - Isolated Module	5-DIP Module	Through Hole
HVM Technology, Inc. UMHV1230N	ITE (Commercial)	500 V	-3000 V	-55 C	70 °C	1	55 %	167 µA	12.7 mm	0.5 in	12.7 mm	0.5 "	0.5 "	12.7 mm	10.8 V	0.5 W	13.2 V	High Voltage - Isolated Module	5-DIP Module	Through Hole
HVM Technology, Inc. UMHV1220	ITE (Commercial)	500 V	2000 V	-55 C	70 °C	1	55 %	250 µA	12.7 mm	0.5 in	12.7 mm	0.5 "	0.5 "	12.7 mm	10.8 V	0.5 W	13.2 V	High Voltage - Isolated Module	5-DIP Module	Through Hole
HVM Technology, Inc. UMHV1250N	ITE (Commercial)	500 V	-5000 V	-55 C	70 °C	1	55 %	100 µA	12.7 mm	0.5 in	12.7 mm	0.5 "	0.5 "	12.7 mm	10.8 V	0.5 W	13.2 V	High Voltage - Isolated Module	5-DIP Module	Through Hole
HVM Technology, Inc. UMHV1230	ITE (Commercial)	500 V	3000 V	-55 C	70 °C	1	55 %	167 µA	12.7 mm	0.5 in	12.7 mm	0.5 "	0.5 "	12.7 mm	10.8 V	0.5 W	13.2 V	High Voltage - Isolated Module	5-DIP Module	Through Hole
HVM Technology, Inc. UMHV1240N	ITE (Commercial)	500 V	-4000 V	-55 C	70 °C	1	55 %	125 µA	12.7 mm	0.5 in	12.7 mm	0.5 "	0.5 "	12.7 mm	10.8 V	0.5 W	13.2 V	High Voltage - Isolated Module	5-DIP Module	Through Hole
