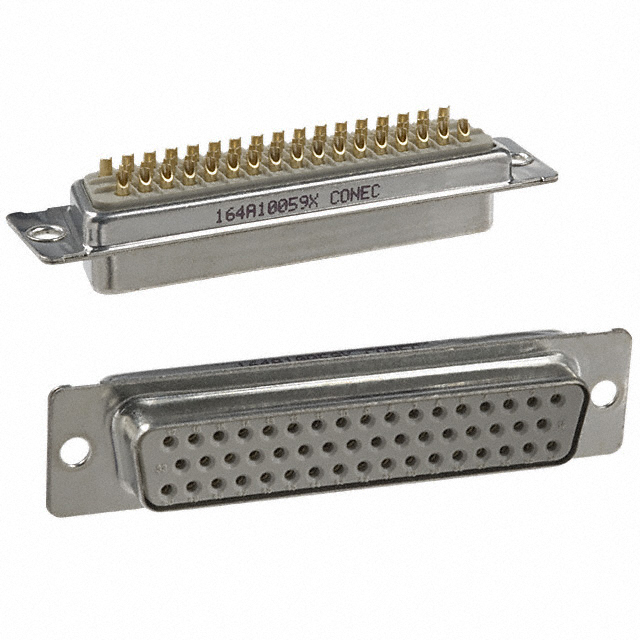

164A100 Series
Manufacturer: Amphenol CONEC
Beta
⌘K
D SUB CONN, RCPT, DE, SOLDER CUP ROHS COMPLIANT: YES
| Part | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Connector Style | Contact Material | Mounting Type | Number of Rows | Contact Type | Dielectric Material | Voltage Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Wire Gauge | Connector Type | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol CONEC | UL94 V-0 | 8 çin | 0.203 çm | Black | 9 | DE E | 1 | Gold | D-Sub | Copper Alloy | Free Hanging (In-Line) | 2 | Signal | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | 7.5 A | -55 °C | 125 °C | Housing/Shell (Unthreaded) | 20 AWG | Receptacle Female Sockets | |
 Amphenol CONEC | UL94 V-0 | 8 çin | 0.203 çm | Black | 50 | Gold | D-Sub | Copper Alloy | Free Hanging (In-Line) | 3 | Signal | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | 7.5 A | -55 °C | 125 °C | Housing/Shell (Unthreaded) | 20 AWG | Receptacle Female Sockets | 5 | ||
 Amphenol CONEC | UL94 V-0 | 8 çin | 0.203 çm | Black | 15 | Gold | D-Sub | Copper Alloy | Free Hanging (In-Line) | 2 | Signal | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | 7.5 A | -55 °C | 125 °C | Housing/Shell (Unthreaded) | 20 AWG | Receptacle Female Sockets | 2 |
