2271143 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN RCPT FMALE 4POS GOLD SOLDER
| Part | Number of Positions | Connector Type | Mounting Type | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert | Contact Finish - Mating | Applications | Primary Material | Current Rating (Amps) | Ingress Protection | Shell Finish | Color | Orientation | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Mounting Feature | Insert Material | Shielding | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

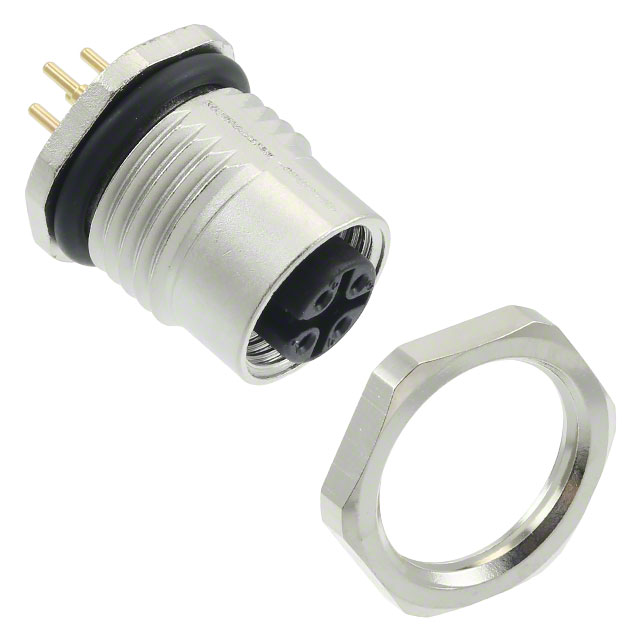

 TE Connectivity Raychem Cable Protection | 4 | Receptacle Female Sockets | Panel Mount Through Hole | Zinc Die Cast | 0.5 µm | 19.7 µin | M12-4 | Gold | Automotive Industrial | Metal | 4 A | IP68 - Dust Tight Waterproof | Nickel | Silver | A | 250 VAC | 85 °C | -40 °C | Solder | Bulkhead | |||

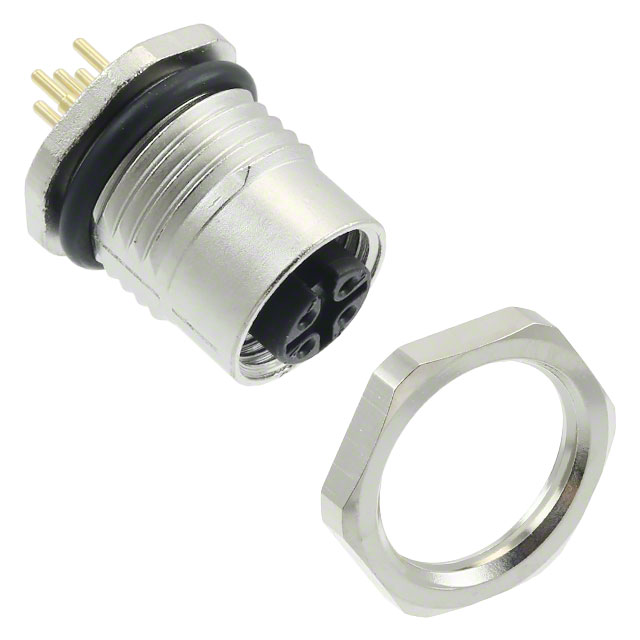

 TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | Panel Mount Through Hole | Zinc Die Cast | 0.5 µm | 19.7 µin | M12-5 | Gold | Automotive Industrial | Metal | 4 A | IP68 - Dust Tight Waterproof | Nickel | Silver | A | 125 VAC | 85 °C | -40 °C | Solder | Bulkhead | ||||

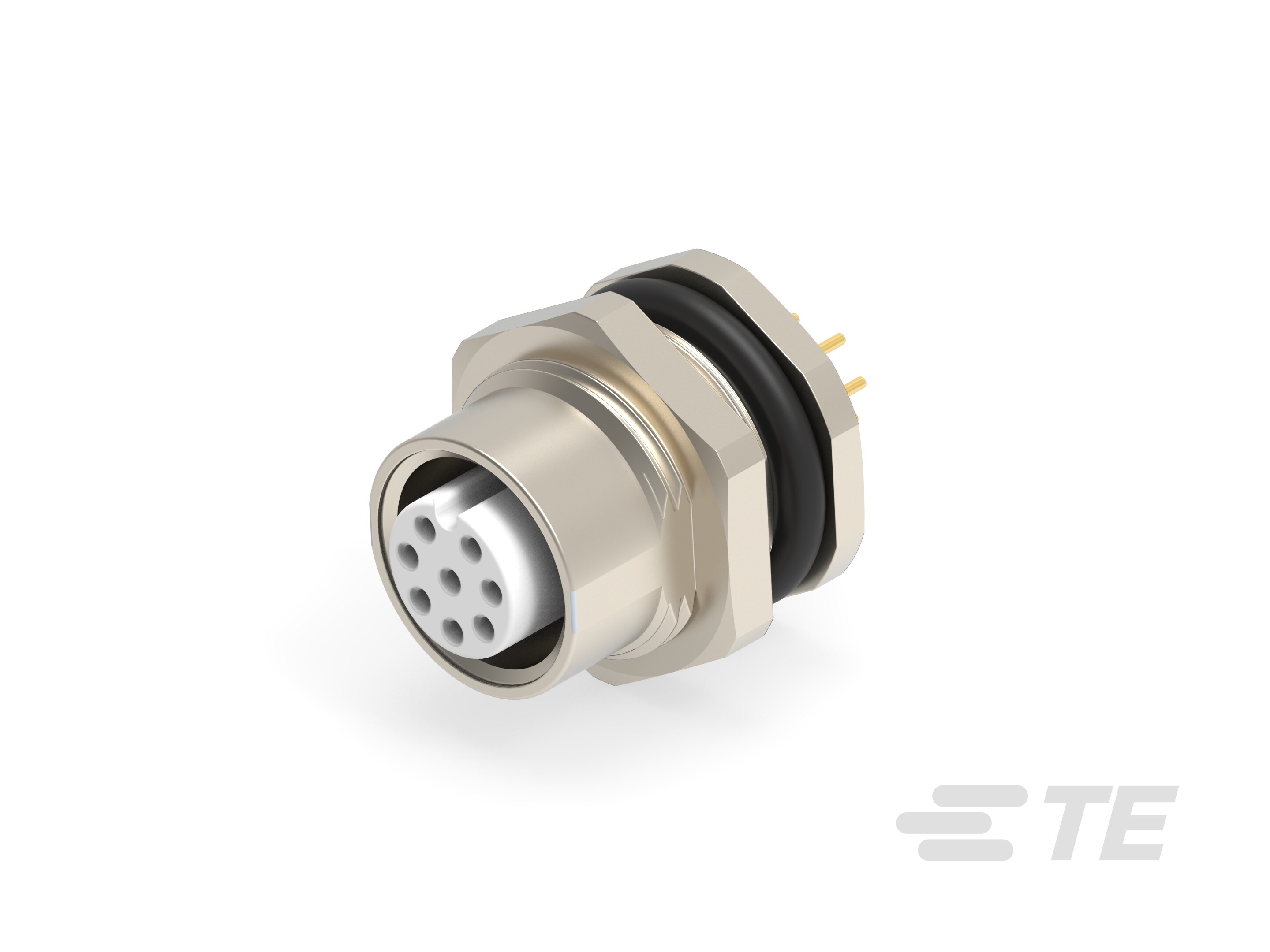

 TE Connectivity Raychem Cable Protection | 8 | Receptacle Female Sockets | Panel Mount Through Hole | Zinc Die Cast | 0.5 µm | 19.7 µin | M12-8 | Gold | Metal | 2 A | IP68 - Dust Tight Waterproof | Nickel | Silver | A | 60 VAC | 85 °C | -40 °C | Solder | Bulkhead - Front Side Nut | Nylon Polyamide (PA) | Unshielded | Bronze |
