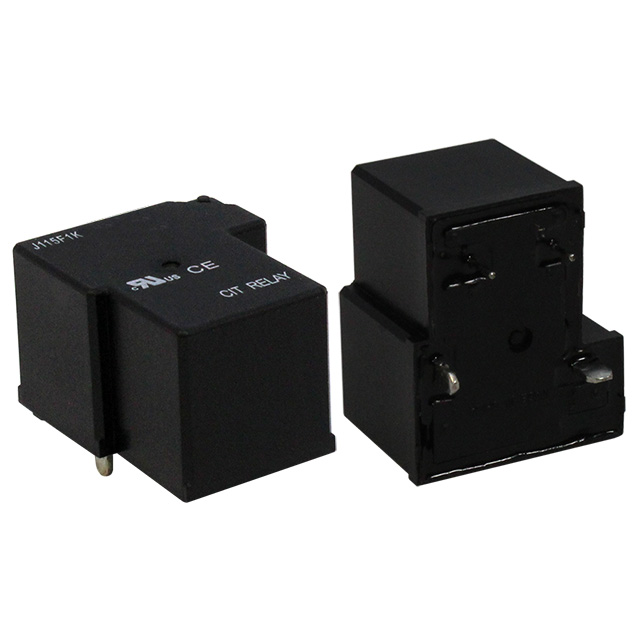

J115F1K Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPST 50A 24V
| Part | Coil Resistance | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Switching Voltage [Max] | Seal Rating | Load - Max Switching [Max] | Contact Form | Relay Type | Termination Style | Operate Time | Must Release Voltage | Contact Material | Must Operate Voltage | Coil Type | Contact Rating (Current) | Coil Voltage | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 256 Ohms | 10 ms | 125 °C | -40 C | Through Hole | 277 VAC | Sealed - Fully | 13850 VA | SPST-NO (1 Form A) | General Purpose | PC Pin | 15 ms | 2.4 VDC | Silver Tin Oxide (AgSnO) | 18 VDC | Non Latching | 50 A | 24 VDC | 93.8 mA |
CIT Relay and Switch | 64 Ohms | 10 ms | 125 °C | -40 C | Through Hole | 277 VAC | Sealed - Fully | 13850 VA | SPST-NO (1 Form A) | General Purpose | PC Pin | 15 ms | 1.2 VDC | Silver Tin Oxide (AgSnO) | 9 VDC | Non Latching | 35 A 50 A | 12 VDC | 187.5 mA |
CIT Relay and Switch | 64 Ohms | 10 ms | 125 °C | -40 C | Through Hole | 277 VAC | Sealed - Fully | 13850 VA | SPST-NO (1 Form A) | General Purpose | PC Pin | 15 ms | 1.2 VDC | Silver Tin Oxide (AgSnO) | 9 VDC | Non Latching | 50 A | 12 VDC | 187.5 mA |
CIT Relay and Switch | 256 Ohms | 10 ms | 125 °C | -40 C | Through Hole | 277 VAC | Sealed - Fully | 13850 VA | SPST-NO (1 Form A) | General Purpose | PC Pin | 15 ms | 2.4 VDC | Silver Tin Oxide (AgSnO) | 18 VDC | Non Latching | 50 A | 24 VDC | 93.8 mA |
