2305909 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
SMT TB PARALLEL PLUG, 5.0MM, 12
| Part | Voltage - UL | Pitch [x] | Pitch [x] | Housing Material | Type | Number of Positions | Insulation Height | Insulation Height | Termination Style | Color | Current - UL | Material Flammability Rating | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Number of Levels | Contact Material | Contact Mating Finish | Wire Strip Length | Mounting Type | Torque - Screw | Torque - Screw | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

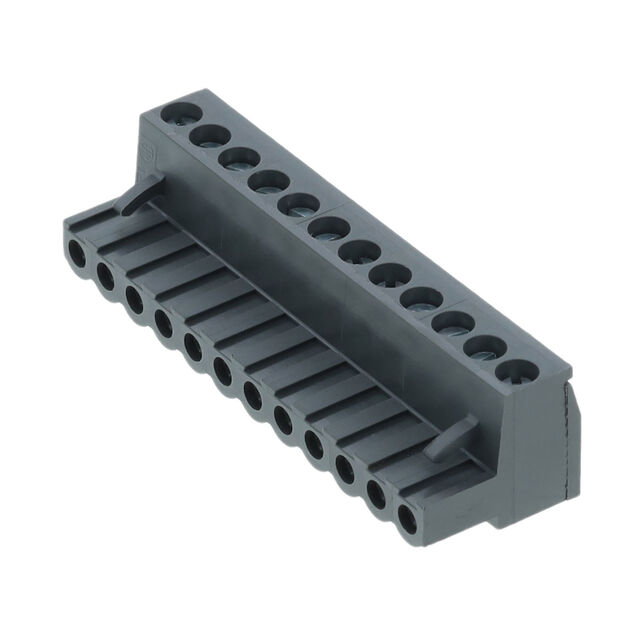

 TE Connectivity Raychem Cable Protection | 300 V | 5 mm | 0.197 in | Thermoplastic | Plug Female Sockets | 12 | 0.591 in | 15 mm | Screw | Black | 10 A | UL94 V-0 | 12 AWG | 26 AWG | 1 | Copper Alloy | Nickel | 7 mm | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | 12 |

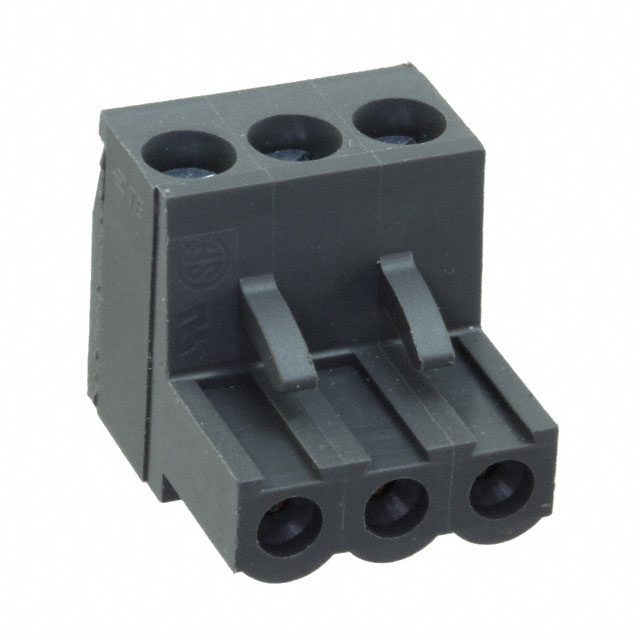

 TE Connectivity Raychem Cable Protection | 300 V | 5 mm | 0.197 in | Thermoplastic | Plug Female Sockets | 0.591 in | 15 mm | Screw | Black | UL94 V-0 | 12 AWG | 26 AWG | 1 | Copper Alloy | Nickel | 7 mm | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | 3 |
