M1253 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

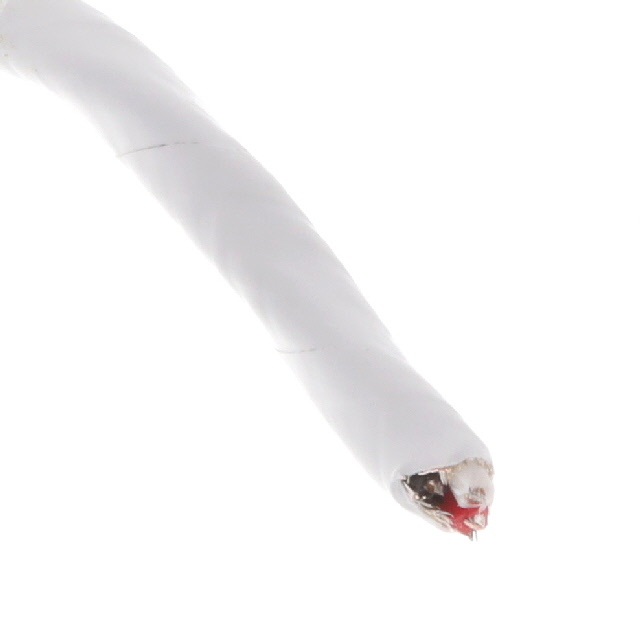

CABLE 3COND 16AWG WHITE SHLD
| Part | Shield Coverage | Shield Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Number of Conductors | Length | Length | Conductor Insulation | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Silver Coated | 600 V | 19 | 29 | 16 AWG | 200 °C | -55 C | Braid | 0.0118 in | 0.3 mm | White | 3 | 152.4 m | 500 ft | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | 0.219 " | 5.56 mm | Copper Tinned | Multi-Conductor | ||
ALPHA WIRE | 85 % | Copper Silver Coated | 600 V | 19 | 29 | 16 AWG | 200 °C | -55 C | Braid | 0.0118 in | 0.3 mm | White | 3 | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | 0.219 " | 5.56 mm | Copper Tinned | Multi-Conductor | 100 ft | 30.5 m |
