747908 Series

Catalog

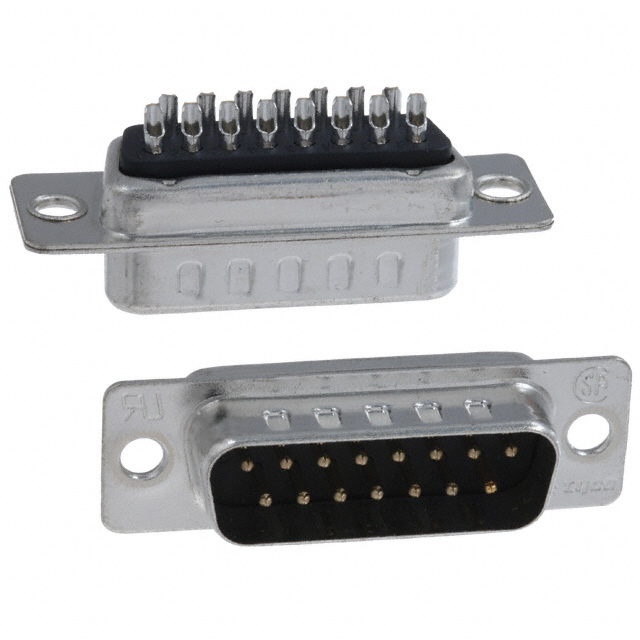

CONN D-SUB PLUG 15POS SLDR CUP

Part	Voltage Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Dielectric Material	Shell Size, Connector Layout	Features	Connector Style	Contact Finish	Mounting Type	Number of Rows [custom]	Current Rating (Amps)	Contact Type	Material Flammability Rating	Flange Feature	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 747908-9	250 V	Brass	-55 C	105 ░C	Black	Polybutylene Terephthalate (PBT) Glass Filled	2	Grounding Indents	D-Sub	Gold	Free Hanging (In-Line)	2	3 A	Signal	UL94 V-0	Housing/Shell (Unthreaded)	15	Plug Male Pins	0.203 çm	8 µin
TE Connectivity AMP Connectors 747908-2	250 V	Brass	-55 C	105 ░C	Black	Polybutylene Terephthalate (PBT) Glass Filled	2	Grounding Indents	D-Sub	Gold	Free Hanging (In-Line)	2	3 A	Signal	UL94 V-0	Housing/Shell (Unthreaded)	15	Plug Male Pins	0.203 çm	8 µin
