PBHV9110 Series

Catalog

NPN LOW VCE(SAT) TRANSISTOR

Part	Supplier Device Package	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Transition	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Transistor Type	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Grade	Operating Temperature	Qualification
Panjit International Inc. PBHV9110DA_R1_00001	SOT-23	SC-59 SOT-23-3 TO-236-3	100	Surface Mount	-55 °C	150 °C	100 MHz	1.25 W	1 A	PNP	500 nA	600 mV	100 V

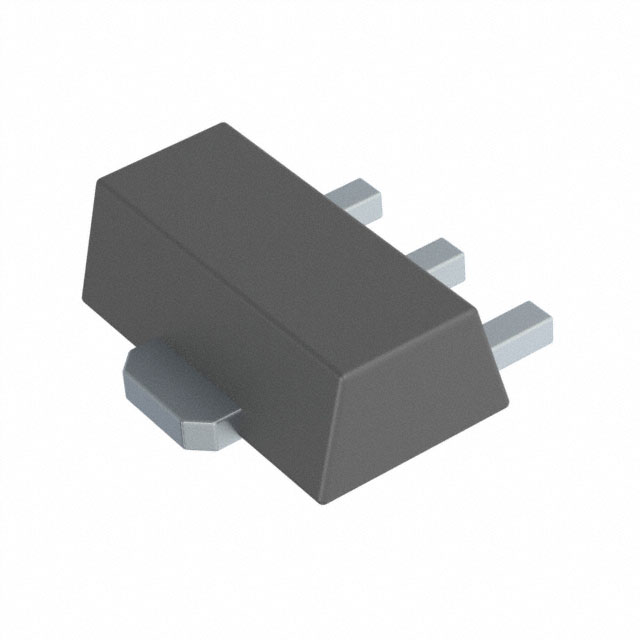

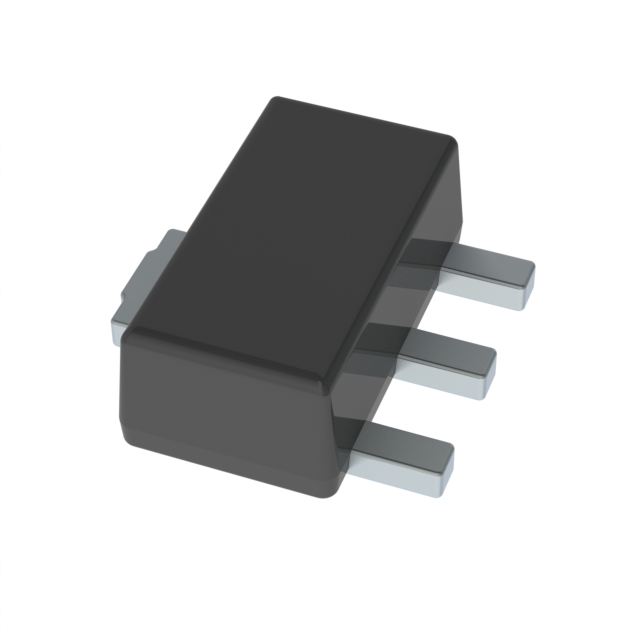

Panjit International Inc. PBHV9110DH-AU_R1_000A1		TO-243AA	140 hFE	Surface Mount			100 MHz	1.4 W	1 A	PNP	500 nA	600 mV	100 V	Automotive	150 °C	AEC-Q101
Panjit International Inc. PBHV9110DH_R1_00001		TO-243AA	140 hFE	Surface Mount	-55 °C	150 °C	100 MHz	1.4 W	1 A	PNP	500 nA	600 mV	100 V
Panjit International Inc. PBHV9110DA-AU_R1_000A1	SOT-23	SC-59 SOT-23-3 TO-236-3	140 hFE	Surface Mount			100 MHz	1.25 W	1 A	PNP	500 nA	600 mV	100 V	Automotive	150 °C	AEC-Q101
