VE-JWT Series

Catalog

DC DC CONVERTER 6.5V 50W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Features	Power (Watts)	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Isolation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Efficiency	Type	Size / Dimension [z]	Size / Dimension [y]
Vicor Corporation VE-JWT-IY-S	57.9 mm	1.8 in	45.7 mm	0.52 "	13.2 mm	2.28 in	Through Hole	OCP SCP	50 W	Half Brick	18 V	36 V	7.69 A	1	3000 V	ITE (Commercial)	100 °C	-40 °C	6.5 V	90 %	Isolated Module

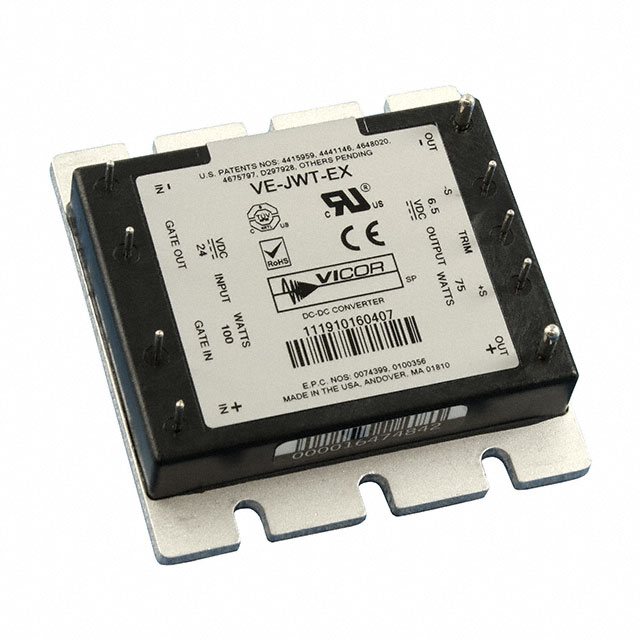

Vicor Corporation VE-JWT-EX	57.9 mm	2.4 "		0.5 in		2.28 in	Through Hole	OCP SCP	75 W	Half Brick	18 V	36 V	11.54 A	1	3000 V	ITE (Commercial)			6.5 V	88 %	Isolated Module	12.7 mm	70 mm
