AS5145 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K
ROTARY ENCODER MAGNETIC 1024PPR
| Part | Termination Style | Encoder Type | Actuator Type | Grade | Voltage - Supply [Max] | Voltage - Supply [Min] | Qualification | Built in Switch | Detent | Pulses per Revolution | Mounting Type | Output Type | Supplied Contents | Interface | Sensing Range | Utilized IC / Part | Sensor Type | Contents | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | SMD (SMT) Tab | Magnetic | External Magnet Not Included | Automotive | 3.6 V 5.5 V | 3 V 4.5 V | AEC-Q100 | 4096 | Surface Mount | Quadrature (Incremental) | |||||||||

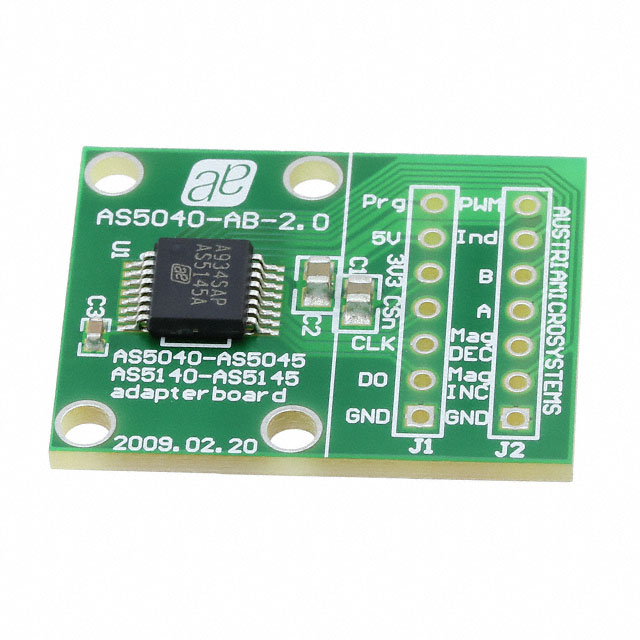

 ams-OSRAM USA INC. | Board(s) | Serial | 360 ° | AS5145 | Magnetic Rotary Position | Board(s) | 3.3 V 5 VDC |
