WR-80PB Series
Manufacturer: JAE Electronics
Beta
⌘K

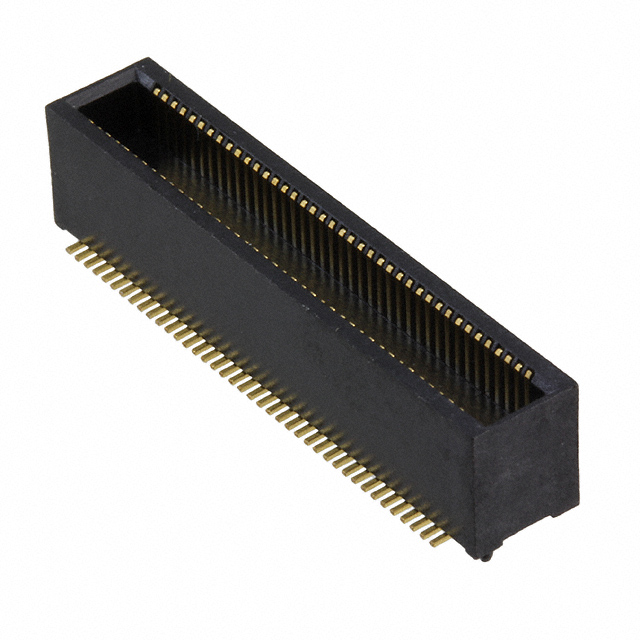

CONN PLUG 80POS SMD GOLD
| Part | Height Above Board [z] | Height Above Board [z] | Mounting Type | Number of Rows [custom] | Mated Stacking Heights | Features | Connector Type | Number of Positions | Pitch | Pitch | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 0.157 in | 4 mm | Surface Mount | 2 | 5 mm 5.5 mm 8 mm | Board Guide | Plug Outer Shroud Contacts | 80 | 0.02 " | 0.5 mm | Gold | 0.1 Ám | 4 Áin | ||
JAE Electronics | Surface Mount | 2 | 6 mm 6.5 mm 9 mm | Board Guide | Plug Outer Shroud Contacts | 80 | 0.02 " | 0.5 mm | Gold | 0.1 Ám | 4 Áin | 5 mm | 0.197 in | ||
 JAE Electronics | Surface Mount | 2 | 6 mm 6.5 mm 9 mm | Board Guide | Plug Outer Shroud Contacts | 80 | 0.02 " | 0.5 mm | Gold | 0.1 Ám | 4 Áin | 5 mm | 0.197 in |
