L235-3580 Series
Manufacturer: Lumileds
Beta
⌘K

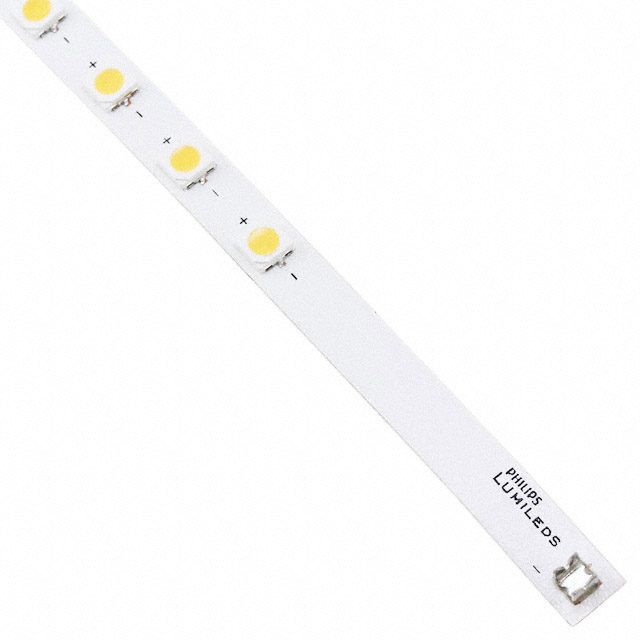

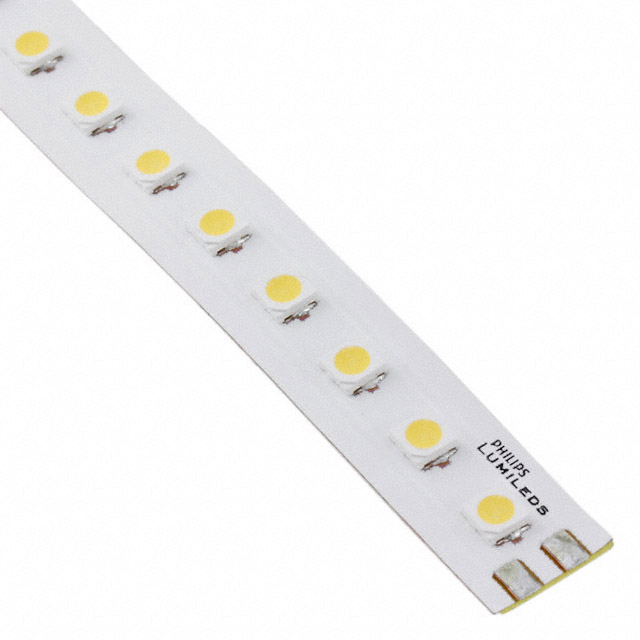

LED LIGHT BARS & LIGHT STRIPS WHITE 3500 K, 80-CRI LUXEON XF-3535L
| Part | Lumens/Watt @ Current - Test | Current - Test | Height [z] | CCT (K) | Type | Voltage - Forward (Vf) (Typ) | Current - Max [Max] | Size / Dimension [custom] | Size / Dimension [y] | Size / Dimension [x] | CRI (Color Rendering Index) | Temperature - Test | Lens Type | Luminous Flux @ Current/Temperature | Configuration | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 143 lm/W | 600 mA | 1.23 mm | 3500 K | LED Module | 18 V | 1.2 A | 100 mm | 10 mm | 600 mm | 80 | 25 °C | Flat | 1548 lm | Linear Light Strip Flexible | Warm White | |
 Lumileds | 143 lm/W | 900 mA | 1.23 mm | 3500 K | LED Module | 36 V | 1.8 A | 5.25 mm | 1150 mm | 80 | 25 °C | Flat | 4644 lm | Linear Light Strip Flexible | Warm White | ||
 Lumileds | 143 lm/W | 600 mA | 1.23 mm | 3500 K | LED Module | 18 V | 1.2 A | 10 mm | 300 mm | 80 | 25 °C | Flat | 1548 lm | Linear Light Strip Flexible | Warm White | 100.00mm L per Segment |
