170335 Series

Manufacturer: Molex

Catalog

IMPACT 85 OHM PLUS 4 PAIR VERTICAL HEADER, UNGUIDED, OPEN END WALLS, 10 COLUMNS, 120 CIRCUITS, PIN LENGTH 5.50MM, PLATED THROUGH HOLE DIMENSION 0.39MM, LEAD-FREE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Number of Rows	Connector Style	Contact Finish	Number of Positions	Number of Columns	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Color	Connector Type	Termination	Contact Layout, Typical	Number of Positions [custom]	Contact Layout, Typical

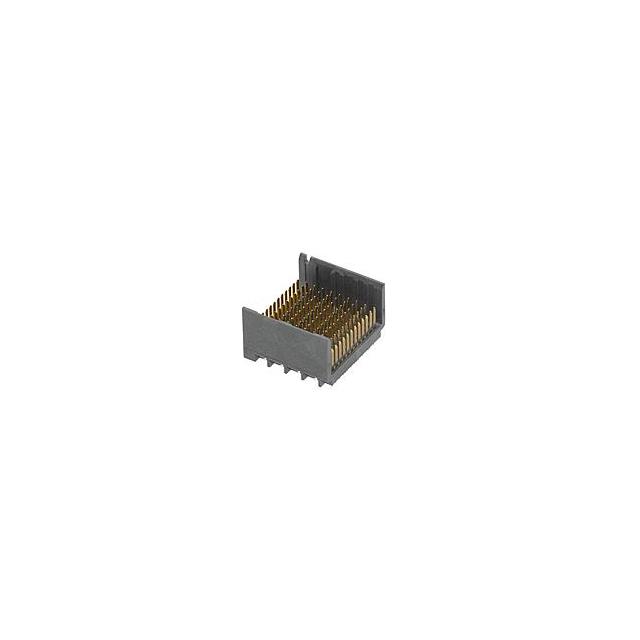

Molex 1703351108	-55 C	85 °C	UL94 V-0	All	12	Impact	Gold	120	10	30 Áin	0.76 Ám	Through Hole	Gray	Header Male Pins	Press-Fit	24 Differential Pairs
Molex 1703351605	-55 C	85 °C	UL94 V-0	All	12	Impact	Gold	192	16	30 Áin	0.76 Ám	Through Hole	Gray	Header Male Pins	Press-Fit	64 Differential Pairs
Molex 1703351208	-55 C	85 °C	UL94 V-0	All	12	Impact	Gold	144	12	30 Áin	0.76 Ám	Through Hole	Gray	Header Male Pins	Press-Fit	48 Differential Pairs
Molex 1703357207
Molex 1703351407	-55 C	85 °C	UL94 V-0	All	12	Impact	Gold		14	30 Áin	0.76 Ám	Through Hole	Gray	Header Male Pins	Press-Fit	56 Differential Pairs	168
Molex 1703353127				All	12	Impact Guide Left	Gold	120	10	30 Áin	0.76 Ám	Through Hole	Gray	Header Male Pins	Press-Fit			40
Molex 1703351217	-55 C	85 °C	UL94 V-0	All	12	Impact	Gold	144	12	30 Áin	0.76 Ám	Through Hole	Gray	Header Male Pins	Press-Fit	48 Differential Pairs

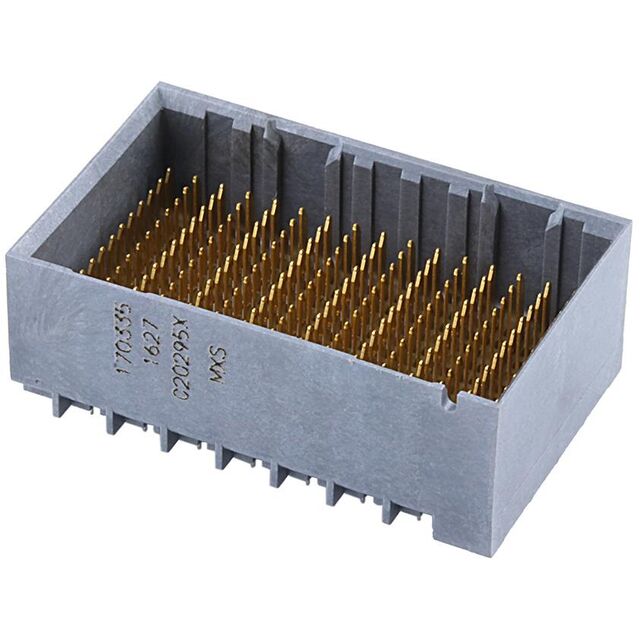

Molex 1703351627	-55 C	85 °C	UL94 V-0	All	12	Impact	Gold	192	16	30 Áin	0.76 Ám	Through Hole	Gray	Header Male Pins	Press-Fit	64 Differential Pairs

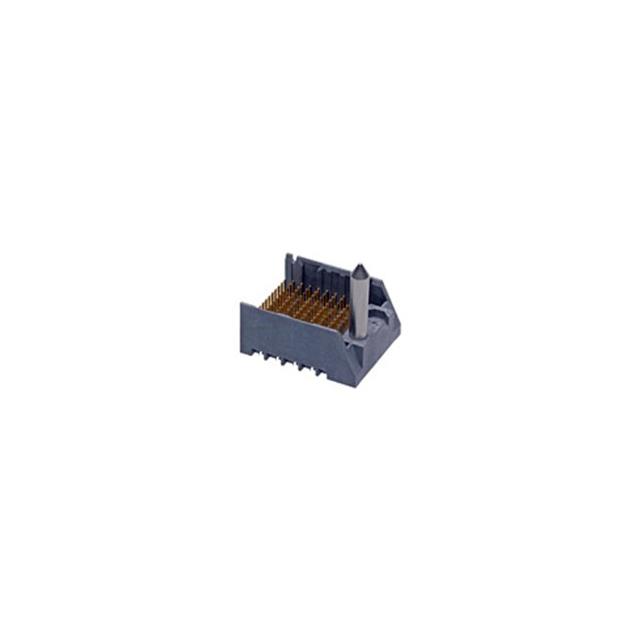

Molex 1703355106	-55 C	85 °C	UL94 V-0	All	12		Gold	120	10	30 Áin	0.76 Ám	Through Hole	Gray	Header Male Pins	Press-Fit			40
Molex 1703359407	-55 C	85 °C	UL94 V-0	All	12		Gold		14	30 Áin	0.76 Ám	Through Hole	Gray	Header Male Pins	Press-Fit	56 Differential Pairs	168
