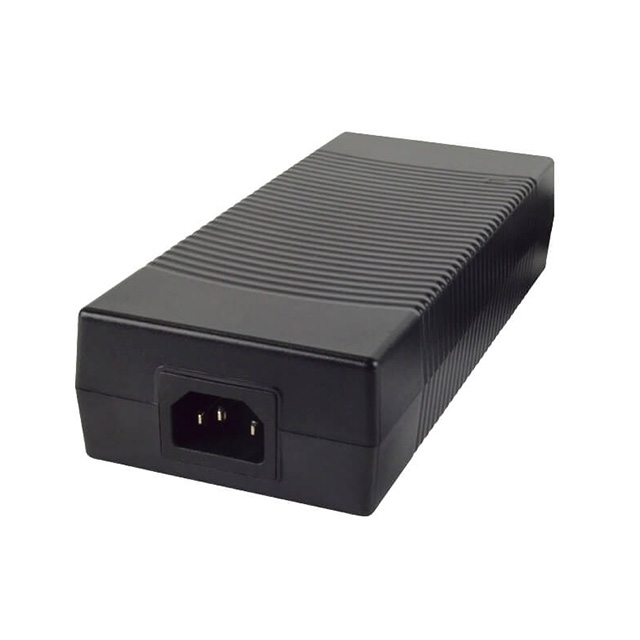

SDI200 Series

Manufacturer: CUI Inc.

Catalog

AC/DC DESKTOP ADAPTER 56V 202W

Part	Form	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption	Current - Output (Max) [Max]	Standard Number	Voltage - Output	Region Utilized	Power (Watts)	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Efficiency	Cord Length	Cord Length	Input Connector	Input Type	Applications	Approval Agency	Weight	Weight

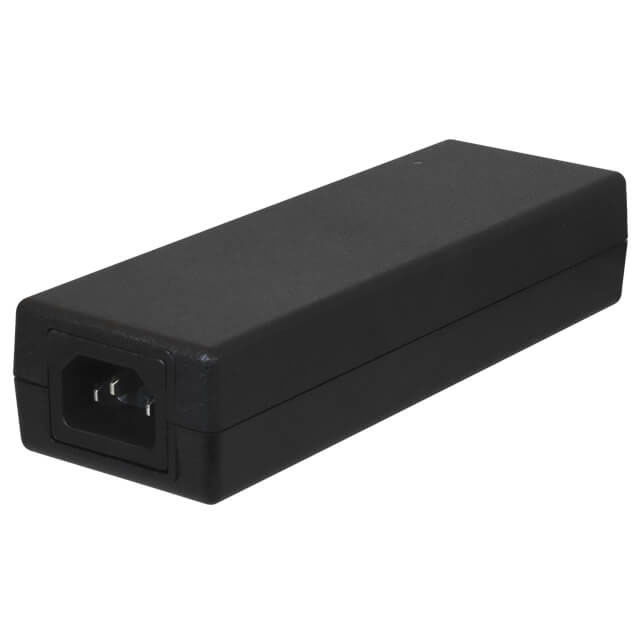

CUI Inc. SDI200G-56-U-P51	Desktop (Class I)	54.2 mm	6.34 in	2.13 in	1.31 "	161 mm	33.2 mm	210 mW	3.6 A	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	56 V	International	202 W	40 °C	100 VAC	240 VAC	Power DIN 4 Pin	Level VI	1.5 m	59 in	IEC 320-C14	Cord (Sold Separately)	ITE (Commercial)	EN FCC PSE UL
CUI Inc. SDI200G-18-U-P51	Desktop (Class I)	54.2 mm	6.34 in	2.13 in	1.31 "	161 mm	33.2 mm	210 mW	11.1 A	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	18 V	International	200 Watts	40 °C	100 VAC	240 VAC	Power DIN 4 Pin	Level VI	1.5 m	59 in	IEC 320-C14	Cord (Sold Separately)	ITE (Commercial)	EN FCC PSE UL
CUI Inc. SDI200-24-U-P51	Desktop (Class I)	81 mm	7.21 in	3.19 "	1.67 in	183.2 mm	42.3 mm	150 mW	8.3 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	24 V	International	199 W	40 °C	90 VAC	264 VAC	Power DIN 4 Pin	CoC Tier 2 Level VI	1.5 m	59 in	IEC 320-C14	Cord (Sold Separately)	ITE (Commercial)	CB Scheme CSA EN FCC IEC PSE UL	1.808 lb	820 g
CUI Inc. SDI200-48-U-P51	Desktop (Class I)	81 mm	7.21 in	3.19 "	1.67 in	183.2 mm	42.3 mm	150 mW	4.17 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	48 V	International	200 Watts	40 °C	90 VAC	264 VAC	Power DIN 4 Pin	CoC Tier 2 Level VI	1.5 m	59 in	IEC 320-C14	Cord (Sold Separately)	ITE (Commercial)	CB Scheme CSA EN FCC IEC PSE UL	1.808 lb	820 g
CUI Inc. SDI200G-19-U-P51	Desktop (Class I)	54.2 mm	6.34 in	2.13 in	1.31 "	161 mm	33.2 mm	210 mW	10.5 A	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	19 V	International	200 Watts	40 °C	100 VAC	240 VAC	Power DIN 4 Pin	Level VI	1.5 m	59 in	IEC 320-C14	Cord (Sold Separately)	ITE (Commercial)	EN FCC PSE UL
CUI Inc. SDI200-24-U2-P51	Desktop (Class I)	81 mm	7.21 in	3.19 "	1.67 in	183.2 mm	42.3 mm	150 mW	8.3 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	24 V	Europe	199 W	40 °C	90 VAC	264 VAC	Power DIN 4 Pin	CoC Tier 2 Level VI	1.5 m	59 in	IEC 320-C14	Cord (Sold Separately)	ITE (Commercial)	CB Scheme CSA EN FCC IEC PSE UL	1.808 lb	820 g
CUI Inc. SDI200G-48-U-P51	Desktop (Class I)	54.2 mm	6.34 in	2.13 in	1.31 "	161 mm	33.2 mm	210 mW	4.2 A	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	48 V	International	202 W	40 °C	100 VAC	240 VAC	Power DIN 4 Pin	Level VI	1.5 m	59 in	IEC 320-C14	Cord (Sold Separately)	ITE (Commercial)	EN FCC PSE UL
CUI Inc. SDI200-13.5-UC-P51	Desktop (Class I)	81 mm	7.21 in	3.19 "	1.67 in	183.2 mm	42.3 mm	210 mW	14 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	13.5 V	North America	189 W	40 °C	90 VAC	264 VAC	Power DIN 4 Pin	CoC Tier 2 Level VI	1.2 m	47.2 in	IEC 320-C14	Cord (Sold Separately)	ITE (Commercial)	CB Scheme CSA EN FCC IEC PSE UL	1.808 lb	820 g
CUI Inc. SDI200-19-U-P51	Desktop (Class I)	81 mm	7.21 in	3.19 "	1.67 in	183.2 mm	42.3 mm	210 mW	10.5 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	19 V	International	200 Watts	40 °C	90 VAC	264 VAC	Power DIN 4 Pin	CoC Tier 2 Level VI	1.5 m	59 in	IEC 320-C14	Cord (Sold Separately)	ITE (Commercial)	CB Scheme CSA EN FCC IEC PSE UL	1.808 lb	820 g

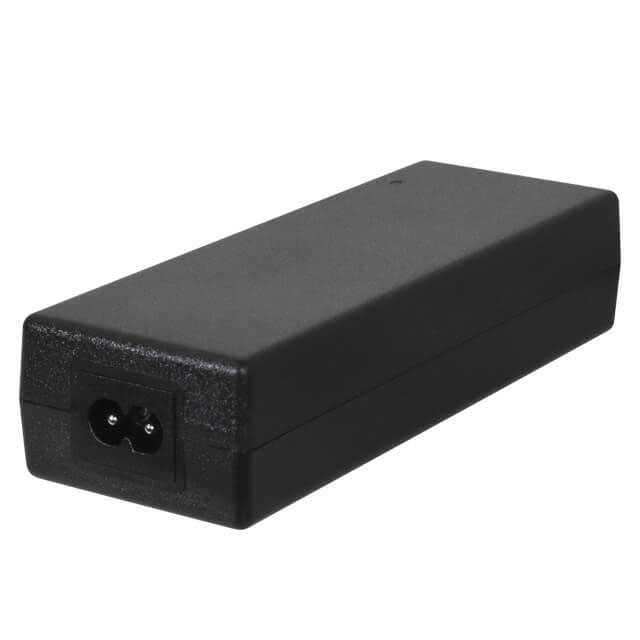

CUI Inc. SDI200G-12-UD-P51	Desktop (Class II)	54 mm	5.91 in	2.13 in	1.3 in	150 mm	33 mm	210 mW	16 A	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	12 V	International	192 W	40 °C	100 VAC	240 VAC	Power DIN 4 Pin	Level VI	1.2 m	47.2 in	IEC 320-C8	Cord (Sold Separately)	ITE (Commercial)	EN FCC PSE UL
