MB8020 Series

Catalog

FAN AXIAL 80X20MM 12VDC WIRE

Part	Material - Blade	Termination	Voltage - Rated	Weight	Weight	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Features	Fan Type	Approval Agency	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	RPM	Static Pressure	Static Pressure	Noise
Mechatronics Fan Group MB8020E12B1-FS	Polybutylene Terephthalate (PBT)	3 Wire Leads	12 VDC	62.14 g	0.137 lb	20 mm	80 mm	80 mm	Ball	Speed Sensor (Tach)	Tubeaxial	cUL UL

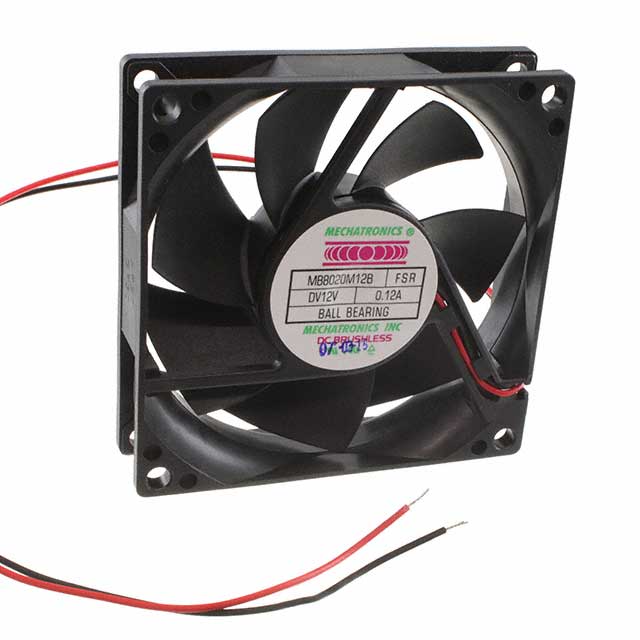

Mechatronics Fan Group MB8020M12B-FSR	Polybutylene Terephthalate (PBT)	2 Wire Leads	12 VDC	62.14 g	0.137 lb	20 mm	80 mm	80 mm	Ball		Tubeaxial	cUL UL	120 mA	13.8 VDC	6 VDC	26.9 CFM	0.753 m³/min	2500 RPM	19.9 Pa	0.08 in H2O	29 dB(A)
Mechatronics Fan Group MB8020M12B-FS	Polybutylene Terephthalate (PBT)	2 Wire Leads	12 VDC	62.14 g	0.137 lb	20 mm	80 mm	80 mm	Ball		Tubeaxial	cUL UL	120 mA	13.8 VDC	6 VDC	26.9 CFM	0.753 m³/min	2500 RPM	19.9 Pa	0.08 in H2O	29 dB(A)
