317-036 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Number of Positions/Bay/Row [custom]	Number of Rows [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Contact Type	Termination	Contact Material	Color	Read Out	Number of Positions	Gender	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Finish	Pitch	Pitch	Flange Feature	Number of Positions/Bay/Row	Features

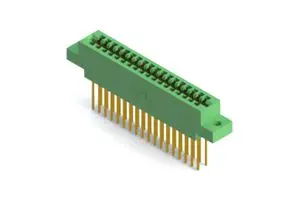

EDAC Inc. 317-036-540-804	Diallyl Phthalate (DAP)	18	2	Through Hole	-65 ░C	125 °C	0.25 Ám	10 Áin	0.156 "	3.96 mm	Cantilever	Wire Wrap	Copper Alloy	Green	Dual	36	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in
EDAC Inc. 317-036-541-608	Diallyl Phthalate (DAP)		2	Through Hole	-65 ░C	125 °C	0.25 Ám	10 Áin			Cantilever	Wire Wrap	Copper Alloy	Green	Single	72	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening	36
EDAC Inc. 317-036-540-808	Diallyl Phthalate (DAP)	18	2	Through Hole	-65 ░C	125 °C	0.25 Ám	10 Áin			Cantilever	Wire Wrap	Copper Alloy	Green	Dual	36	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening

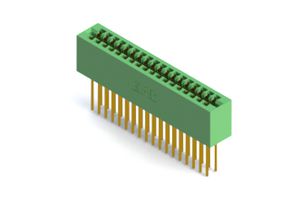

EDAC Inc. 317-036-540-801	Diallyl Phthalate (DAP)	18	2	Through Hole	-65 ░C	125 °C	0.25 Ám	10 Áin			Cantilever	Wire Wrap	Copper Alloy	Green	Dual	36	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in
EDAC Inc. 317-036-542-804	Diallyl Phthalate (DAP)	18	2	Through Hole	-65 ░C	125 °C	0.25 Ám	10 Áin	0.156 "	3.96 mm	Cantilever	Wire Wrap	Copper Alloy	Green	Dual	36	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in

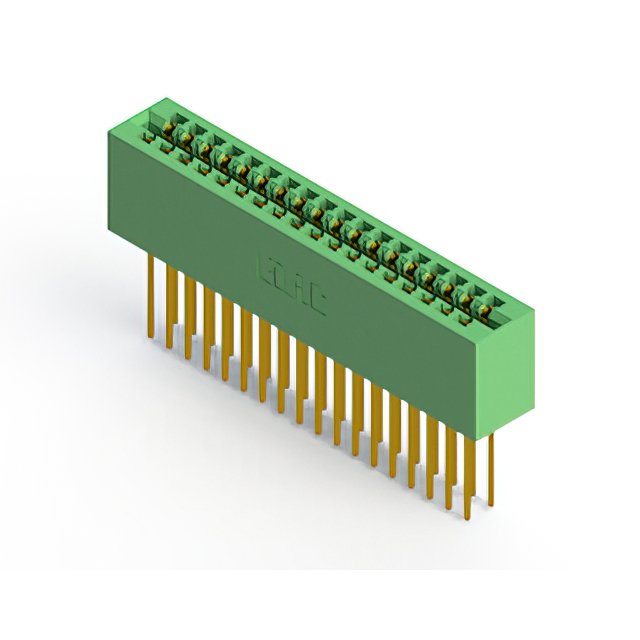

EDAC Inc. 317-036-542-801	Diallyl Phthalate (DAP)	18	2	Through Hole	-65 ░C	125 °C	0.25 Ám	10 Áin			Cantilever	Wire Wrap	Copper Alloy	Green	Dual	36	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in
EDAC Inc. 317-036-541-604	Diallyl Phthalate (DAP)		2	Through Hole	-65 ░C	125 °C	0.25 Ám	10 Áin	0.156 "	3.96 mm	Cantilever	Wire Wrap	Copper Alloy	Green	Single	72	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in		36
EDAC Inc. 317-036-541-602	Diallyl Phthalate (DAP)		2	Through Hole	-65 ░C	125 °C	0.25 Ám	10 Áin			Cantilever	Wire Wrap	Copper Alloy	Green	Single	72	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in		36
EDAC Inc. 317-036-540-878	Diallyl Phthalate (DAP)	18	2	Through Hole	-65 ░C	125 °C	0.25 Ám	10 Áin			Cantilever	Wire Wrap	Copper Alloy	Green	Dual	36	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening		Card Guides

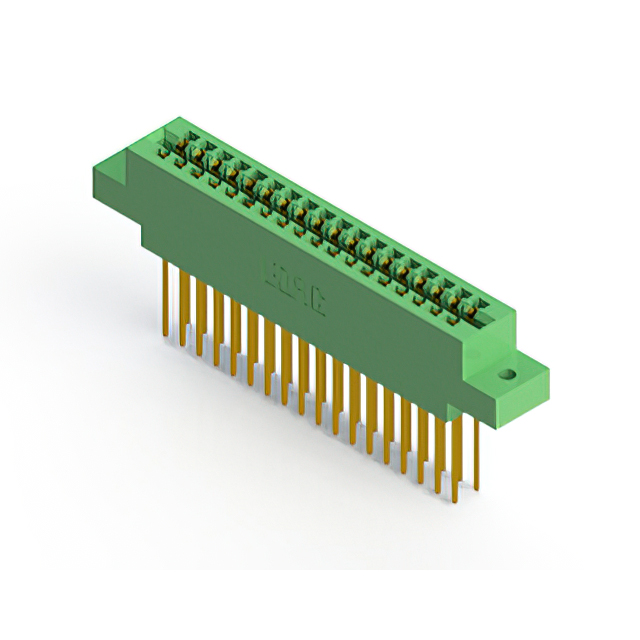

EDAC Inc. 317-036-542-802	Diallyl Phthalate (DAP)	18	2	Through Hole	-65 ░C	125 °C	0.25 Ám	10 Áin			Cantilever	Wire Wrap	Copper Alloy	Green	Dual	36	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in
