ECM14 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN CARDEDGE MALE 28POS 0.156

Part	Material - Insulation	Pitch	Pitch	Number of Positions/Bay/Row	Contact Material	Number of Positions	Contact Finish	Termination	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Number of Rows [custom]	Read Out	Mounting Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
Sullins Connector Solutions ECM14MMWN	Polybutylene Terephthalate (PBT)	3.96 mm	0.156 in	14	Phosphor Bronze	28	Gold	Solder	1.57 mm	0.062 in	30 Áin	0.76 Ám	Male	-65 ░C	125 °C	Fits Female Edgecards	2	Dual	Through Hole
Sullins Connector Solutions ECM14MMVD-S189	Polybutylene Terephthalate (PBT)	3.96 mm	0.156 in	14	Phosphor Bronze	28	Gold	Solder	1.57 mm	0.062 in	30 Áin	0.76 Ám	Male	-65 ░C	125 °C	Fits Female Edgecards	2	Dual	Right Angle Through Hole	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "

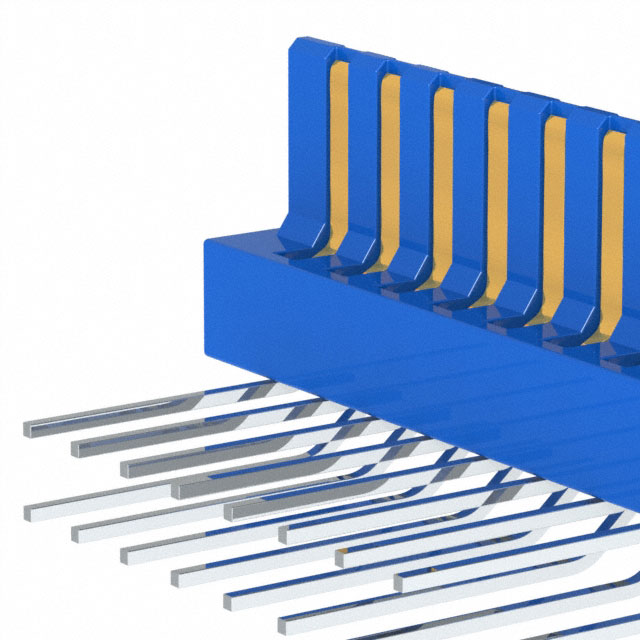

Sullins Connector Solutions ECM14MMJN	Polybutylene Terephthalate (PBT)	3.96 mm	0.156 in	14	Phosphor Bronze	28	Gold	Solder	1.57 mm	0.062 in	30 Áin	0.76 Ám	Male	-65 ░C	125 °C	Fits Female Edgecards	2	Dual	Right Angle Through Hole

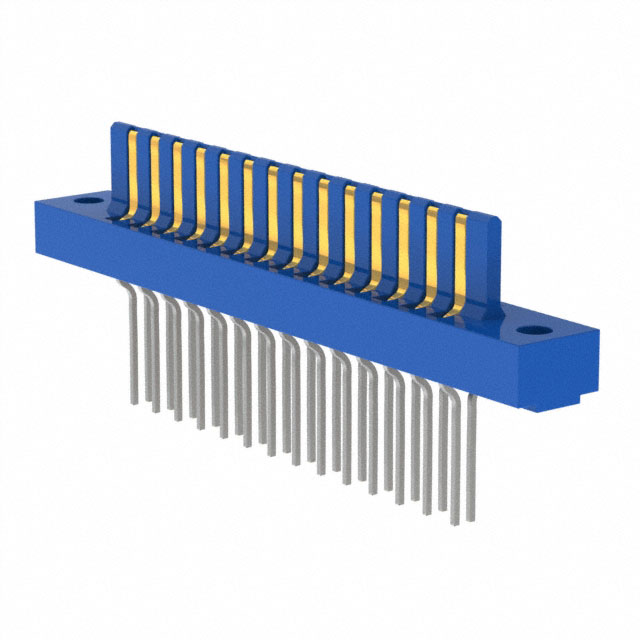

Sullins Connector Solutions ECM14MMND	Polybutylene Terephthalate (PBT)	3.96 mm	0.156 in	14	Phosphor Bronze	28	Gold	Solder	1.57 mm	0.062 in	30 Áin	0.76 Ám	Male	-65 ░C	125 °C	Fits Female Edgecards	2	Dual	Board Edge Straddle Mount	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	Card Extender
Sullins Connector Solutions ECM14MMVN-S189	Polybutylene Terephthalate (PBT)	3.96 mm	0.156 in	14	Phosphor Bronze	28	Gold	Solder	1.57 mm	0.062 in	30 Áin	0.76 Ám	Male	-65 ░C	125 °C	Fits Female Edgecards	2	Dual	Right Angle Through Hole
Sullins Connector Solutions ECM14MMVD	Polybutylene Terephthalate (PBT)	3.96 mm	0.156 in	14	Phosphor Bronze	28	Gold	Solder	1.57 mm	0.062 in	30 Áin	0.76 Ám	Male	-65 ░C	125 °C	Fits Female Edgecards	2	Dual	Right Angle Through Hole	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ECM14MMRD	Polybutylene Terephthalate (PBT)	3.96 mm	0.156 in	14	Phosphor Bronze	28	Gold	Solder	1.57 mm	0.062 in	30 Áin	0.76 Ám	Male	-65 ░C	125 °C	Fits Female Edgecards	2	Dual	Board Edge Straddle Mount	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	Card Extender
Sullins Connector Solutions ECM14MMAN	Polybutylene Terephthalate (PBT)	3.96 mm	0.156 in	14	Phosphor Bronze	28	Gold	Solder	1.57 mm	0.062 in	30 Áin	0.76 Ám	Male	-65 ░C	125 °C	Fits Female Edgecards	2	Dual	Right Angle Through Hole
Sullins Connector Solutions ECM14MMWD	Polybutylene Terephthalate (PBT)	3.96 mm	0.156 in	14	Phosphor Bronze	28	Gold	Solder	1.57 mm	0.062 in	30 Áin	0.76 Ám	Male	-65 ░C	125 °C	Fits Female Edgecards	2	Dual	Through Hole	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ECM14MMAD	Polybutylene Terephthalate (PBT)	3.96 mm	0.156 in	14	Phosphor Bronze	28	Gold	Solder	1.57 mm	0.062 in	30 Áin	0.76 Ám	Male	-65 ░C	125 °C	Fits Female Edgecards	2	Dual	Right Angle Through Hole	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
