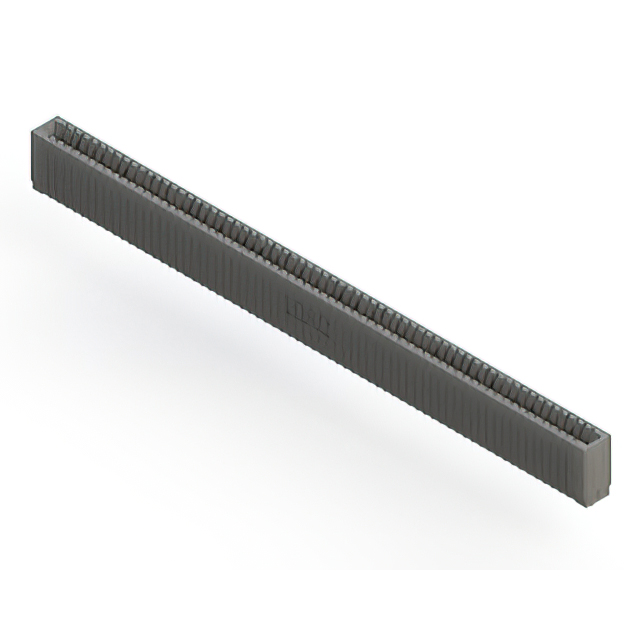

745-067 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 67POS 0.100

Part	Material - Insulation	Termination Rows	Card Thickness [Max]	Card Thickness [Min]	Read Out	Card Type	Number of Positions/Bay/Row	Pitch	Pitch	Color	Contact Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Material	Number of Positions	Contact Type	Termination	Gender	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 745-067-540-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	67	0.1 "	2.54 mm	Black	Gold	Through Hole	-40 C	105 ░C	1	Copper Alloy	67	Cantilever	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám
EDAC Inc. 745-067-541-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	67	0.1 "	2.54 mm	Black	Gold	Through Hole	-40 C	105 ░C	1	Copper Alloy	67	Cantilever	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám
EDAC Inc. 745-067-540-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	67	0.1 "	2.54 mm	Black	Gold	Through Hole	-40 C	105 ░C	1	Copper Alloy	67	Cantilever	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám
EDAC Inc. 745-067-522-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	67	0.1 "	2.54 mm	Black	Gold	Through Hole	-40 C	105 ░C	1	Copper Alloy	67	Cantilever	Press-Fit	Female	30 Áin	0.76 Ám
EDAC Inc. 745-067-545-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	67	0.1 "	2.54 mm	Black	Gold	Through Hole	-40 C	105 ░C	1	Copper Alloy	67	Cantilever	Press-Fit	Female	30 Áin	0.76 Ám
EDAC Inc. 745-067-525-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	67	0.1 "	2.54 mm	Black	Gold	Through Hole	-40 C	105 ░C	1	Copper Alloy	67	Cantilever	Press-Fit	Female	30 Áin	0.76 Ám
EDAC Inc. 745-067-541-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	67	0.1 "	2.54 mm	Black	Gold	Through Hole	-40 C	105 ░C	1	Copper Alloy	67	Cantilever	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám
EDAC Inc. 745-067-545-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	67	0.1 "	2.54 mm	Black	Gold	Through Hole	-40 C	105 ░C	1	Copper Alloy	67	Cantilever	Press-Fit	Female	30 Áin	0.76 Ám
EDAC Inc. 745-067-522-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	67	0.1 "	2.54 mm	Black	Gold	Through Hole	-40 C	105 ░C	1	Copper Alloy	67	Cantilever	Press-Fit	Female	30 Áin	0.76 Ám
EDAC Inc. 745-067-520-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	67	0.1 "	2.54 mm	Black	Gold	Through Hole	-40 C	105 ░C	1	Copper Alloy	67	Cantilever	Press-Fit	Female	30 Áin	0.76 Ám
