XMAR Series

Catalog

CONN RCPT HSG 3POS 2.50MM

Part	Note	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Insulation Material	Connector Type	Number of Rows	Fastening Type	Color	Contact Termination	Contact Type	Number of Positions

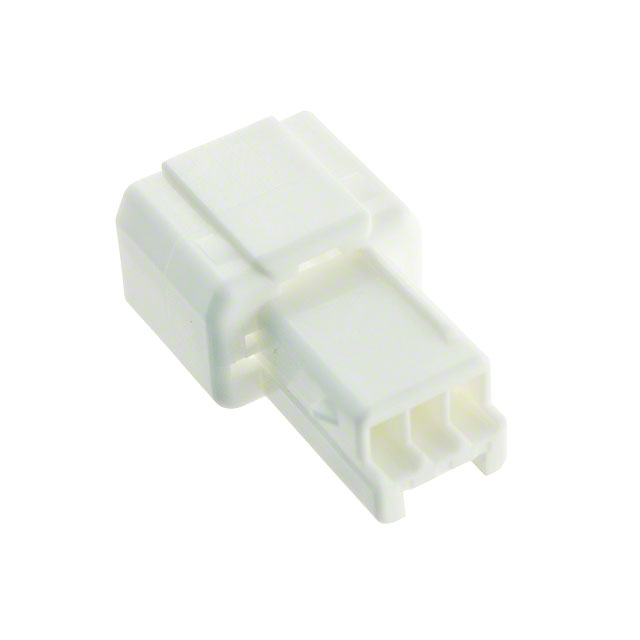

JST Sales America Inc. XMAR-03VF-1-S(N)	Contacts Not Included	2.5 mm	0.098 in	85 °C	-25 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	1	Latch Holder	White	Crimp	Male Pin
JST Sales America Inc. XMAR-02VF-1-S	Contacts Not Included	2.5 mm	0.098 in	85 °C	-25 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	1	Latch Holder	White	Crimp	Male Pin	2

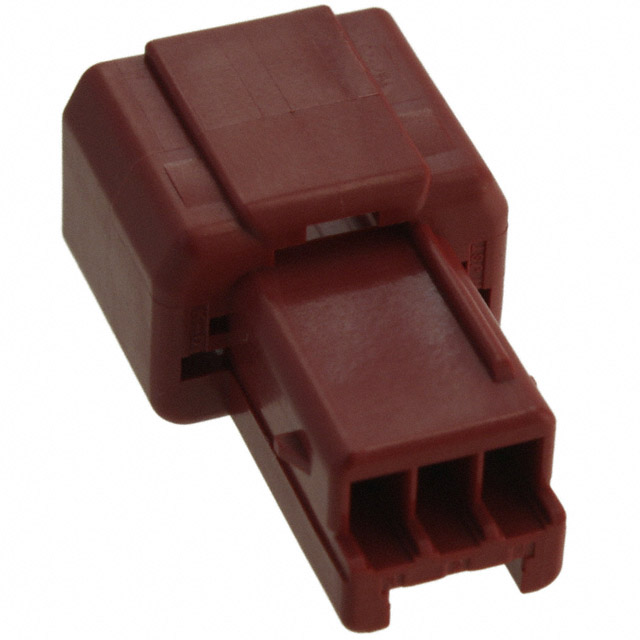

JST Sales America Inc. XMAR-03VF-2-R	Contacts Not Included	2.5 mm	0.098 in	85 °C	-25 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	1	Latch Holder	Red	Crimp	Male Pin

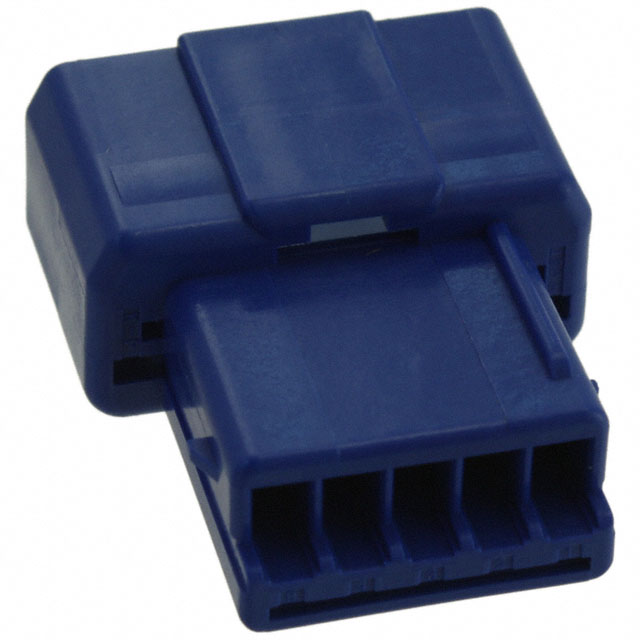

JST Sales America Inc. XMAR-05VF-E	Contacts Not Included	2.5 mm	0.098 in	85 °C	-25 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	1	Latch Holder	Blue	Crimp	Male Pin	5

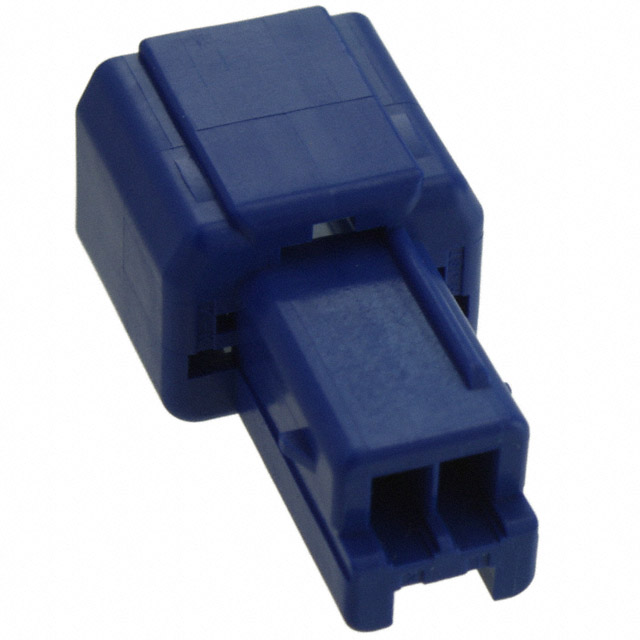

JST Sales America Inc. XMAR-02VF-3-E	Contacts Not Included	2.5 mm	0.098 in	85 °C	-25 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	1	Latch Holder	Blue	Crimp	Male Pin	2

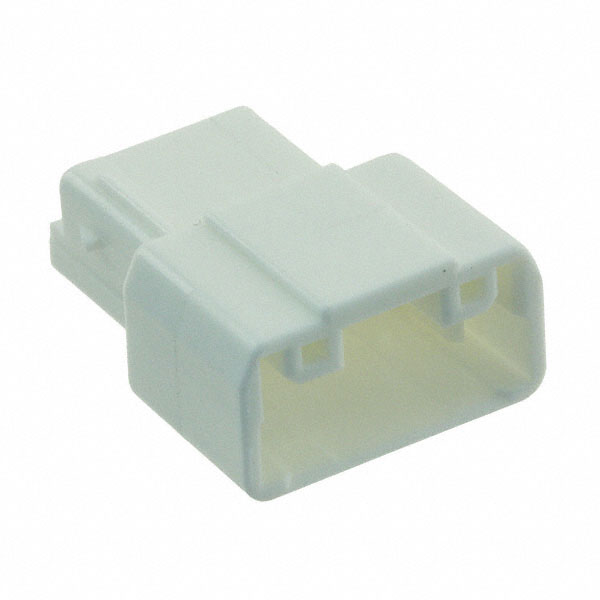

JST Sales America Inc. XMAR-04VF-S	Contacts Not Included	2.5 mm	0.098 in	85 °C	-25 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	1	Latch Holder	White	Crimp	Male Pin	4

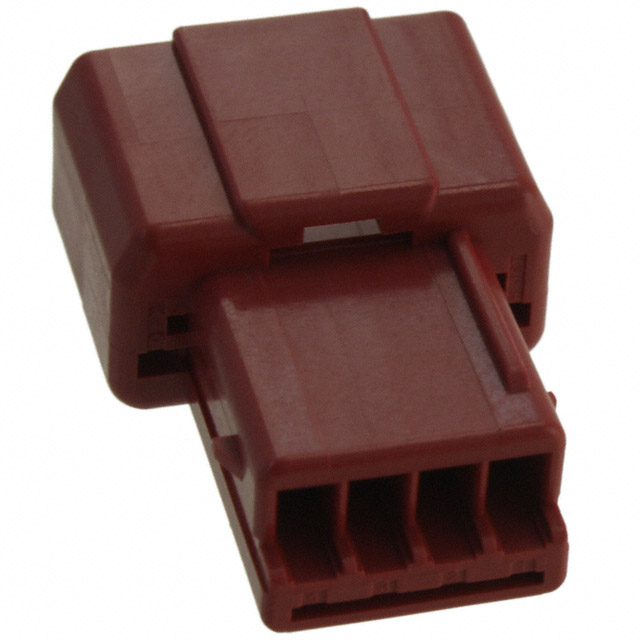

JST Sales America Inc. XMAR-04VF-R	Contacts Not Included	2.5 mm	0.098 in	85 °C	-25 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	1	Latch Holder	Red	Crimp	Male Pin	4

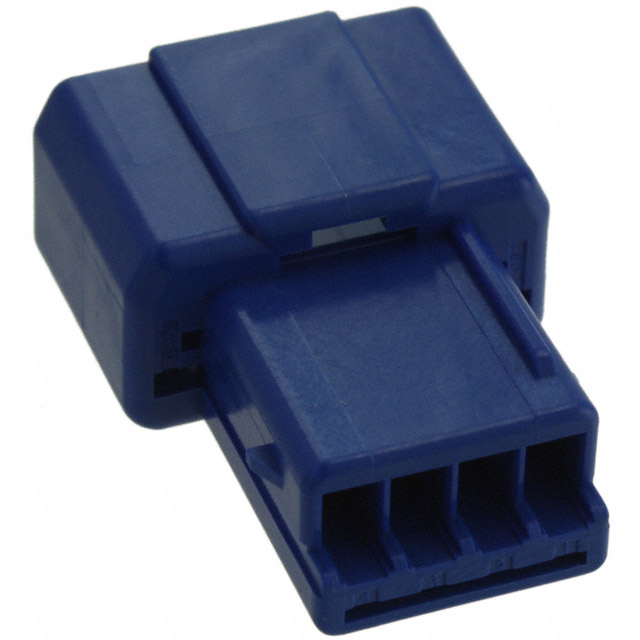

JST Sales America Inc. XMAR-04VF-E(N)	Contacts Not Included	2.5 mm	0.098 in	85 °C	-25 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	1	Latch Holder	Blue	Crimp	Male Pin	4

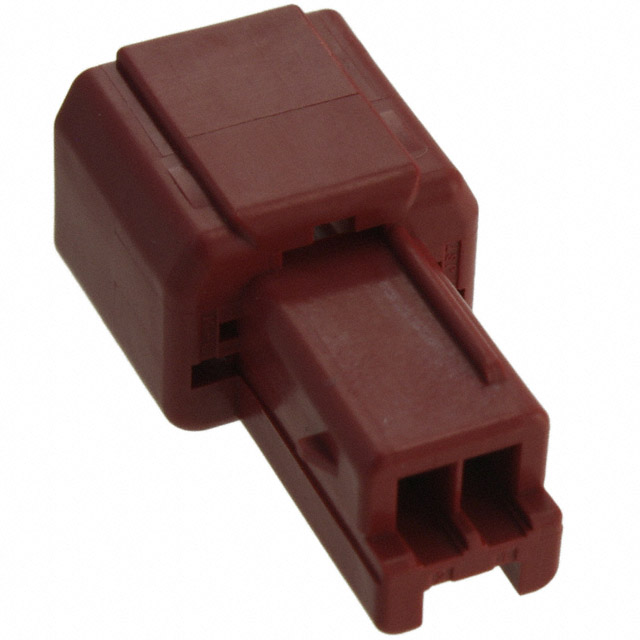

JST Sales America Inc. XMAR-02VF-2-R	Contacts Not Included	2.5 mm	0.098 in	85 °C	-25 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	1	Latch Holder	Red	Crimp	Male Pin	2

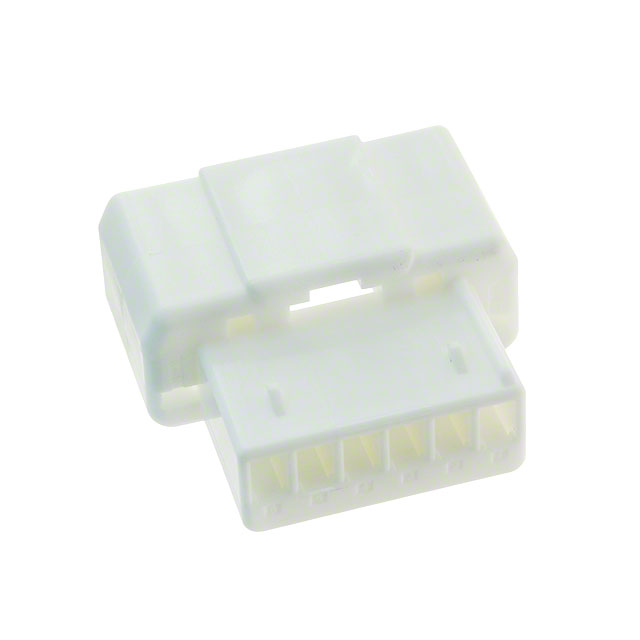

JST Sales America Inc. XMAR-06VF-S	Contacts Not Included	2.5 mm	0.098 in	85 °C	-25 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	1	Latch Holder	White	Crimp	Male Pin	6
