VLMY51 Series
Manufacturer: Vishay Semiconductor Opto Division
Beta
⌘K

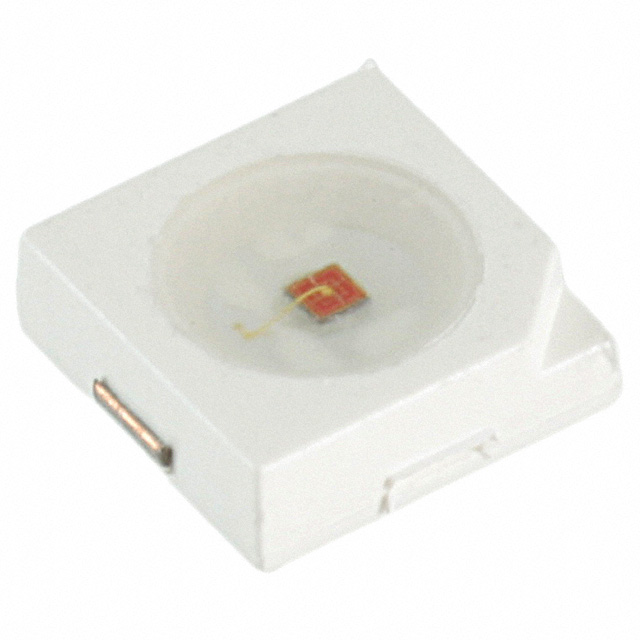

LED YELLOW 590NM 2PLCC
| Part | Thermal Resistance of Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Voltage - Forward (Vf) (Typ) | Color | Wavelength | Package / Case | Supplier Device Package | Viewing Angle | Lumens/Watt @ Current - Test | Temperature - Test | Luminous Flux @ Current/Temperature | Current - Test | Current - Max [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Semiconductor Opto Division | 50 °C/W | 0.055 in | 1.4 mm | 2.2 V | Yellow | 590 nm | 1414 (3535 Metric) | 2-PLCC | 120 ° | 65 lm/W | 25 °C | 20 lm | 140 mA | 200 mA | 0.138 in | 0.138 in | 3.5 mm | 3.5 mm | Surface Mount |
