51S106 Series
Manufacturer: Rosenberger
Beta
⌘K

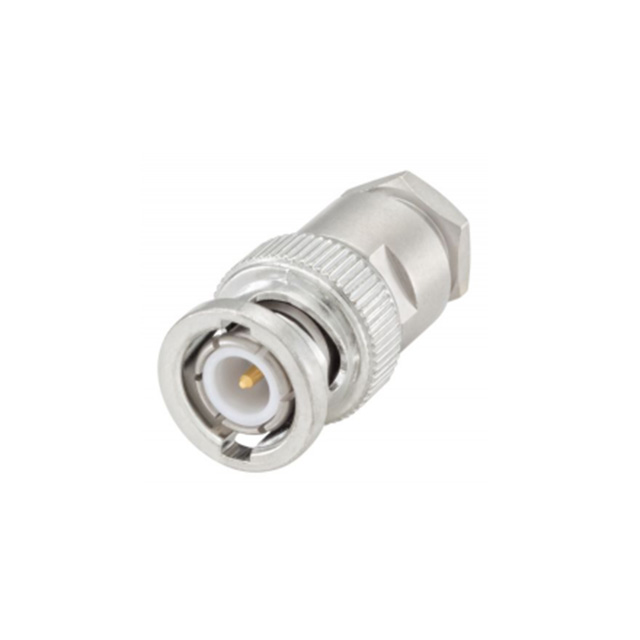

CONN BNC PLUG STR 50OHM SOLDER
| Part | Center Contact Plating | Body Material | Voltage Rating | Includes | Dielectric Material | Mating Cycles | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Housing Color | Impedance | Contact Termination | Cable Group | Number of Ports | Center Contact Material | Shield Termination | Connector Style | Frequency - Max [Max] | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | Brass | 400 V | 1 Connector 1 Contact 1 Gasket 1 Nut 1 Washer 2 Clamps 2 Insulators | Polytetrafluoroethylene (PTFE) | 500 | White Bronze | 155 C | -55 C | Plug Male Pin | Silver | 50 Ohms | Solder | 141 RG-58C | 1 | Brass | Clamp | BNC | 10 GHz | Free Hanging (In-Line) | Bayonet Lock |
