WR95E1500 Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 18W

Part	Region Utilized	No Load Power Consumption	Output Connector [diameter]	Output Connector	Output Connector [x]	Polarization	Input Connector	Form	Cord Length	Cord Length	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Efficiency	Applications	Current - Output (Max) [Max]	Standard Number	Input Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]

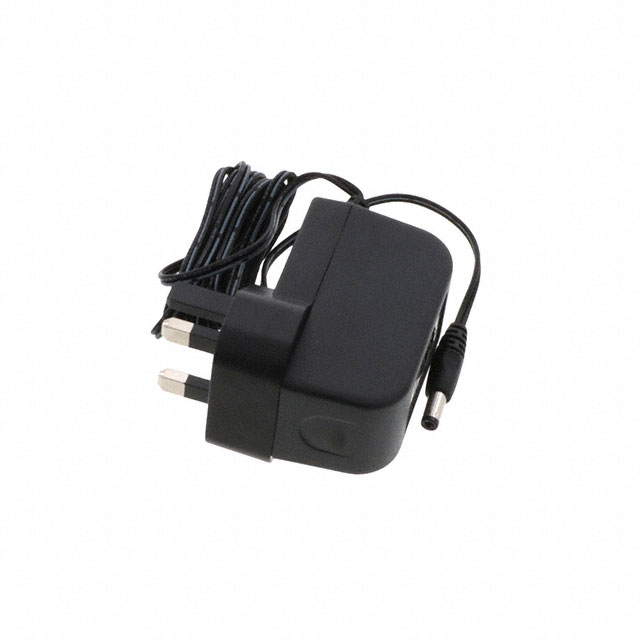

GlobTek, Inc. WR95E1500LCP-F(R6B)	United Kingdom	75 mW	2.5 mm 5.5 mm	Barrel Plug	11 mm	Positive Center	BS 1363	Wall Mount	1.5 m	59 in	12 V	264 VAC	90 VAC	40 °C	0 °C	CE EAC LPS SIQ UkrSEPRO	Level VI	ITE (Commercial)	1.5 A	60950-1	Fixed Blade	18 W	2.13 in	73.5 mm	1.96 "	54 mm	49.9 mm	2.89 in

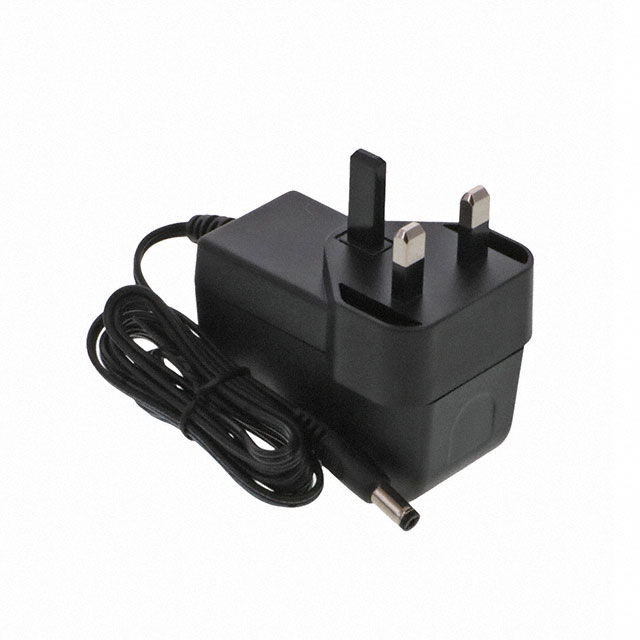

GlobTek, Inc. WR95E1500CCP-F(R6B)	United Kingdom	75 mW	2.1 mm 5.5 mm	Barrel Plug	11 mm	Positive Center	BS 1363	Wall Mount	1.53 m	60.2 in	12 V	264 VAC	90 VAC	40 °C	0 °C	CE EAC LPS SIQ UkrSEPRO	Level VI	ITE (Commercial)	1.5 A	60950-1	Fixed Blade	18 W	2.13 in	73.5 mm	1.96 "	54 mm	49.9 mm	2.89 in
